Commit failure with Global Protect portal "Auth setting is invalid: no username field is configured in certificate profile"
20837
Created On 07/30/21 18:30 PM - Last Modified 09/07/22 22:34 PM
Symptom

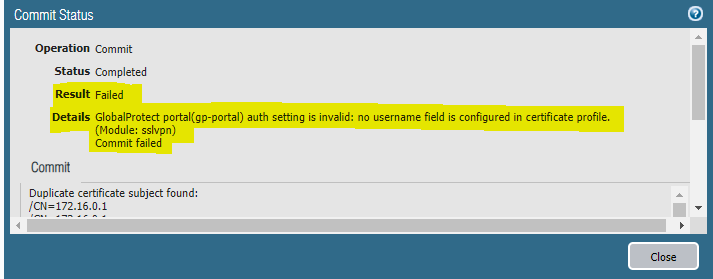

- Commit failure with the error as below: "auth setting is invalid: no username field is configured in certificate profile."
- Certificate profile not containing the username field value set.
Environment
- GlobalProtect Portal Authentication
- Prisma Access for Mobile users
- User Credentials + Certificate Authentication
Cause
- When the GP user authentication is configured using both the User Credentials as well as Client Certificate with the option below, the username field in certificate profile is expected to be set.
Resolution

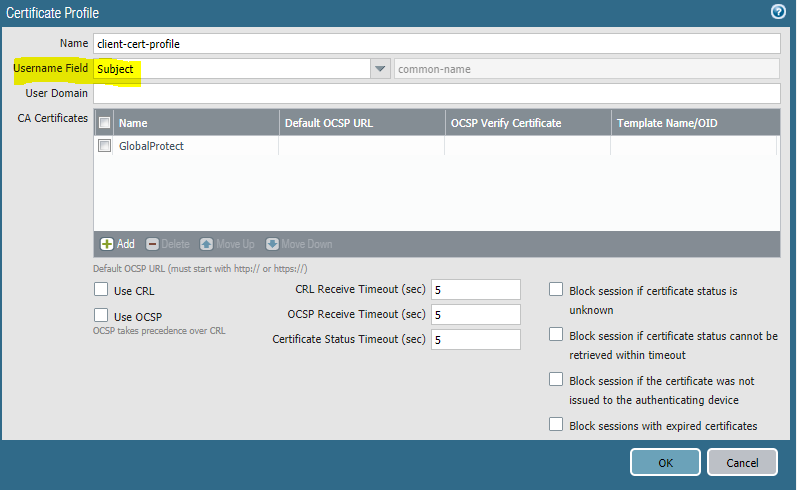

- Configure the Username Field on the certificate profile to either "Subject" or "Subject Alt"
- Device > Certificate Management > Certificate Profile > Username
- Click OK
- Commit changes
Additional Information
- Please check link for Mixed Authentication Method Support for Certificates or User Credentials.
- Another workaround is to use the authentication profile with option No (User Credentials AND Client Certificate Required)
- For the above configuration, All the users need to have a certificate otherwise they would not be able to connect
