CSR generated with ”Block Private Key Export” checked allows “Export Private Key” when the signed cert is reimported back

CSR generated with ”Block Private Key Export” checked allows “Export Private Key” when the signed cert is reimported back

10251
Created On 07/27/21 12:45 PM - Last Modified 04/22/24 20:29 PM


Symptom


  • CSR (Certificate Signing Request) is generated on Panorama with ”Block Private Key Export” box checked.
  • After the CSR has been signed by a CA, and the certificate is reimported into Panorama, we see that the private key is exportable.

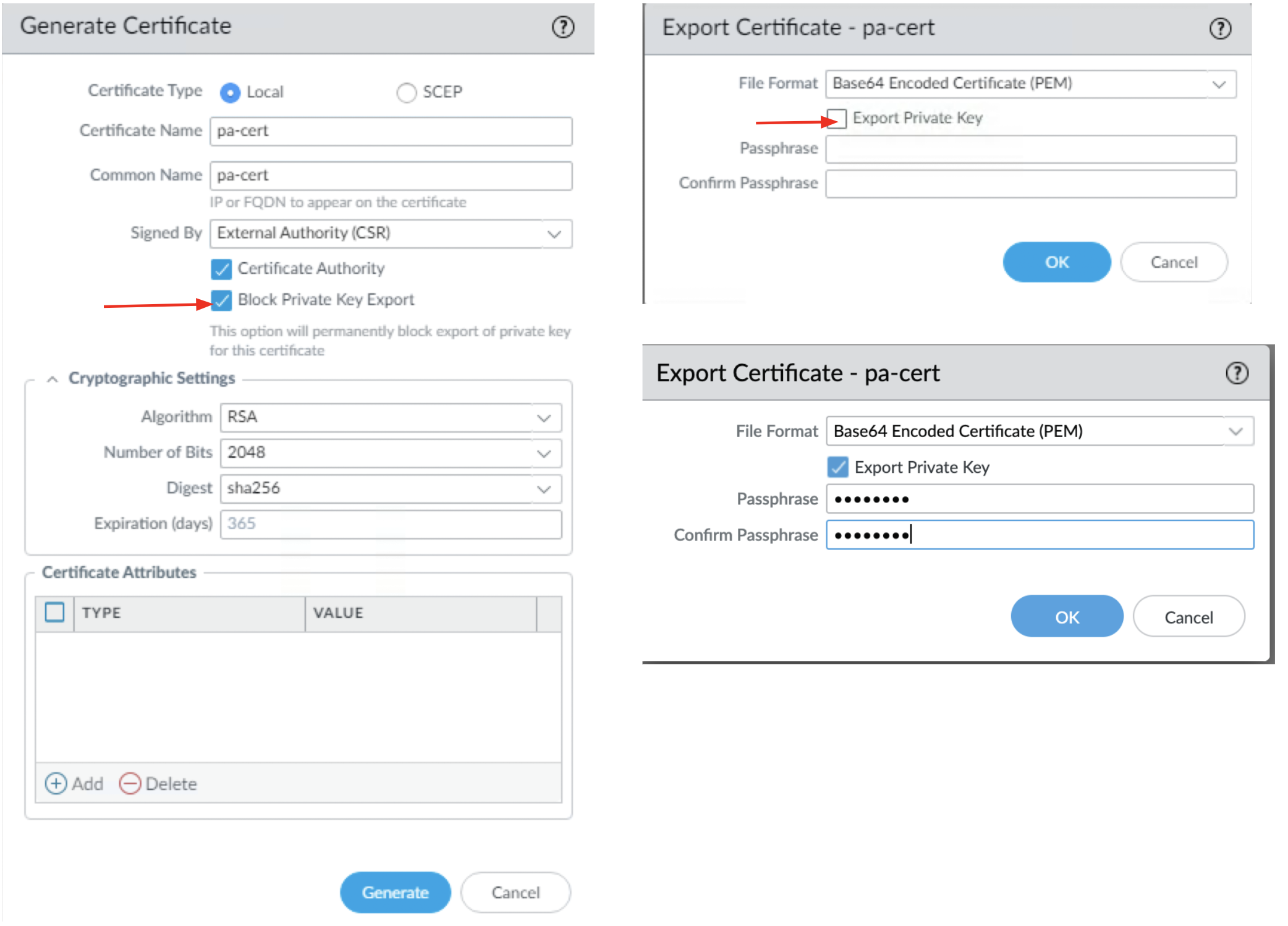

CSR creation with Block Private Key Export allows key export for signed cert


Note: The behavior is also same on the Palo Alto Firewalls.

Environment


  • Palo Alto Firewall or  Panorama.
  • PanOS 10.0.5

Cause


The "Block Private Key Export" functionality for Certificate Signing Requests (CSRs) generated from PAN-OS signed by a third party and re-imported back into PAN-OS is not available in PAN-OS 10.0 and will be added in future releases. ETA is yet to be decided.



Resolution


The following steps are the workaround to enable 'block private key export' for the Panorama (or Firewall) generated CSR that is signed by a CA.

  1. Generate a CSR certificate on the device with 'block private key' enabled
  2. Export the certificate
  3. Get the certificate signed by a CA
  4. Import the certificate back with the same name
  5. Export the certificate again along with the private key
  6. Now Import the certificate back with the same name but this time ensure that you check 'block private key' on the certificate
  7. The imported certificate will have the private key blocked and you should be able to export the key anymore.
