日志转发到CDL由于区域配置不正确而无法工作

日志转发到CDL由于区域配置不正确而无法工作

16875
Created On 06/04/21 09:34 AM - Last Modified 05/15/23 09:35 AM


Symptom


  • 棱镜firewall没有连接到CDL受体因此日志不被转发。
admin@GPGW_XXXXX_netherlands-central_> show logging-status

-----------------------------------------------------------------------------------------------------------------------------
      Type      Last Log Created        Last Log Fwded       Last Seq Num Fwded  Last Seq Num Acked         Total Logs Fwded
-----------------------------------------------------------------------------------------------------------------------------
> CMS 0
        Not Sending to CMS 0
> CMS 1
        Not Sending to CMS 1

>Log Collection Service
'Log Collection log forwarding agent' is active but not connected <<<<<


    config         Not Available         Not Available                        0                   0                        0
    system         Not Available         Not Available                        0                   0                        0
    threat         Not Available         Not Available                        0                   0                        0
   traffic         Not Available         Not Available                        0                   0                        0
.....(Output Omitted)....
如果日志转发代理是积极的和未连接，这意味着firewall可能没有连接所需的 FQDN/终结点。
  • 云端正确抓取客户信息firewall:
admin@GPGW_XXXXX_netherlands-central_> request logging-service-forwarding customerinfo show

Ingest endpoint: 0d5cc924-4234-44af-9359-48b87fb061c3.in2-lc-prod-eu.gpcloudservice.com
Query endpoint: 0d5cc924-4234-44af-9359-48b87fb061c3.api2-lc-prod-eu.gpcloudservice.com:444
Customer ID: <removed>
Region : europe
  • 证书也存在于firewall并且有效：
admin@GPGW_XXXXX_netherlands-central_> request logging-service-forwarding certificate info

Certificate chain verification: OK
Public and private key pair match: Yes

Certificate expired: No

Certificate details:

Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 6085537258678521253 (0x54742be4eaf00da5)
    Signature Algorithm: sha256WithRSAEncryption
        Issuer: CN=Palo Alto Networks Inc.-SJC-Client-Issuing-CA2 G2, O=Palo Alto Networks Inc., C=US
        Validity
            Not Before: May 27 08:45:55 2021 GMT
            Not After : Aug 25 08:45:55 2021 GMT
        Subject: CN=<removed>/serialNumber=7DC00A752A25D8C, OU=Cloud, L=Palo Alto Networks, ST=CA, C=US
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:b1:55:2c:20:ab:86:c5:96:4e:41:65:45:11:c9:
                    00:1b:1e:9e:ca:97:39:fe:db:86:fe:85:74:8e:d3:
                    1f:9a:3c:5b:e5:de:3b:6a:01:41:19:b3:67:74:51:
                    e5:45:20:be:7f:b1:1e:64:b1:5f:b6:26:36:d6:65:
                    24:43:8a:e1:04:8d:1e:e2:84:24:f8:0b:4a:2d:53:
                    e1:e7:68:72:14:6c:66:71:99:a2:61:66:23:df:7e:
                    d5:e4:ee:d7:fa:24:c7:03:85:57:3d:7a:28:1a:62:
                    a7:78:02:97:2a:c1:02:78:b7:8c:fe:e1:06:a0:61:
                    a9:b4:f5:2f:d6:41:ee:81:26:ae:86:01:18:20:13:
                    9b:c9:38:2d:4e:57:a6:c1:ab:3c:ab:6e:da:ce:18:
                    2b:37:76:fd:84:1c:b2:66:b5:1a:dc:c9:9b:b0:47:
                    9b:20:9c:8f:bb:00:cf:69:d9:13:ce:a7:63:27:82:
                    1b:f3:29:b1:45:4b:83:88:e5:32:36:08:d5:4e:bb:
                    ca:2e:c9:a3:a4:dd:c8:34:e1:ad:35:1a:ba:01:0f:
                    f4:c2:28:be:29:e6:be:a4:a9:6c:63:e5:54:6c:5c:
                    da:f0:6c:70:a4:93:3a:fa:73:33:70:7b:9f:22:8b:
                    cc:06:44:7d:57:b3:4d:fe:09:e0:d9:b1:1a:21:ae:
                    15:35
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Basic Constraints: critical
                CA:FALSE
            X509v3 Authority Key Identifier:
                keyid:CA:1B:6B:CC:69:86:51:74:11:6D:93:F9:F8:DF:E2:A1:D9:4D:26:9B

            Authority Information Access:
                CA Issuers - URI:https://crl.paloaltonetworks.com/pan-client-issuing-sjc-ca2-g2.crt
                OCSP - URI:http://ocsp.paloaltonetworks.com/ocsp

            X509v3 Certificate Policies:
                Policy: 1.3.6.1.4.1.25461.3.2.3.4

            X509v3 Extended Key Usage:
                TLS Web Client Authentication
            X509v3 CRL Distribution Points:

                Full Name:
                  URI:http://crl.paloaltonetworks.com/pan-client-issuing-sjc-ca2-g2.crl

            X509v3 Subject Key Identifier:
                38:EA:B5:68:38:E3:8A:C4:72:6B:67:11:48:C6:19:13:FB:0A:AC:D9
            X509v3 Key Usage: critical
                Digital Signature, Key Encipherment
    Signature Algorithm: sha256WithRSAEncryption
         2b:d7:ab:7a:94:3f:08:56:2a:cd:78:44:a8:d4:b7:91:90:a1:
         09:5e:48:52:4c:67:a4:3f:3f:09:90:9b:71:e1:b2:53:a2:9c:
         b4:74:ab:10:47:d4:6e:2d:e1:8f:20:a5:2b:02:95:8b:89:97:
         39:f3:0c:06:55:d8:43:96:e0:6c:d7:22:93:62:1b:f0:00:62:
..........
         c8:40:04:c0:aa:59:a5:f2:e6:87:67:2a:87:18:2e:b3:e0:7a:
         1c:0c:01:e4:88:6f:6d:de:b7:3e:a1:30:7c:4f:6f:5a:13:2a:
         ce:f4:41:ee:21:e1:74:13:c3:db:a7:b4:24:bd:68:c1:ee:b2:
         71:77:d7:28:f0:99:41:ba:a0:2e:00:fc:53:ae:41:05:ed:3e:
         bd:c4:f2:b8:e4:ad:5d:10:f9:e6:ae:f6:fa:c7:e8:d4:be:f1:
         60:7b:8f:ab:31:0f:02:ab:7c:d9:9b:72:b1:60:87:30:8a:4c:
         95:13:06:d7:39:9a

Successfully fetch LCaaS certificate info
  • 在日志 (更少的 mp-log ms.log )可以看到错误：
2021-06-04 10:03:34.700 +0200 Error:  _setup_tcp_conn_info(src_panos/lcs_agent.c:594): Error getting iplist for address:  fqdn: (null) port:3978



  • 在 logrcvr.log (少 mp-log logrcvr.log)可以看到指示首选项列表有问题的错误
2021-05-27 01:51:31.307 -0700 ------------ PHASE2 ------------
2021-05-27 01:51:31.307 -0700 pan_nf_update_config_cache()
2021-05-27 01:51:31.307 -0700 Error:  pan_logrcvr_lc_sroute_changed(pan_logrcvr_parser.c:788): Could not find entry for panorama-log-forwarding
2021-05-27 01:51:31.307 -0700 Error:  pan_logrcvr_lc_sroute_changed(pan_logrcvr_parser.c:788): Could not find entry for paloalto_updates
2021-05-27 01:51:31.307 -0700 config phase 2: update url_cache_timeout from 0 to 5
2021-05-27 01:51:31.307 -0700 Collector preference list does not exist /opt/pancfg/mgmt/global/lcaas-pref.xml
2021-05-27 01:51:31.307 -0700 Error:  _load_pref_list_and_connect(pan_rlog_fwd.c:4057): Error parsing the destination LCs preference list
2021-05-27 01:51:31.307 -0700 Collector preference list does not exist /opt/pancfg/mgmt/global/lcaas-pref.xml
2021-05-27 01:51:31.307 -0700 Error:  _load_pref_list_and_connect(pan_rlog_fwd.c:4057): Error parsing the destination LCs preference list
2021-05-27 01:51:31.307 -0700 ------------ PHASE2 ends with result:1 ------------
2021-05-27 01:51:33.358 -0700 Updating logrcvr with the latest "hostname" info: PA-VM
2021-05-27 01:51:35.513 -0700 FQDN::unregistering 0 FQDNs not used anymore ...
2021-05-27 01:51:35.513 -0700 FQDN::registering 0 new FQDNs ...
2021-05-27 01:51:40.242 -0700 Loading PaloAltoNetworks URL categories...

Environment


  • Prisma Access Firewall
  • Cortex 数据湖（CDL )
  • 日志转发

Cause


下一步可以检查显示的偏好列表FQDN（无效的）：
admin@GPGW_XXXXX_netherlands-central_> show log-collector preference-list

Logging Service Preference List
Forward to all: Yes
Serial Number: PANW_LOG_RECEPTOR_SRV FQDN: (null)

如果你检查firewalllogging service配置使用“ > 显示配置合并" 命令显示区域美洲而客户信息显示区域欧洲
setting {
            logging {
              enhanced-application-logging {
                enable yes;
              }
              logging-service-forwarding {
                logging-service-regions americas;
                enable yes;
              }
            }
Panorama 运行配置确认该区域设置为美洲在下面服务连接模板
      <template>
        <entry name="Service_Conn_Template">
          <settings>
            <default-vsys>vsys1</default-vsys>
          </settings>
          <description>Service Connection Template (Use the Cloud Services plugin to edit)</description>
          <config>
            <devices>
              <entry name="localhost.localdomain">
                <vsys>
                  <entry name="vsys1"/>
                </vsys>
                <deviceconfig>
                  <setting>
                    <logging>
                      <logging-service-forwarding>
                        <logging-service-regions>americas</logging-service-regions>
                        <enable>yes</enable>
                      </logging-service-forwarding>
                    </logging>
                  </setting>



Resolution


要解决此问题，应将区域设置为与客户信息中的区域相匹配。 您可以从更改区域Panorama要么通过CLI或者GUI:

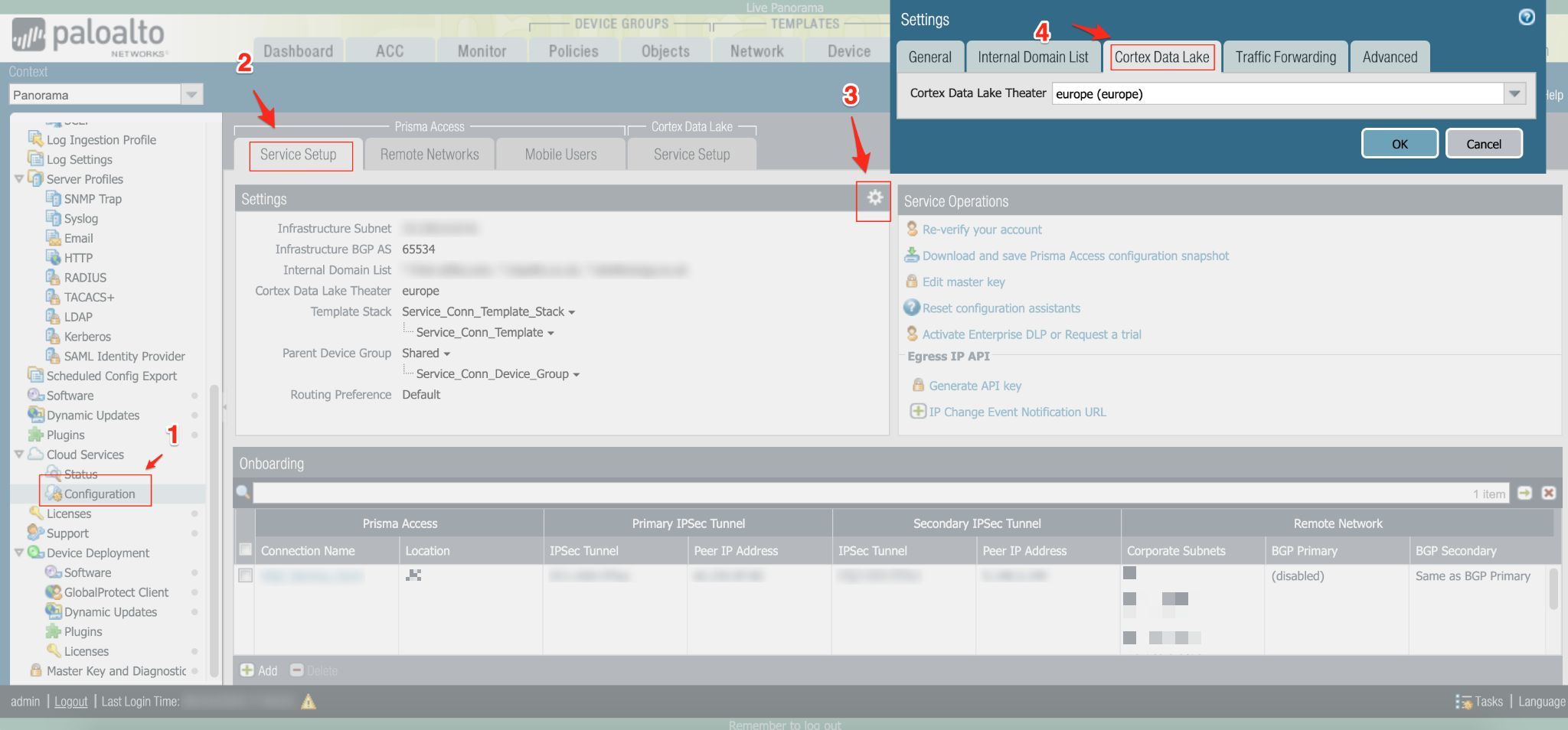

选项1：

用户添加的图像

选项 2：

在执行以下步骤之前，请确保所有配置更改都已提交并推送到Panorama.

  1. 连接到Panorama通过SSH.
  2. 使用以下命令进入配置模式：
> configure
  1. 运行以下命令：
set template Service_Conn_Template config deviceconfig setting logging logging-service-forwarding logging-service-regions europe
  1. 使用以下命令退出配置模式：
> exit
  1. 去PanoramaGUI然后提交并推送配置更改为 Prisma Access

Additional Information


分析日志和logrcvr.log日志文件使用 cli 命令：

>less mp 日志 ms.log
>less mp 日志 logrcvr.log
