HIP match log details show broken image under "Severity" for missing patches.
11465
Created On 05/07/21 15:41 PM - Last Modified 04/23/24 01:56 AM
Symptom

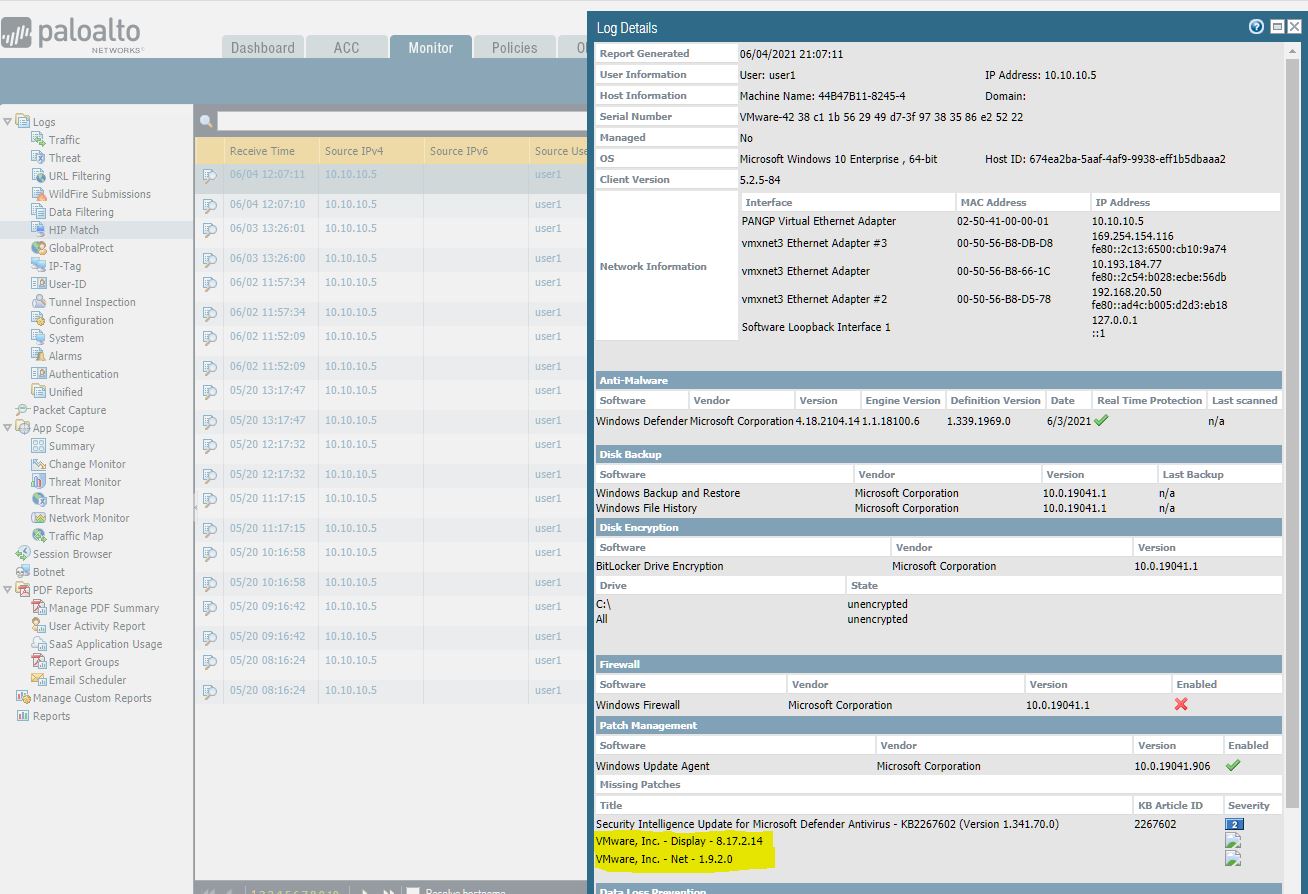

When navigating to Monitor> HIP match> click on the magnifying glass for 'Log Details', the 'Missing Patches' severity column shows broken images.
Environment
- GlobalProtect
- PAN-OS 8.1, 9.0, 9.1
- HIP - missing patches
Cause

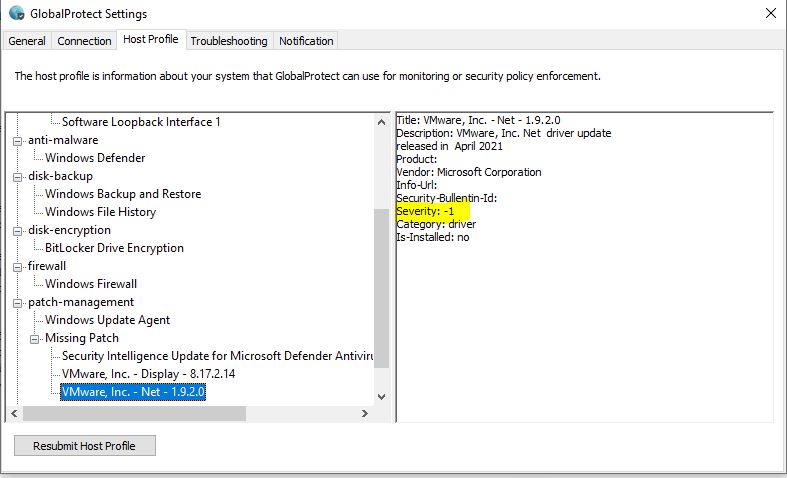

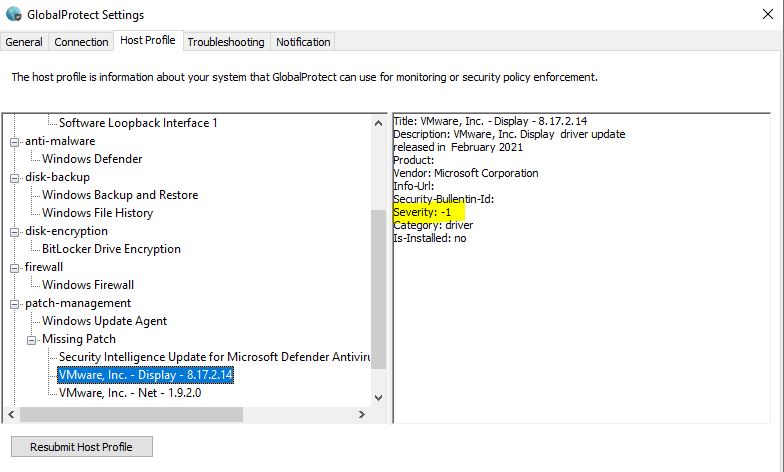

The broken images are due to an unsupported severity value on PAN-OS which is "-1". This value means 'unknown' which means the missing patch doesn't specify a severity level. Values such as the severity level are collected by OPSWAT (a third-party security tool used to collect HIP data on client devices).
Resolution
PAN-OS only supports values 0 through 3, please refer to HIP Objects Patch Management Tab.
Microsoft is using the severity naming: "Low", "Moderate", "Important" and "Critical" per
https://technet.microsoft.com/en-us/security/gg309177.aspx
Severity level is assigned to Security and Critical updates : Severity Level
Opswat severity Mappings :
0 - Low
1 - Moderate
2 - Important
3 - Critical
