Global Protect ne se connecte pas mais IPSEC peut se connecter SSL

Global Protect ne se connecte pas mais IPSEC peut se connecter SSL

28365
Created On 05/06/21 09:26 AM - Last Modified 03/03/23 01:57 AM


Symptom


  • La connexion de protection globale se produit correctement à l’aide du SSL protocole, mais pas le .IPSEC
  • Tous les utilisateurs sont concernés.
  • Lorsque la règle nat source est désactivée, GP sur IPSEC Works.

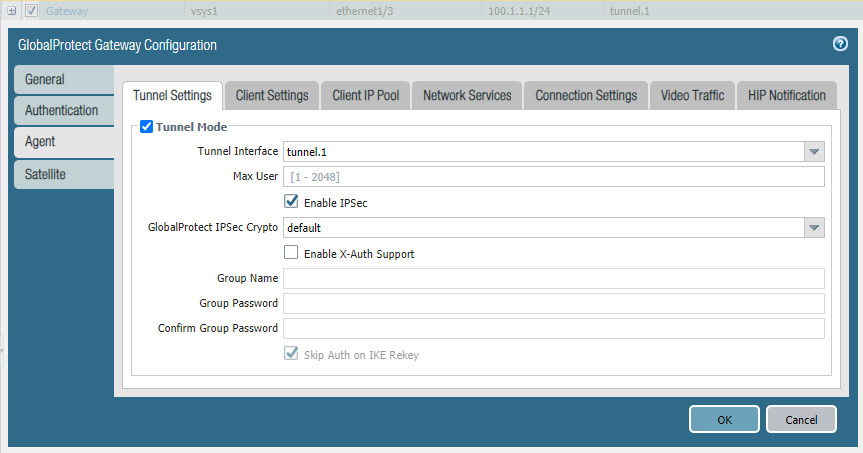

  • IPSEC est activé dans la configuration de la GP passerelle.
Image ajoutée par l'utilisateur
  • Dans PanGPS.log la raison IPSEC de l’échec est que keep-alive n’a pas été reçu et que l’agent a démarré SSL la connexion à la place
(T12928)Debug( 559): 05/07/21 09:50:16:624 Network is reachable
(T12928)Info ( 178): 05/07/21 09:50:16:624 Connected to: 100.1.1.1[4501], Sending keep alive to ipsec socket...
(T12928)Debug( 278): 05/07/21 09:50:16:640 IPSec tunnel receive failed with error 10054(An existing connection was forcibly closed by the remote host.)
(T12928)Info ( 199): 05/07/21 09:50:16:640 failed to receive keep alive
(T12928)Info ( 221): 05/07/21 09:50:16:640 failed to receive keep alive
(T12928)Debug( 229): 05/07/21 09:50:16:640 IPSec anti-replay statistics: outside window count 0, replay count 0
(T12928)Debug( 231): 05/07/21 09:50:16:640 Disconnect udp socket
(T12928)Info ( 353): 05/07/21 09:50:16:640 Connecting to 100.1.1.1 failed
(T12928)Info ( 268): 05/07/21 09:50:16:640 Start vpn do_connect() failed
(T12928)Debug( 325): 05/07/21 09:50:16:640 tunnel statistics: send bytes(0) packets(0) errors(0) drops(0) queue-size(0), recv bytes(0) packets(0) errors(0) drops(0) queue-size(0)
(T12928)Debug( 327): 05/07/21 09:50:16:640 do_disconnect is called in VPN stop
(T12928)Debug( 660): 05/07/21 09:50:16:640 ipsec failed to start
(T12928)Info ( 100): 05/07/21 09:50:16:640 VPN is deleted
(T12928)Debug( 169): 05/07/21 09:50:16:640 VPN idle timeout is 10800; config timeout is 10800
(T12928)Debug( 217): 05/07/21 09:50:16:640 EnforceDns is enabled, set 2 GP pushed DNS servers
(T12928)Debug(  65): 05/07/21 09:50:16:640 Trying to do SSL connection to 100.1.1.1(443)
(T12928)Debug( 780): 05/07/21 09:50:16:640 SSL connecting to 100.1.1.1
(T12928)Debug( 487): 05/07/21 09:50:16:640 socket send buffer old size is 65536
(T12928)Debug( 511): 05/07/21 09:50:16:640 socket send buffer new size is 3145728
(T12928)Debug( 559): 05/07/21 09:50:16:640 Network is reachable
(T12928)Debug(1247): 05/07/21 09:50:16:656 Failed to X509_LOOKUP_load_file
(T12928)Debug( 366): 05/07/21 09:50:16:656 Open_SSL_connection: subject '/CN=1001.1.1'
(T12928)Debug( 370): 05/07/21 09:50:16:656 Open_SSL_connection: issuer '/CN=RootCerti'
(T12928)Info ( 113): 05/07/21 09:50:16:656 Connected ssl tunnel to 100.1.1.1(443)
(T12928)Info ( 363): 05/07/21 09:50:16:656 tunnel to 100.1.1.1 connected

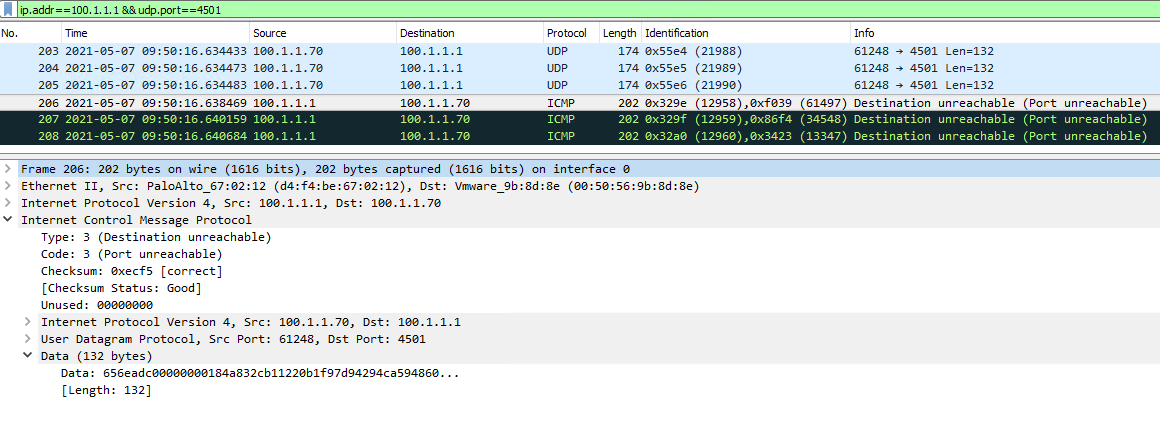

  • La capture de paquets client indique que le client envoie le paquet mais UDP-4501 reçoit le message « Destination inaccessible (Port inaccessible) ». ICMP

NOTE: Si nous vérifions le contenu de ce ICMP paquet de type 3 code 3, nous remarquerons qu’il était en réponse à un paquet complètement différent (ipid est différent IP ). Nous verrons plus tard pourquoi cela s’est produit.

Image ajoutée par l'utilisateur

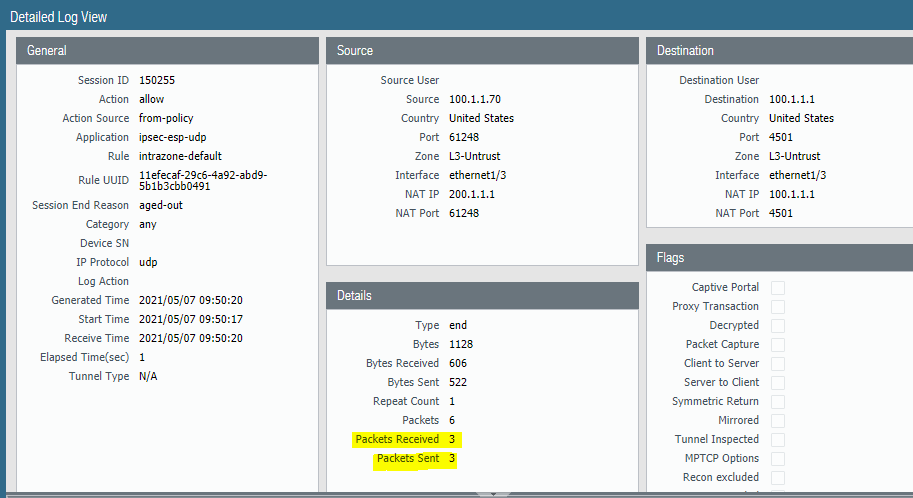

  • La session affiche 3 paquets envoyés et 3 paquets reçus :
Image ajoutée par l'utilisateur
  • Debug/packet_diag lorsqu’il est activé avec « flow basic » et « tunnel flow » montre ce qui suit:
SLOWPATH:
== 2021-05-07 09:50:17.997 +0800 ==
Packet received at slowpath stage, tag 337855482, type ATOMIC
Packet info: len 174 port 18 interface 18 vsys 1
  wqe index 229292 packet 0x0x80000000ed94a0e6, HA: 0, IC: 0
Packet decoded dump:
L2:     00:50:56:9b:8d:8e->d4:f4:be:67:02:12, type 0x0800
IP:     100.1.1.70->100.1.1.1, protocol 17
        version 4, ihl 5, tos 0x00, len 160,
        id 21988, frag_off 0x0000, ttl 128, checksum 6688(0x1a20)
UDP:    sport 61248, dport 4501, len 140, checksum 46727
Session setup: vsys 1
Session setup: ingress interface ethernet1/3 egress interface ethernet1/3 (zone 3)
NAT policy lookup, matched rule index 0
Policy lookup, matched rule index 1,
Allocated new session 150255.
set exclude_video in session 150255 0x80000000d010b180 0 from work 0x80000000e69bd580 0
Rule: index=0 name=test, cfg_pool_idx=16 cfg_fallback_pool_idx=0
NAT Rule: name=test, cfg_pool_idx=16; Session: index=150255, nat_pool_idx=16
Packet matched vsys 1 NAT rule 'test' (index 1),
source translation 100.1.1.70/61248 => 200.1.1.1/61248
Created session, enqueue to install. work 0x80000000e69bd580 exclude_video 0,session 150255 0x80000000d010b180 exclude_video 0
FASTPATH (Paquet intérieur décapsulé):
== 2021-05-07 09:50:17.999 +0800 ==
Packet received at fastpath stage, tag 150255, type ATOMIC
Packet info: len 174 port 18 interface 18 vsys 1
  wqe index 229292 packet 0x0x80000000ed94a0e6, HA: 0, IC: 0
Packet decoded dump:
L2:     00:50:56:9b:8d:8e->d4:f4:be:67:02:12, type 0x0800
IP:     200.1.1.1->100.1.1.1, protocol 17
        version 4, ihl 5, tos 0x00, len 160,
        id 21988, frag_off 0x0000, ttl 128, checksum 46692(0xb664)
UDP:    sport 61248, dport 4501, len 140, checksum 21196
Flow fastpath, session 150255 (set work 0x80000000e69bd580 exclude_video 0 from sp 0x80000000d010b180 exclude_video 0)
2021-05-07 09:50:17.999 +0800  pan_flow_process_fastpath(src/pan_flow_proc.c:3895): SESSION-DSCP: set session DSCP: 0x00
NAT session, run address/port translation
Packet enter NATT tunnel decap stage, session 150255, tunnel 1557
Packet entered tunnel (1557) deapsulation
Packet info: len 174 port 18 interface 18 vsys 1
  wqe index 229292 packet 0x0x80000000ed94a0e6, HA: 0, IC: 0
Packet decoded dump:
L2:     00:50:56:9b:8d:8e->d4:f4:be:67:02:12, type 0x0800
IP:     200.1.1.1->100.1.1.1, protocol 17
        version 4, ihl 5, tos 0x00, len 160,
        id 21988, frag_off 0x0000, ttl 128, checksum 46692(0xb664)
UDP:    sport 61248, dport 4501, len 140, checksum 21196
Doing to esp-decap, tdp:0x800000007f092840
esp-decap. now: 6088436
tp->spec.ipsec_spec. start_time: 6088436, hardtime: 2592000, softtime: 2591967, hardbytes:0, softbytes:0
2021-05-07 09:50:17.999 +0800 debug: pan_ipsec_esp_decap(ipsec/src/pan_ipsec.c:3269): wqe 0x80000000e69bd580 res 0x800000007fce1708 b_exclude_video 0 if_idx_e 18 if_idx_t 263 tid 1557; saddr 200.1.1.1 => daddr 100.1.1.1; tp local addr 100.1.1.1 local spi 505D735F
Packet after esp deapsulation
Packet info: len 98 port 18 interface 18 vsys 1
  wqe index 229292 packet 0x0x80000000ed9360c0, HA: 0, IC: 0
Packet decoded dump:
L2:     00:50:56:9b:8d:8e->d4:f4:be:67:02:12, type 0x0800
IP:     172.16.107.2->100.1.1.1, protocol 1
        version 4, ihl 5, tos 0x00, len 84,
        id 21345, frag_off 0x4000, ttl 64, checksum 27443(0x6b33)
ICMP:   type 8, code 0, checksum 49050, id 21345, seq 1
2021-05-07 09:50:17.999 +0800 debug: pan_ipsec_esp_decap(ipsec/src/pan_ipsec.c:3643): (IPSEC TUNNEL) set work 0x80000000e69bd580 exclude_video to 0
Tunnel decap completed, feed to interface 263
Tunnel inbound msg
== 2021-05-07 09:50:17.999 +0800 ==
Packet received at ingress stage, tag 0, type ORDERED
Packet info: len 98 port 4 interface 263 vsys 1
  wqe index 229292 packet 0x0x80000000ed9360c0, HA: 0, IC: 0
Packet decoded dump:
L2:     00:50:56:9b:8d:8e->d4:f4:be:67:02:12, type 0x0800
IP:     172.16.107.2->100.1.1.1, protocol 1
        version 4, ihl 5, tos 0x00, len 84,
        id 21345, frag_off 0x4000, ttl 64, checksum 27443(0x6b33)
ICMP:   type 8, code 0, checksum 49050, id 21345, seq 1
Tunnel inbound. Protocol is ICMP, intercept it
Received icmp packet seq# 21345 from source: 0-0 to destination: 0-0 , is gps2s:no
Packet enters tunnel encap stage, tunnel interface null
Packet entered tunnel (1557) encapsulation
Packet info: len 98 port 4 interface 263 vsys 1
  wqe index 229292 packet 0x0x80000000ed9360c0, HA: 0, IC: 0
Packet decoded dump:
L2:     00:50:56:9b:8d:8e->d4:f4:be:67:02:12, type 0x0800
IP:     100.1.1.1->172.16.107.2, protocol 1
        version 4, ihl 5, tos 0x00, len 84,
        id 17890, frag_off 0x4000, ttl 64, checksum 30898(0x78b2)
ICMP:   type 0, code 0, checksum 51098, id 21345, seq 1
Done esp-encap, tdp:0x800000007f092840, gre_encap:0, natt_encap:1, spi:1701752256, esp seq: 1
NAT session, run address/port translation
Tunnel outbound msg
Forwarding lookup, ingress interface 18
L3 mode, virtual-router 1
Route lookup in virtual-router 1, IP 100.1.1.1
Host route found, forward packet to host
Host service check passed, transmit to control plane
  • Notez que la réponse (type 0, code 0) est générée par la passerelleIP, mais que la recherche de route pour ce paquet se produit pour la GP GP passerelle IP elle-même au lieu du client public IP (ICMPdans ce cas 100.1.1.70)




Environment


  • Tous les Pan-OS pare-feu

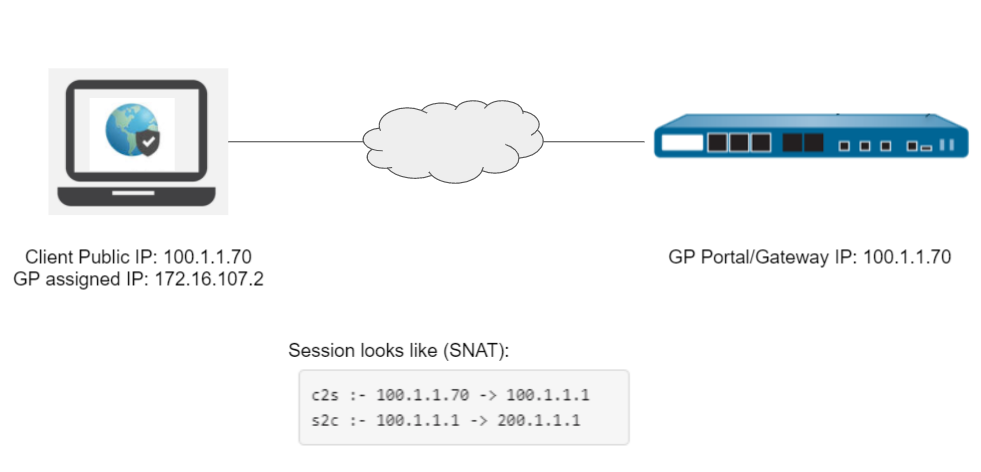

  • Topologie utilisée pour la démonstration dans cet KB article :
Image ajoutée par l'utilisateur


Cause


  • Le problème se produit car firewall ne prend pas en charge l’homologue IP sur firewall lui-même en NAT cas de GP IPSEC ou site à site IPSEC VPN.

Resolution


  • Désactiver NAT la règle pour l’homologue IP (GP client/IPSEC homologue).
