ACC 升级 Panorama 到10.0后报告中断

Panorama 管理升级到 PAN-OS 10.0.x 版本，而日志收集器仍在旧版上运行 PAN-OS （ <10.0.x )version.

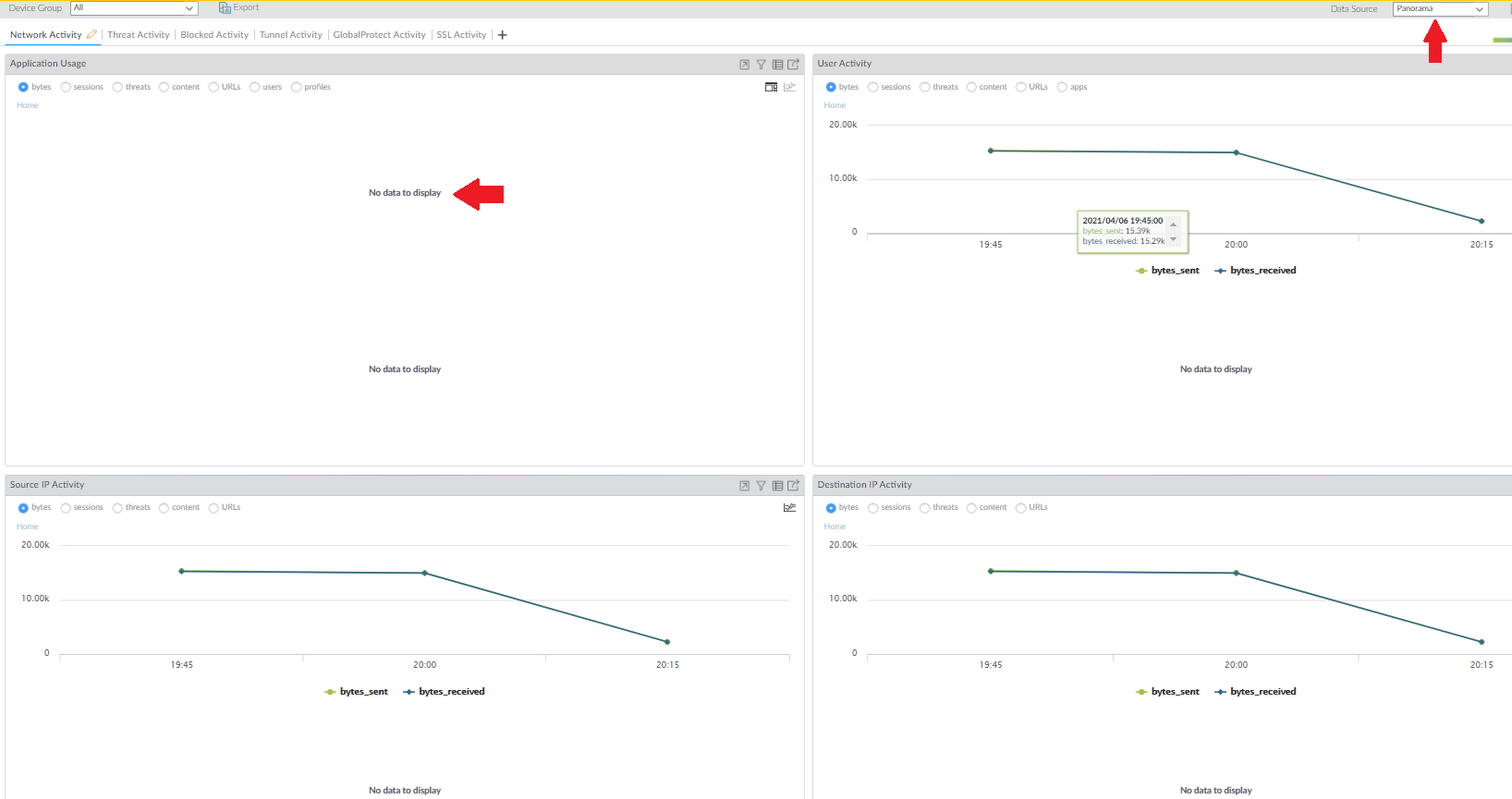

ACC 报告显示"没有数据显示"下的任何小部件可用于例如：应用程序使用，用户活动，源 IP 活动等，虽然显示一些图表。

Panorama 已升级到10.0.x版本，而PanOS防火墙在 <10.0.x version AND
选项卡下选择的数据源 ACC 上运行 Panorama 是"远程设备数据"






在这两种情况下，WebUI 调试都显示，当 Panorama 10.0.x 是 ACC 来自日志收集器或 Firewall <10.0.x, it uses a new report field:  "源配置文件"的投票报告时

<entry name="custom-dynamic-report">
    <start-time>2021/04/06 19:45:00</start-time>
    <end-time>2021/04/06 19:45:00</end-time>
    <no-resolve>yes</no-resolve>
    <widgetName>ACC_Application_Usage</widgetName>
    <widgetType>graph_ext-comp-5460</widgetType>
    <topn>500</topn>
    <type>
      <trsum>
        <aggregate-by>
          <member>category-of-app</member>
          <member>subcategory-of-app</member>
          <member>app</member>
          <member>risk-of-app</member>
        </aggregate-by>
        <values>
          <member>bytes</member>
          <member>sessions</member>
          <member>nthreats</member>
          <member>ncontent</member>
          <member>nurlcount</member>
          <member>nunique-of-users</member>
          <member>nunique-of-src_profile</member>   <<<<<<<<<<<<<<
        </values>
        <sortby>bytes</sortby>
      </trsum>
    </type>
  </entry>

Firewall 毫秒.log显示：

2021-04-06 19:45:00.418 -0800 report job mgr: spawning report thread for 725...2021-04-06 19:45:00.418 -0800 debug: pan_report_handle_generate
(pan_report_handler.c:1490): buffer returned is:
<result>
    <msg>
      <line>Report job enqueued with jobid 725</line>
    </msg>
    <job>725</job>
  </result>
2021-04-06 19:45:00.418 -0800 Report 725 is processed by thread 3240417024
2021-04-06 19:45:00.418 -0800 Report 725 timeout(725) added for 86400 sec
2021-04-06 19:45:00.418 -0800 debug: pan_reportjobmgr_process_reportjob(pan_report_mgr.c:5842): 2021-04-06 19:45:00.418 -0800 debug: pan_reportjobmgr_thread
                         (pan_report_mgr.c:7474): Reportjob manager processing a request from cms
Consumer:list is empty, waiting for reportjobs
2021-04-06 19:45:00.418 -0800 report generation started for 'custom-dynamic-report'
2021-04-06 19:45:00.418 -0800 debug: pan_report_engine_ctxt_destruct(pan_report_mgr.c:11836): pan_report_engine_ctxt_destruct: [In thread: 8510] - The nrefs
                         of rectxt: 0x7fb3eda9e800 is 1
2021-04-06 19:45:00.418 -0800 Error:  _pan_report_results_construct(pan_reports.c:5496): Invalid field name nunique-of-src_profile for aggregation value
2021-04-06 19:45:00.419 -0800 Error:  __pan_report_query(pan_reports.c:9516): Unable to construct a report result structure
2021-04-06 19:45:00.419 -0800 Error:  pan_reportjobmgr_process_cms_request_on_device(pan_report_mgr.c:1403): failed to compute results
2021-04-06 19:45:00.419 -0800 debug: pan_reportmgr_send_jobid_to_cms(pan_report_mgr.c:1542): Sending report jobid 725 to cms
2021-04-06 19:45:00.419 -0800 BATCH: killing non-batch job 725
2021-04-06 19:45:00.419 -0800 BATCH: received request to kill a report 725
2021-04-06 19:45:00.419 -0800 BATCH: schedule to kill report 725, current result_state 0

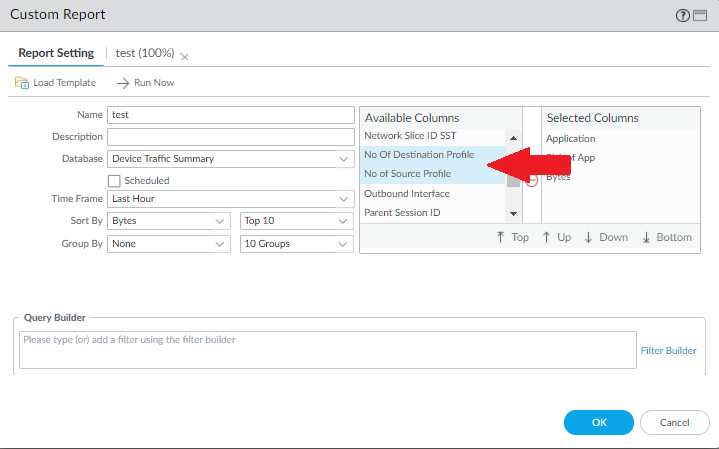

GUI：监控>管理>自定义报告
