QoS Profile Setting Not Getting Applied On A subinterface As Configured
12977
Created On 03/30/21 17:07 PM - Last Modified 12/16/21 00:03 AM
Symptom
- Configured QoS profile and applied it to subinterface but it seems not working

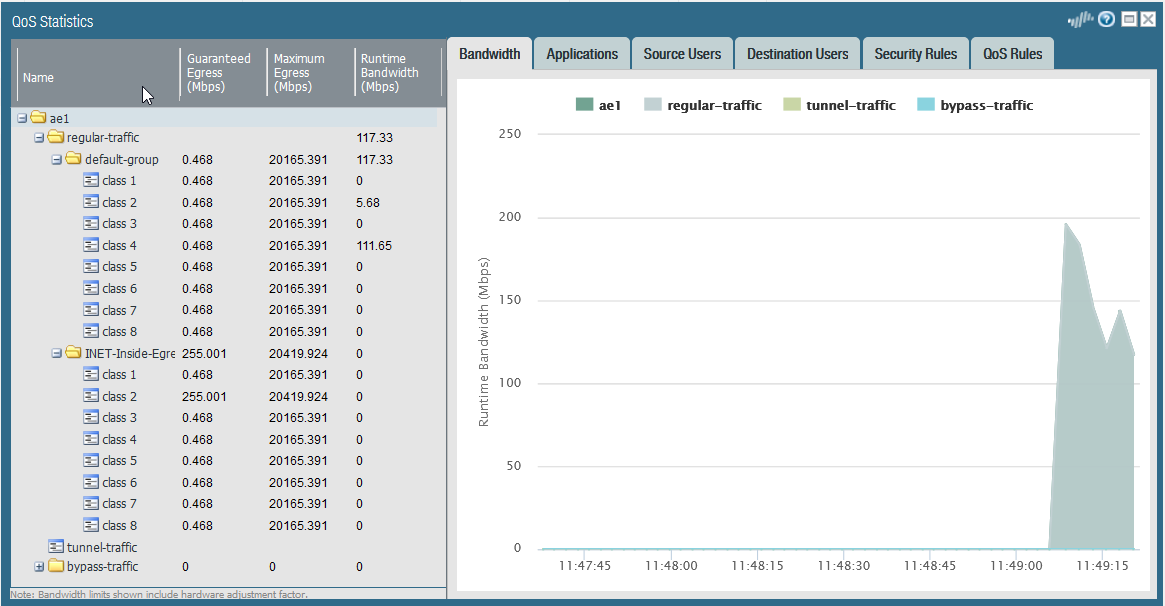

- The traffic is still showing on the default profile (regular-traffic) and not the INET-inside-Egress profile shown below
Environment
- PA-3200 Series
- PA-5200 Series
- PA-7000 Series
- QoS Configured on Subinterface
Cause
(
PA-3200 Series, PA-5200 Series, PA-7000 Series only
) You must also select a destination interface when configuring a QoS policy rule if the rule is applied to a specific subinterface.Resolution

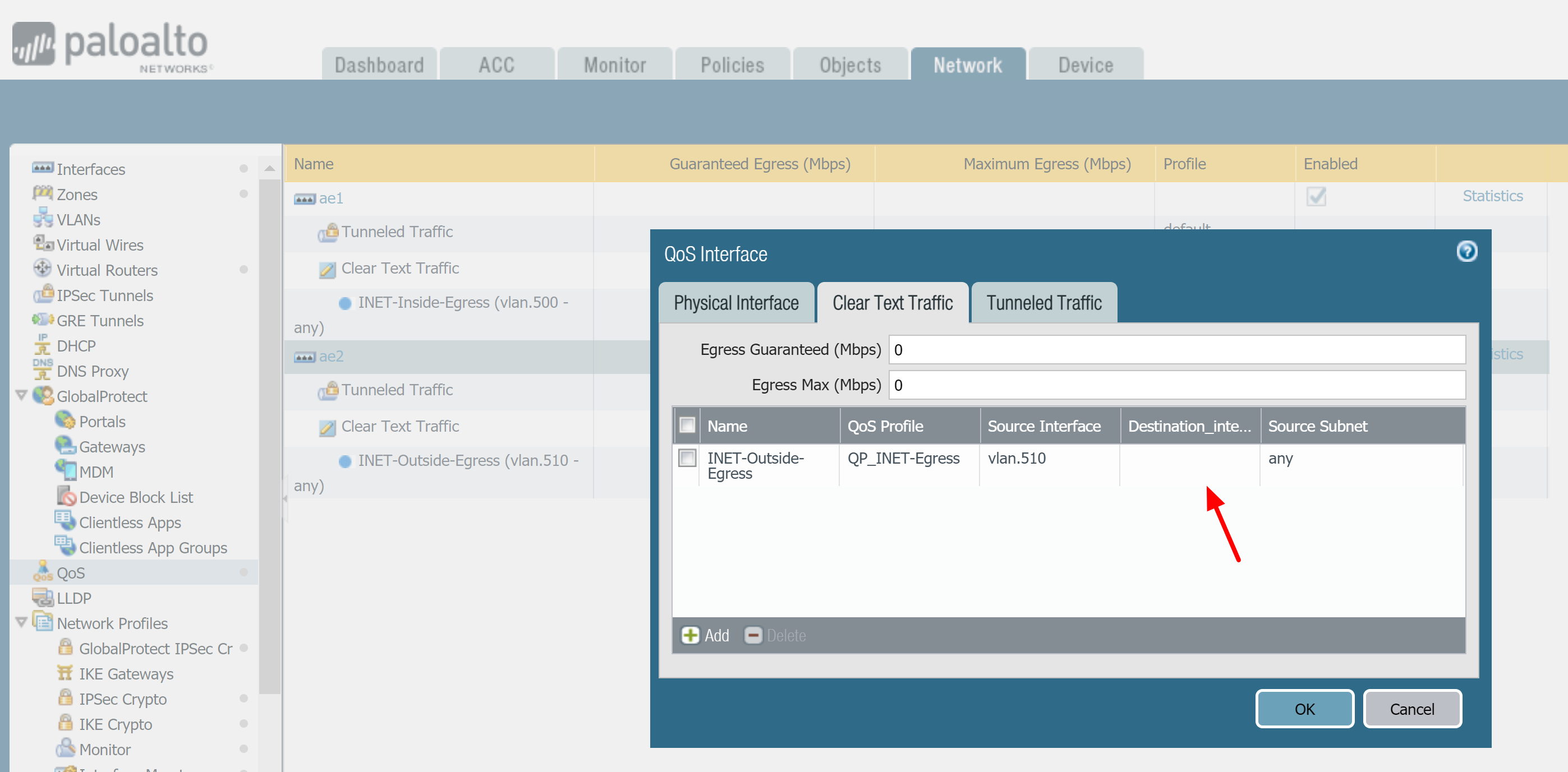

- From GUI: Network>QoS
- Click on the QoS Profile to edit
- Under Tab Clear Text Traffic> Select the in the Destination_Interface and select the destination interface if the rule is applied to a specific subinterface.
- In this case adding the subinterface ae1.500 as destination_interface to profile INET-Inside-Egress, QOS was successfully applied.
Note: For Panorama you need to run OS version higher than 9.1.6 or 10.0.2 to be able to configure the same.
Additional Information
Configure QoS
PAN-135228- Fixed an issue where Destination_Interface (Templates > Network > QoS > QoS Interface > Clear Text Traffic) was not available when configuring QoS using the Panorama web interface.
