Commit validation error "Category Match should have 2 to 4 categories at most (Custom-URL-Category-Name)"
13329
Created On 03/08/21 02:11 AM - Last Modified 11/11/22 03:51 AM
Question
- Validation/commit error is seen on the strata firewall or Prisma Access when a custom URL category object is created with type as "Category Match".
- The commit fails or throws validation error even if only the object is created and it is not used in any security rule.
- The validation/commit failure does not occur in Panorama and the error is only observed directly on the firewall.
- In case of Prisma access, the config is validated with the cloud service plugin but fails the dataplane validation for mobile users/remote networks.

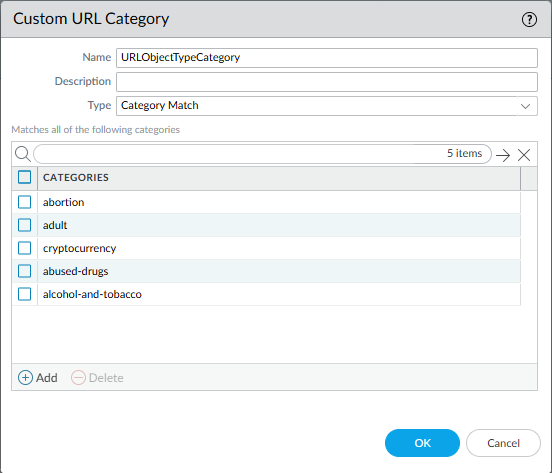

Example object which is created by the user (GUI: Objects > Custom Objects > URL Category)

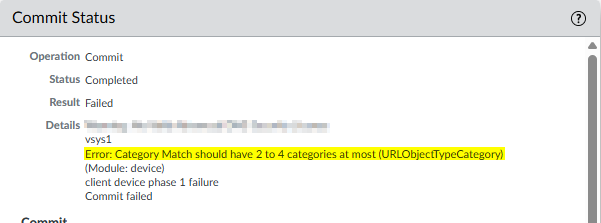

Validation or commit error:
Environment
- Any PanOS Strata Firewalls running 8.1 or above.
- Any Prisma Access for Users or Networks setup managed by Panorama.
Answer
- Custom URL category with type as Category match can have maximum 4 categories in an object.
- This failure is expected when more than 4 categories are used.
- To use the URL functionality with multiple categories, use URL profiles which has all the pre-defined categories and custom URL objects (type URL) as categories.
- Details can be found in the admin guide and URL feature set
- To fix the commit/validation error, either delete the custom URL object and the associated security rules or reduce the number of categories in the object to 4 or less.
