When Configuring VPN IPSec Tunnel Between PA Firewall And Cisco, What Does Notification Type TS_UNACCEPTABLE In System Log Mean?
50579
Created On 05/02/20 02:59 AM - Last Modified 02/10/25 19:38 PM
Question

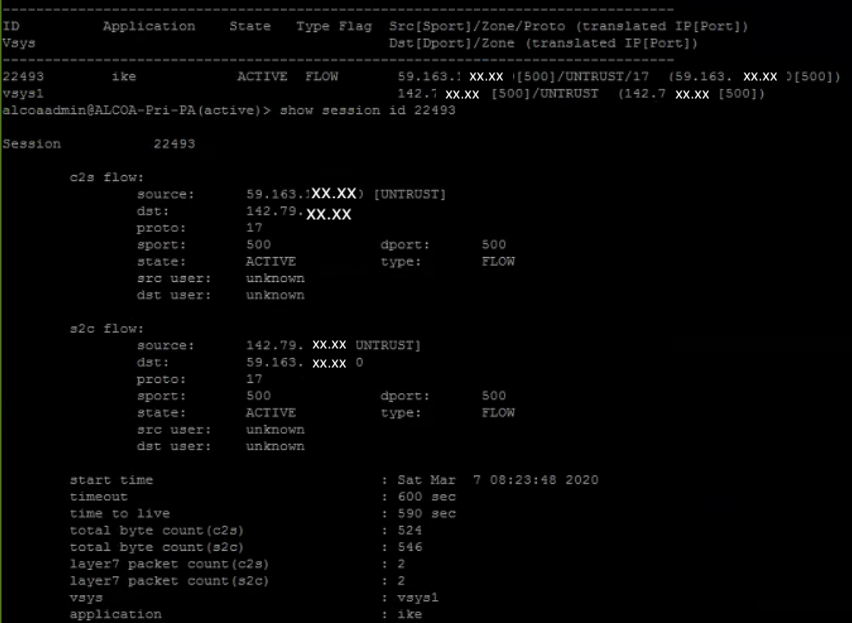

Why when configuring VPN IPSec tunnel between PA Firewall and Cisco, both Phase 1 and 2 stay down even though a session is created?

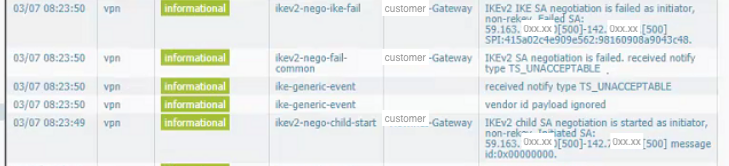

System Log shows notification Type TS_UNACCEPTABLE.
Environment
- Palo Alto Firewall
- Cisco Device
- PAN-OS 8.1, 9.0, 9.1
Answer
- If IPSec both Phase 1 and 2 do not come up, check if DH group set to 14 or lower.
- If IPSec Phase 1 does come up but not Phase 2, check if Proxy ID(s) is matched.
