Error message: "Internal error during commit process" when attempting to import a Legacy mode configuration into VM running panorama mode

Error message: "Internal error during commit process" when attempting to import a Legacy mode configuration into VM running panorama mode

25466
Created On 04/17/20 05:07 AM - Last Modified 06/24/22 18:00 PM


Symptom


Error message  "Internal error during commit process" is seen  when attempting to import a Legacy mode configuration into VM running panorama mode.

Environment


  • Panorama VM running on VMware ESXi
  • PAN-OS 8.1, 9.0 and 9.1

Cause


  • This is due to Elastic Search (ES) holding a large amount of memory up to 8G RAM  or more, which deprives another process (such as configd) of running properly.
  • These errors will most likely appear if the Log-Collector with a large number of firewall configured (~30 Firewalls or more).

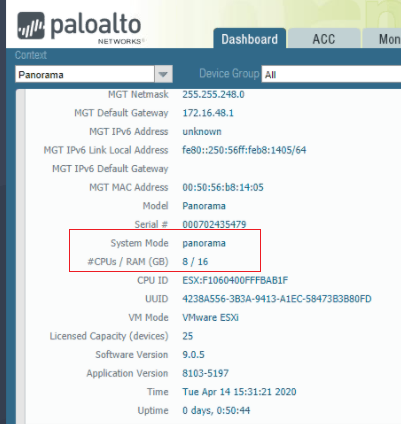

  • The issue is seen when the installed RAM is not the recommended value of 32G (displayed below)

User-added image


User-added image

Resolution


Add additional memory to the recommended value of 32G RAM for VM Panorama and re-import the configuration. Refer Setup Prerequisites for the Panorama Virtual Appliance
