How to use QoS to limit applications to maximum throughput (in Mbps)
2292
Created On 04/02/20 23:02 PM - Last Modified 08/21/25 21:25 PM
Objective
- How to use QoS to limit applications to maximum throughput (in Mbps).
- This will limit the throughput of the specified applications while still allowing remaining traffic to pass without restriction.

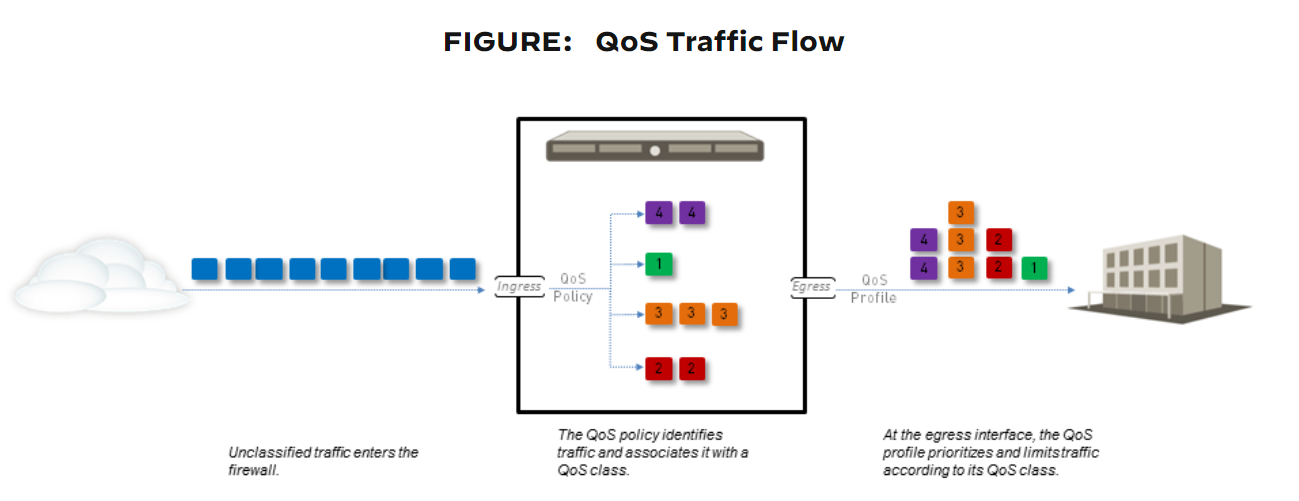

- QoS can only be applied on the 'egress' of a given interface.
- In this configuration the interface facing interface will have QoS enabled for outbound traffic (egress).
- Use of classes of QoS to accomplish task.
Environment
- VM and Hardware based firewalls
- PANOS 9.1 and above
- Quality of Service (QoS)
Procedure
- QoS Profile - Use this profile to set the 'Egress Max' to limit maximum throughput in Mbps for a specified QoS class
-

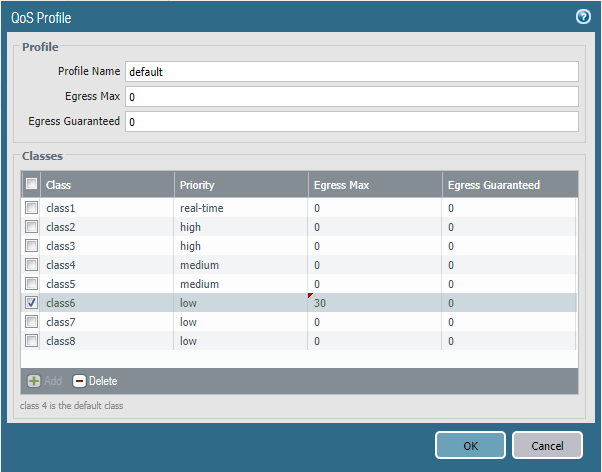

- Navigate to 'Network > QoS Profile' and click 'default' to open QoS Profile window
- Click the '0' in the Egress Max field for row 'class6' and and enter '30'
-
- Using 30 will limit traffic that gets classified in QoS class6 to 30 Mbps maximum throughput
- Choosing class6 because it has a lower priority than class4 traffic. A lower priority is not required for these 2 applications as we are only concerned about limiting maximum throughput
- Note: 'Priority' and 'Egress Max' are mutually exclusive and in this configuration we prefer these 2 applications also have a lower priority than class4 QoS traffic
- QoS Interface - Needs to be applied to the Egress interface
-
- In this configuration applying the QoS to the internet / untrust interface

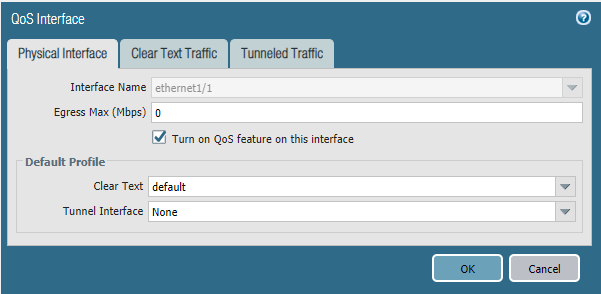

- Navigate to 'Network > QoS' click 'ethernet1/1'
- Select the QoS Physical Interface Tab and use the drop down menu for 'Clear Text' and select 'default'
- QoS Policy - This policy is used to match the 2 applications to the QoS class6 so that the 30Mbps Egress Max Throughput can be applied
-
- Navigate to 'Policies > QoS' and click 'Add' to add a new QoS Policy
- In this configuration we named the QoS Policy Rule 'two_applications'
- Source and Destination Tabs - We are using 'any' for the following fields for simplicity, but highly recommend using more narrowed down values on production firewalls
- For Source Tab - Check 'Any' for Source Zone; 'Any' for Source Address; ensure Source User has 'any' selected in the drop down menu
- For Destination Tab - ensure 'any' is selected in the drop down menu; Check 'Any' for Destination Address

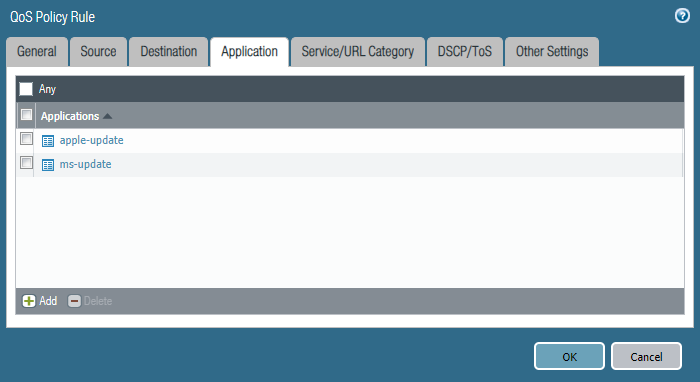

- Application Tab - Add the two applications 'apple-update' and 'ms-update' to limit bandwidth to specific applications 'apple-update' and 'ms-update'
-
- 'Service/URL Category' Tab - for this configuration use 'any'
- 'DSCP/ToS' - Ensure 'Any' is selected

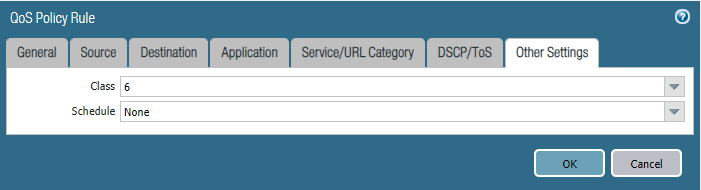

- 'Other Settings' - Select 'Class' 6 from the drop down menu
- Ok and Commit the configuration
