PA-VM deployed in Azure using bootstrap has serial as “unknown”
5760
Created On 03/18/20 17:01 PM - Last Modified 04/06/20 17:17 PM
Symptom
PA-VM is deployed through bootstrapping process in Azure Market Place using Bring your own license (BYOL) model and the firewall instance boots up with serial number as “unknown”.
- Login to CLI & Execute following two commands
> debug logview component bts_details
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panup-all-antivirus-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panupv2-all-contents-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: authcodes file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: decrypt.key file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panup-all-antivirus-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panupv2-all-contents-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: authcodes file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: decrypt.key file not found on media
- Above CLI output indicates authcodes file is missing
Environment
- Platform: VM-Series Firewall
- PAN-OS / Plugin Version: 8.1.9 / -
- Deployment: Azure
Cause

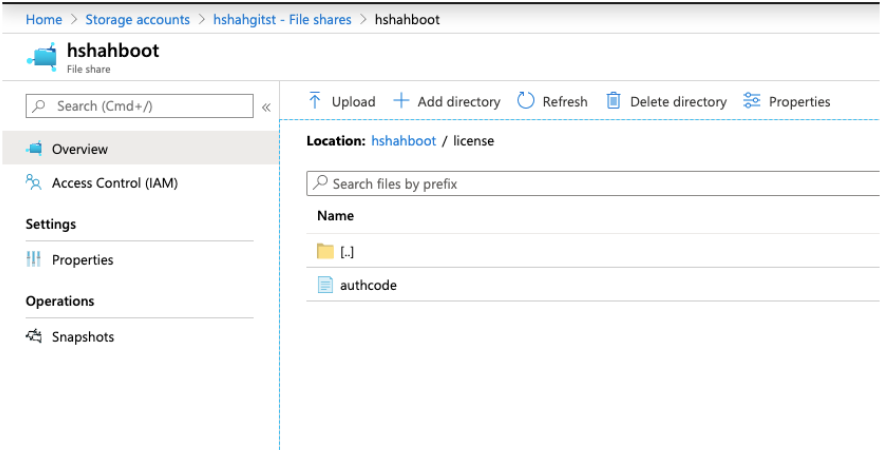

- “authcodes” file is either missing in Azure Console > Fileshare > within the “license” folder or the filename might be incorrect
Resolution
- Rename the file within “license” folder on S3 bucket from “authcode” to “authcodes” to fix the typo
