PA-VM deployed in AWS using bootstrap has serial as “unknown”
4620
Created On 03/18/20 13:32 PM - Last Modified 04/06/20 17:23 PM
Symptom
PA-VM is deployed through bootstrapping process in AWS EC2 using Bring your own license (BYOL) model and the firewall instance boots up with serial number as “unknown”.
- Log in to the firewall CLI and execute below CLI command:
>debug logview component bts_details
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panup-all-antivirus-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panupv2-all-contents-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: authcodes file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: decrypt.key file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panup-all-antivirus-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: panupv2-all-contents-* file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: authcodes file not found on media
s1mp bts_details 2020-01-21 10:19:59: DEBUG: decrypt.key file not found on media
- Above CLI output indicates “authcodes” file is missing
Environment
- Platform: PA-VM
- PAN-OS / Plugin Version: 9.0.1 / -
- Deployment: AWS
Cause
- “authcodes” file is either missing in AWS S3 Bucket within the “license” folder or the filename might be incorrect
Resolution

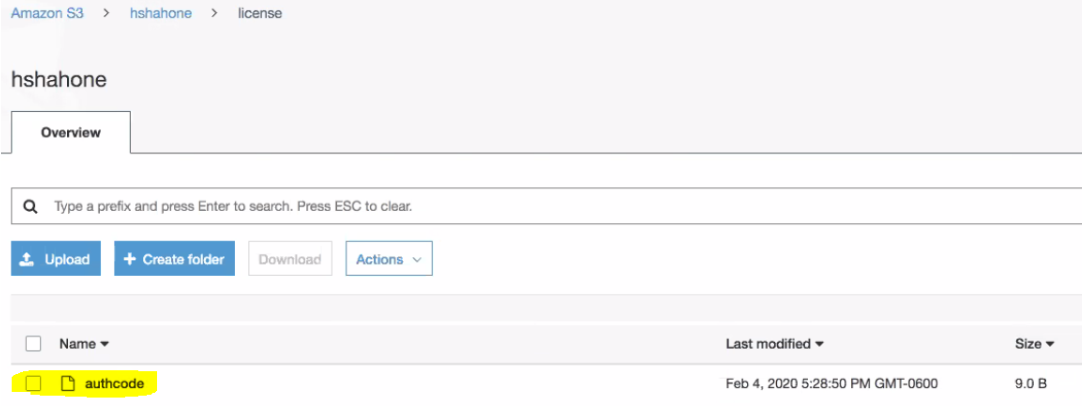

- Rename the file within “license” folder on S3 bucket from “authcode” to “authcodes” to fix the typo
