NSX: Service Deployment Failure
10088
Created On 03/12/20 04:13 AM - Last Modified 04/04/20 00:39 AM
Symptom
- Service Manager is in “Registered” state, but service deployment on NSX was failing with below OVF/VIb file error:
"Installation of deployment unit failed, please check if ovf/vib urls are accessible, in correct format and all the properties in ovf environment have been configured in service attributes. Please check logs for details.”
- Verify whether Service Manager is in ‘Registered’ State

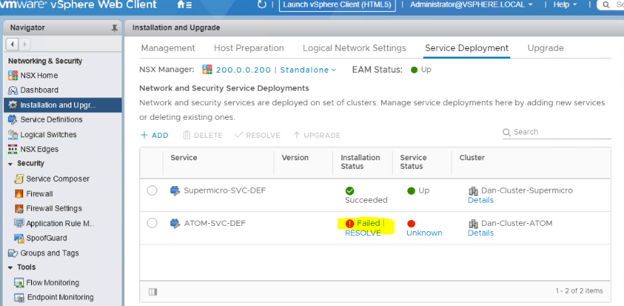

- Navigate to NSX > Installation and Upgrade > Service Deployment and click on the “Failed” installation state to get more information. [Figure A]
- In this case, the error seen is “Installation of deployment unit failed, please check if ovf/vib urls are accessible, incorrect format and all the properties in ovf environment have been configured in service attributes”

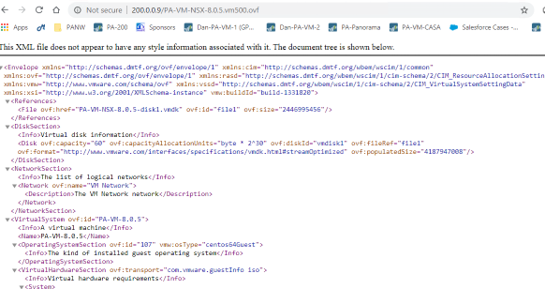

- Verify OVF URL is accessible from the NSX Manager by accessing it from a web browser on host within the same network ex: http://200.0.0.9/PA-VM-NSX-8.0.5.vm500.ovf [Figure B]

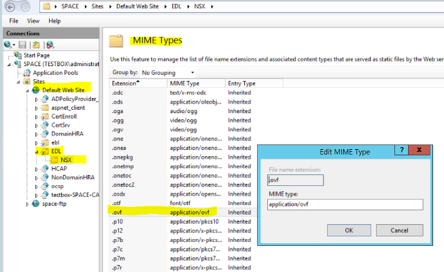

- For IIS webserver, verify MIME types has extension for ovf [Figure C]
- For apache webserver, verify adequate permission is assigned for the web directory:
Environment
- Platform: Panorama
- Deployment: Operations Centric
Cause
- OVF path specified has the VM base image file missing
- Lack of permission on the vmdk file could also be another potential cause for deployment failure
Resolution
- Ensure the VM-Series base image are hosted at the specified OVF path along with required permissions.
