PA-3200/5200不会在接收阶段捕获入站 ESP 协议 50 包

17771

Created On 10/25/19 02:21 AM - Last Modified 10/15/25 10:05 AM

Symptom

PA-32xx 和 PA- 52xx Firewall ESP 不会在接收阶段捕获数据包。
它不会影响流量。
通过发送ping对已配置的筛选器进行打开 PA-3220 并启动流量。

admin@Lab34-77-PA-3220> debug dataplane packet-diag show setting

--------------------------------------------------------------------------------
Packet diagnosis setting:
--------------------------------------------------------------------------------
Packet filter
  Enabled:                   yes
  Match pre-parsed packet:   no
  Index 1: 0.0.0.0/32[0]->0.0.0.0/32[0], proto 50          <<<<<<<<<<< for ESP
           ingress-interface any, egress-interface any, exclude non-IP
  Index 2: 34.34.34.1/32[0]->34.34.34.2/32[0], proto 0
           ingress-interface any, egress-interface any, exclude non-IP
  Index 3: 34.34.34.2/32[0]->34.34.34.1/32[0], proto 0
           ingress-interface any, egress-interface any, exclude non-IP
  Index 4: 0.0.0.0/0[0]->0.0.0.0/0[0], proto 0
           ingress-interface ethernet1/1, egress-interface any, exclude non-IP
--------------------------------------------------------------------------------
Logging
  Enabled:                   yes
  Log-throttle:              no
  Sync-log-by-ticks:         yes
  Features:
    flow    : basic
    tunnel  : flow
  Counters:
--------------------------------------------------------------------------------

平在隧道 IP 地址之间启动隧道

admin@Lab33-198-PA-3220> ping source 33.33.33.2 host 33.33.33.1
PING 33.33.33.1 (33.33.33.1) from 33.33.33.2 : 56(84) bytes of data.
64 bytes from 33.33.33.1: icmp_seq=2 ttl=64 time=1.48 ms
64 bytes from 33.33.33.1: icmp_seq=3 ttl=64 time=1.46 ms
64 bytes from 33.33.33.1: icmp_seq=4 ttl=64 time=1.45 ms
64 bytes from 33.33.33.1: icmp_seq=5 ttl=64 time=1.45 ms
64 bytes from 33.33.33.1: icmp_seq=6 ttl=64 time=1.48 ms
64 bytes from 33.33.33.1: icmp_seq=7 ttl=64 time=1.37 ms
64 bytes from 33.33.33.1: icmp_seq=8 ttl=64 time=1.45 ms
64 bytes from 33.33.33.1: icmp_seq=9 ttl=64 time=1.46 ms
64 bytes from 33.33.33.1: icmp_seq=10 ttl=64 time=1.48 ms
64 bytes from 33.33.33.1: icmp_seq=11 ttl=64 time=1.56 ms
64 bytes from 33.33.33.1: icmp_seq=12 ttl=64 time=1.47 ms
64 bytes from 33.33.33.1: icmp_seq=13 ttl=64 time=1.50 ms
64 bytes from 33.33.33.1: icmp_seq=14 ttl=64 time=1.49 ms
64 bytes from 33.33.33.1: icmp_seq=15 ttl=64 time=1.44 ms
^C
— 33.33.33.1 ping statistics —
15 packets transmitted, 14 received, 6% packet loss, time 14025ms
rtt min/avg/max/mdev = 1.373/1.471/1.565/0.055 ms
admin@Lab33-198-PA-3220>

试飞数据平面日志显示以下情况 PA-3220 ：

admin@Lab33-198-PA-3220>
.
.
.
== 2019-07-23 12:53:07.557 -0700 ==
Packet received at ingress stage, tag 0, type ORDERED
Packet info: len 342 port 64 interface 64 vsys 1
Pattern not found  (press RETURN)   <<<<<<<<<<<<<<<<<<<<<<

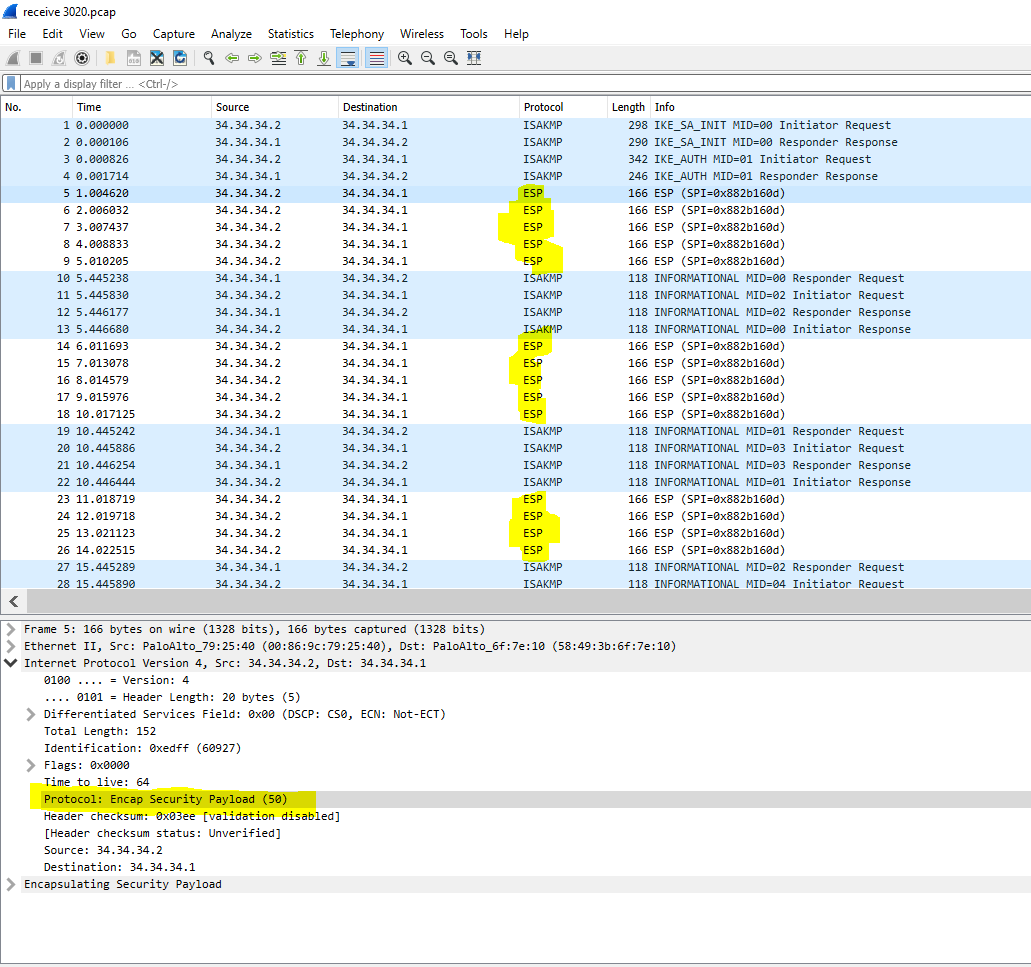

On Wireshark, Received Packets on PA-3220 vs PA-3020:
- ESP packets can be seen on PA-3020 firewall.

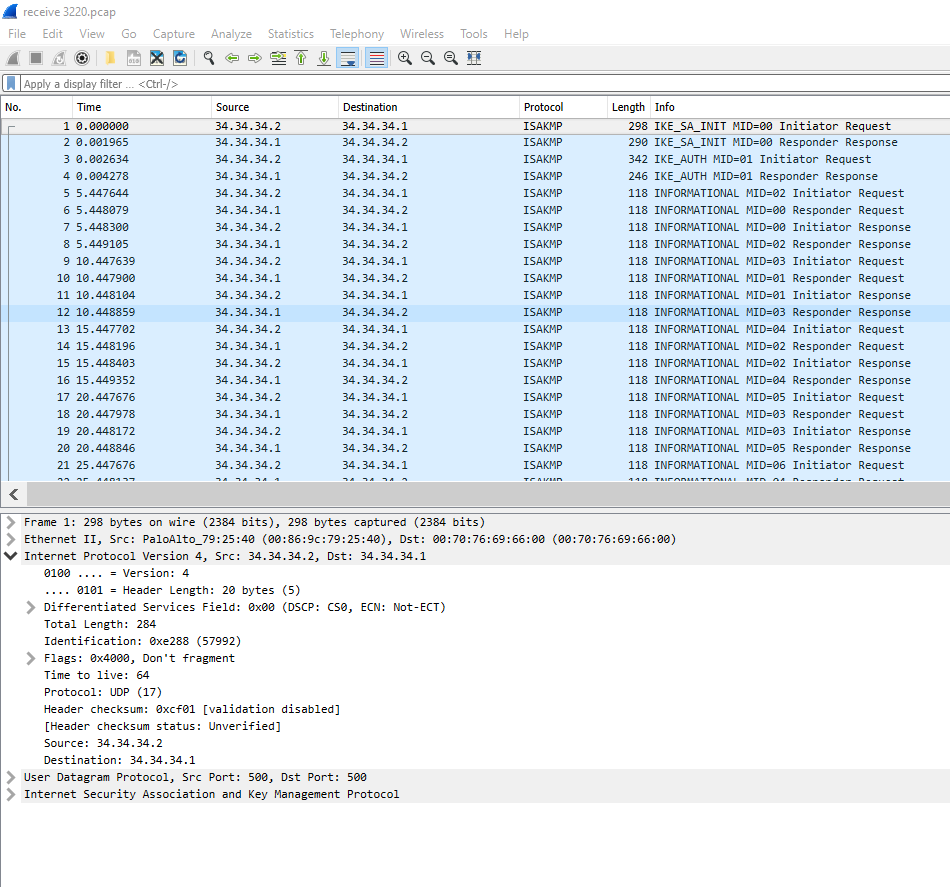

- There were no ESP packets at receive stage on PA-3220 firewall.
