PA-3200/5200 does not capture inbound ESP Protocol 50 packets in Receive stage

• PA-32xx and PA-52xx Firewall do not capture ESP packets at Receive stage.
• It doesn't impact the traffic.

• Configured filter on PA-3220 and initiated traffic by sending ping.

admin@Lab34-77-PA-3220> debug dataplane packet-diag show setting

--------------------------------------------------------------------------------
Packet diagnosis setting:
--------------------------------------------------------------------------------
Packet filter
  Enabled:                   yes
  Match pre-parsed packet:   no
  Index 1: 0.0.0.0/32[0]->0.0.0.0/32[0], proto 50          <<<<<<<<<<< for ESP
           ingress-interface any, egress-interface any, exclude non-IP
  Index 2: 34.34.34.1/32[0]->34.34.34.2/32[0], proto 0
           ingress-interface any, egress-interface any, exclude non-IP
  Index 3: 34.34.34.2/32[0]->34.34.34.1/32[0], proto 0
           ingress-interface any, egress-interface any, exclude non-IP
  Index 4: 0.0.0.0/0[0]->0.0.0.0/0[0], proto 0
           ingress-interface ethernet1/1, egress-interface any, exclude non-IP
--------------------------------------------------------------------------------
Logging
  Enabled:                   yes
  Log-throttle:              no
  Sync-log-by-ticks:         yes
  Features:
    flow    : basic
    tunnel  : flow
  Counters:
--------------------------------------------------------------------------------

• Ping started between tunnel IP addresses to initiate tunnel

admin@Lab33-198-PA-3220> ping source 33.33.33.2 host 33.33.33.1
PING 33.33.33.1 (33.33.33.1) from 33.33.33.2 : 56(84) bytes of data.
64 bytes from 33.33.33.1: icmp_seq=2 ttl=64 time=1.48 ms
64 bytes from 33.33.33.1: icmp_seq=3 ttl=64 time=1.46 ms
64 bytes from 33.33.33.1: icmp_seq=4 ttl=64 time=1.45 ms
64 bytes from 33.33.33.1: icmp_seq=5 ttl=64 time=1.45 ms
64 bytes from 33.33.33.1: icmp_seq=6 ttl=64 time=1.48 ms
64 bytes from 33.33.33.1: icmp_seq=7 ttl=64 time=1.37 ms
64 bytes from 33.33.33.1: icmp_seq=8 ttl=64 time=1.45 ms
64 bytes from 33.33.33.1: icmp_seq=9 ttl=64 time=1.46 ms
64 bytes from 33.33.33.1: icmp_seq=10 ttl=64 time=1.48 ms
64 bytes from 33.33.33.1: icmp_seq=11 ttl=64 time=1.56 ms
64 bytes from 33.33.33.1: icmp_seq=12 ttl=64 time=1.47 ms
64 bytes from 33.33.33.1: icmp_seq=13 ttl=64 time=1.50 ms
64 bytes from 33.33.33.1: icmp_seq=14 ttl=64 time=1.49 ms
64 bytes from 33.33.33.1: icmp_seq=15 ttl=64 time=1.44 ms
^C
— 33.33.33.1 ping statistics —
15 packets transmitted, 14 received, 6% packet loss, time 14025ms
rtt min/avg/max/mdev = 1.373/1.471/1.565/0.055 ms
admin@Lab33-198-PA-3220>

• Debug Dataplane Logs show the following on PA-3220:

admin@Lab33-198-PA-3220>
.
.
.
== 2019-07-23 12:53:07.557 -0700 ==
Packet received at ingress stage, tag 0, type ORDERED
Packet info: len 342 port 64 interface 64 vsys 1
Pattern not found  (press RETURN)   <<<<<<<<<<<<<<<<<<<<<<

• On Wireshark, Received Packets on PA-3220 vs PA-3020:

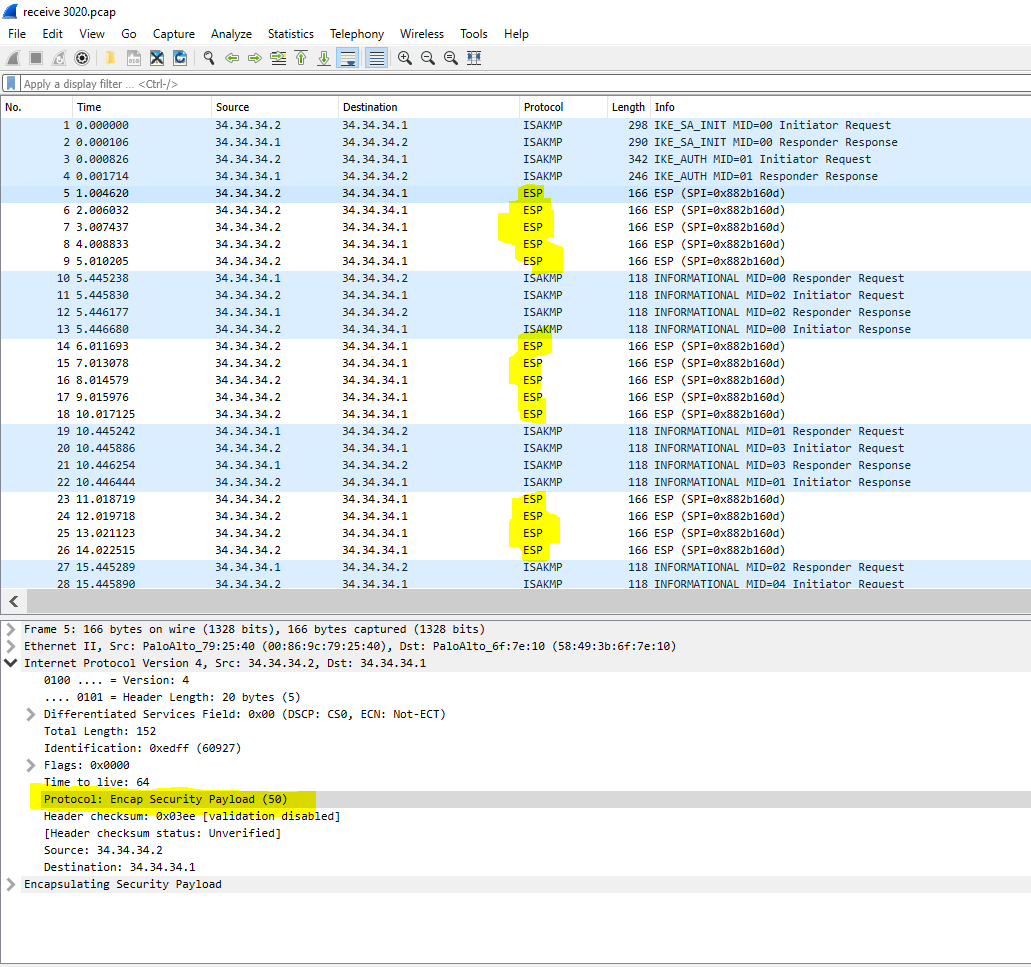

  - ESP packets can be seen on PA-3020 firewall.

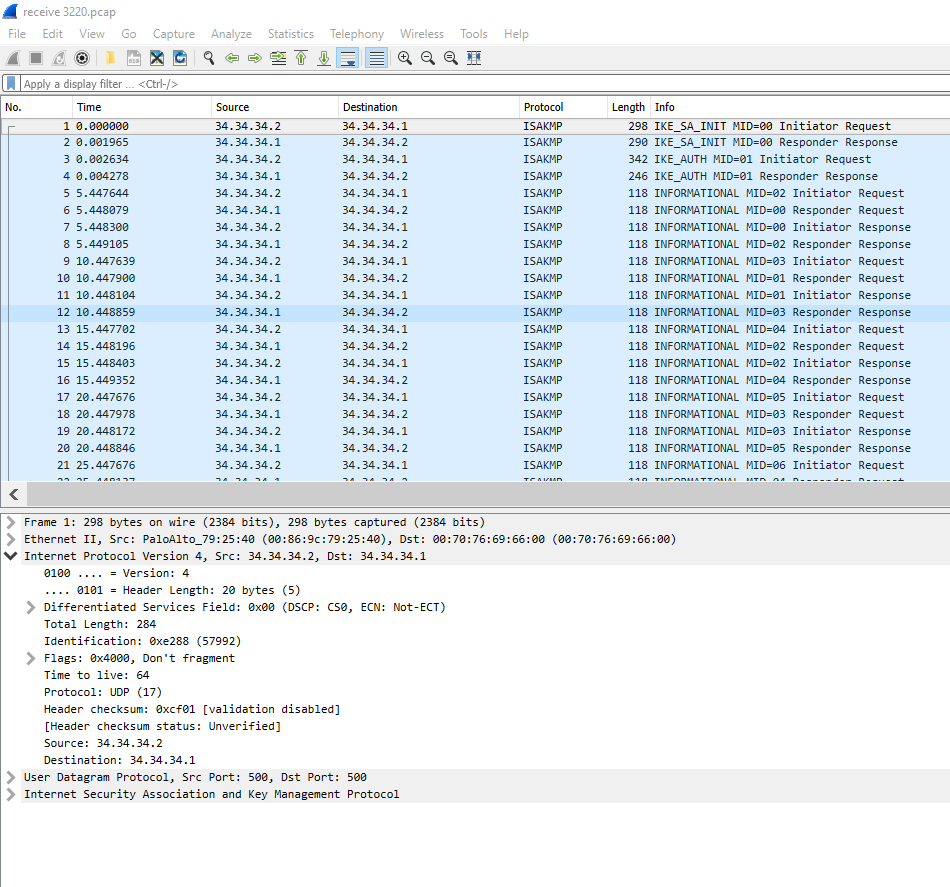

  - There were no ESP packets at receive stage on PA-3220 firewall.




• PA-3200
• PA-5200
• PAN-OS 8.1 and PAN-OS 9.0

There is no solution or workaround. Issue was reported in PAN-122181 and is targeted to be fixed in PAN-OS 8.1.12 and PAN-OS 9.0.6.
