How to set a service route on an interface with dynamic IP

• If any configured services are not reachable via management interface and can only be reachable via dataplane interfaces, then one should set up a service route.

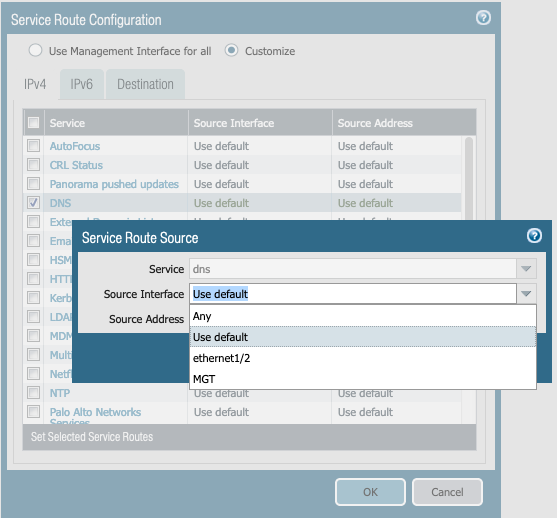

• When one tries to configure the same, only the interfaces configured with Static IP are displayed in the list. The interfaces configured with Dynamic IP are not displayed (Example below)
• The objective of this article is to show how to set this service route using this interface with a dynamic IP configuration.

• Palo Alto Firewall
• Supported PAN-OS.
• Dataplane interface with dynamic IP configuration.
• Service route using dataplane interface

In the Service route configuration, instead of assigning using the interface, it is possible to do it via the destination.

To do so :

1. Go to GUI: Device> Setup>Services
2. Click on "Service routes configuration"

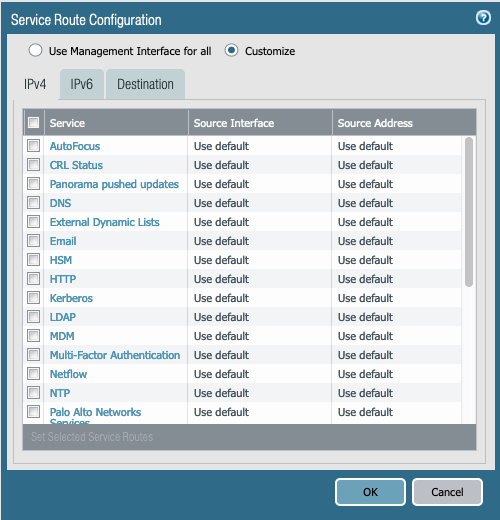

3. Click on "Customize" radio button

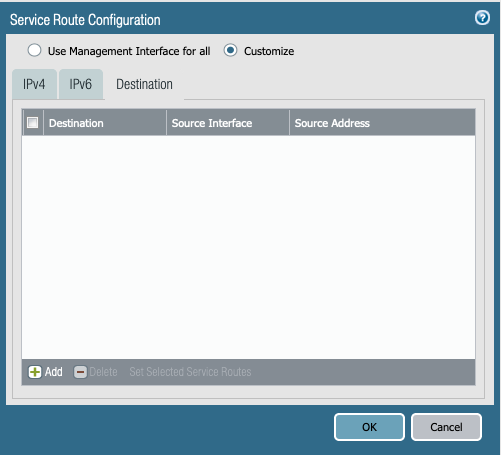

4. Click on the tab "Destination"

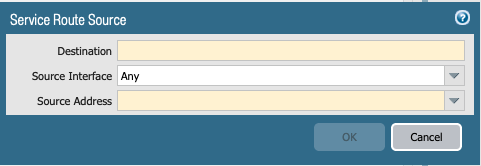

5. Click on "Add" and Enter the Destination information (IP address) and the Source Interface to use.

• Select "Any" - Source Interface makes all IP addresses on all interfaces available in the Source Address drop-down from which you select an address.
• Select "MGT" - causes the firewall to use the MGT interface for the service route.

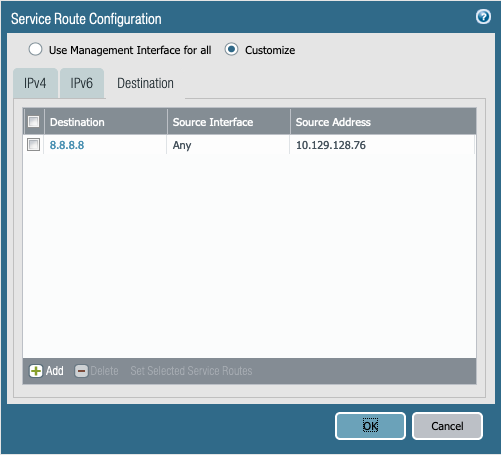

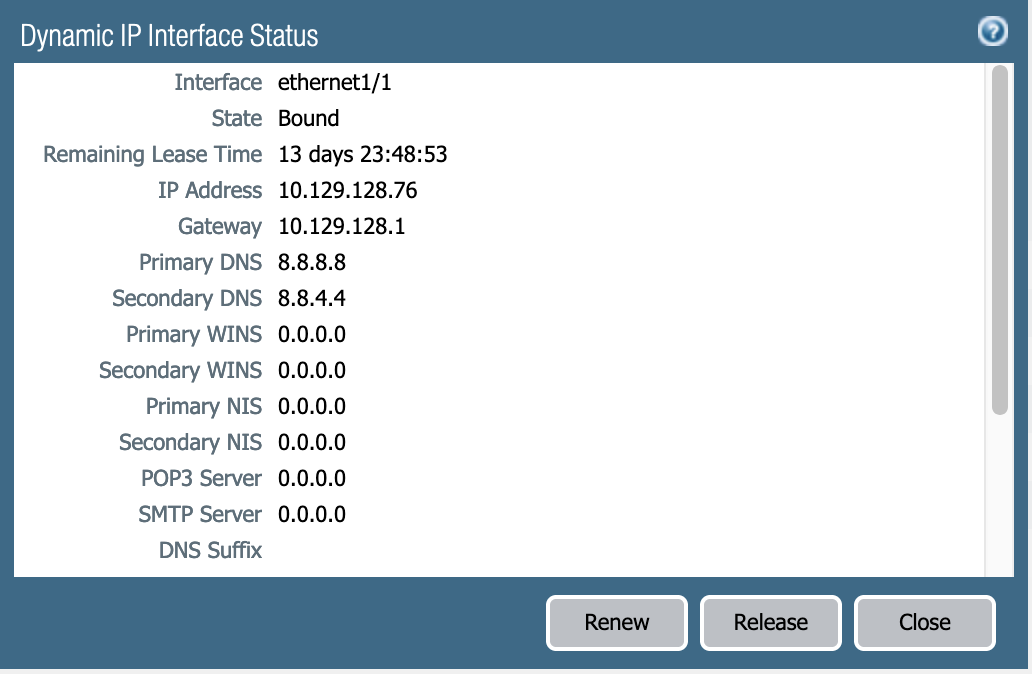

• As displayed, the service route to reach 8.8.8.8 is sourced from the IP 10.129.128.76 which is the assigned IP address to the interface ethernet1/1

5. Commit the configuration.

• To add the service route from the CLI, but only for the dataplane interface and the mgmt interface, use GUI


  admin@pa-vm# set deviceconfig system route service http source interface ethernet1/2 address 10.10.20.21/24

• The routing table 0 can be checked to see routes through the management interface:


  lab_PA> debug dataplane internal vif route 0 | match  "local\|eth0" ===> (to view the default route in MGMT)
  local default dev lo table upstream_to_swg scope host
  default via 10.194.48.1 dev eth0 =====> Gateway IP address
  10.194.48.0/20 dev eth0 proto kernel scope link src 10.194.61.69  ===> Eth0 is MGMT interface
  broadcast 10.194.48.0 dev eth0 table local proto kernel scope link src 10.194.61.69
  local 10.194.61.69 dev eth0 table local proto kernel scope host src 10.194.61.69
