What is the meaning of aged out for session end reason ?
42399
Created On 10/15/19 02:46 AM - Last Modified 02/17/25 09:22 AM
Question
What is the meaning of aged out for session end reason?
> show log traffic session-end-reason equal aged-out
Time App From Src Port Source
Rule Action To Dst Port Destination
Src User Dst User End Reason
====================================================================================================
2018/11/03 18:40:15 ping L3-Trust 0 10.0.8.20
Wide Open allow L3-Trust 0 1.1.1.2
aged-outEnvironment
- Palo Alto Firewalls
- Session details
Answer
- Aged out session end reason occurs when a session closes due to aging out.

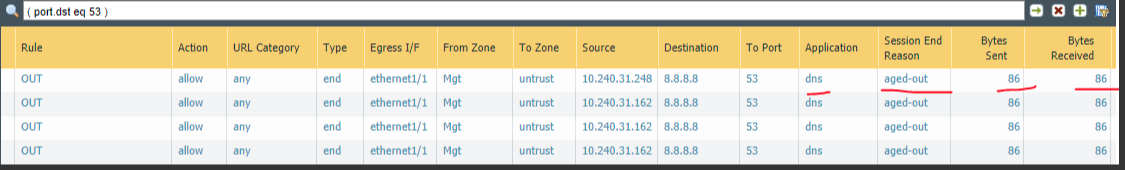

- For UDP Traffic like Dns traffic is normal to seeing the aged out and it is a normal way for UDP session to end.
- For the TCP sessions Age out occurs when a session ages out due to timeout.

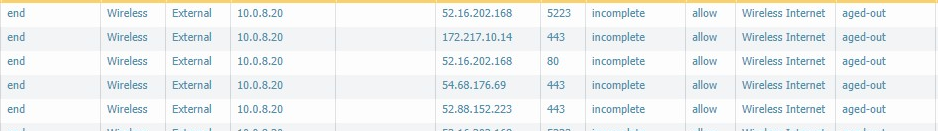

- For example if user tries to connect to a server and user is waiting for a response / ack / syn-ack. If the tcp handshake is not established, it times out or firewall did not receive enough packets to recognize the application and it gets timed out.
