Cómo verificar si MED el valor del atributo se anuncia correctamente a un BGP par
17699
Created On 07/27/19 02:33 AM - Last Modified 03/26/21 17:45 PM
Objective
Med es un atributo utilizado para influir en BGP la selección de rutas de acceso. Cuando se configura, este valor no se muestra en GUI .

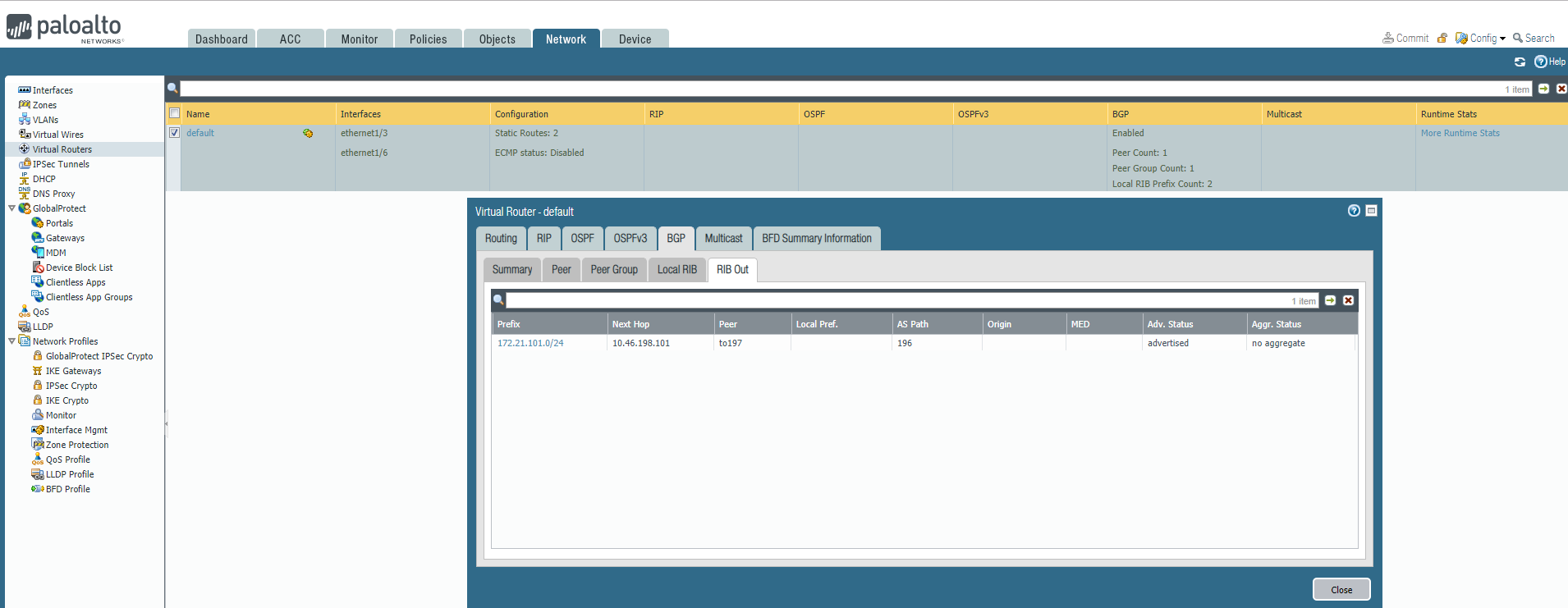

GUI: Enrutadores virtuales de > de red > más estadísticas en tiempo de ejecución BGP > > RIB
Environment
- PAN-OS
- Todos los cortafuegos
Procedure
MED el anuncio del atributo se puede verificar en el local firewall usando el comando show Routing Protocol CLI bgp rib-out-detail.
admin@PA-VM-196> show routing protocol bgp rib-out-detail
VIRTUAL ROUTER: default (id 1)
==========
----------
Prefix: 172.21.101.0/24
Nexthop: 10.46.198.101
Peer: to197 (id 1)
Advertise status: advertised
Aggregation status: no aggregate
Originator ID: 0.0.0.0
AS Path: 196
Origin: N/A
MED: 200
Local Preference: 0
Atomic aggregate: no
Aggregator AS: 0
Aggregator ID: 0.0.0.0
