How To View Routing Table of Management Interface and Service Route Table?
67845
Created On 04/07/19 23:00 PM - Last Modified 01/19/26 07:58 AM
Objective
How to view routing table of management interface and service route table?
Environment
- NGFW
- All PANOS versions
Procedure
Routing table through management interface and service route are installed using reserved routing table IDs (numbers).
To view all available routing tables, use this command:
user@firewall> debug dataplane internal vif vr # # reserved values # #255 local #254 main #253 default #0 unspec # #PAN source interface routes 250 srcif #PAN host vif for internal communcation 251 panhost #PAN vif for inband HA control link 252 panha # #PAN Aux ports tables 256 aux-1 257 aux-2 # #PAN vif route tables # # # vr default, id 1 # 1 vr1
To view the main routing table through management interface, use this command:
user@firewall> debug dataplane internal vif route 254 default via 10.129.70.1 dev eth0 10.129.70.0/24 dev eth0 proto kernel scope link src 10.129.70.118 <snip>
The rest of the entries are internal routes.

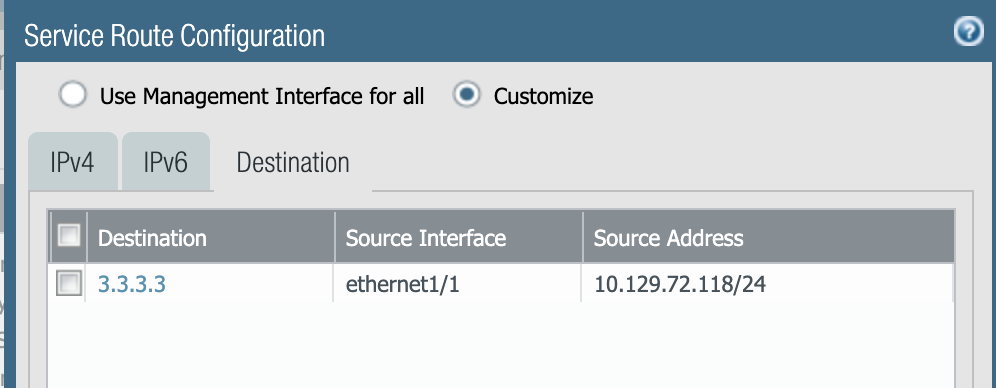

To view the service route destinations configured under Setup > Service > (Global/VirtualSystem) > ServiceRoute Configuration
user@firewall> debug dataplane internal vif route 251 default via 127.131.1.254 dev eth3.251
If the default gateway is not reachable, then you may see the following:
user@firewall> debug dataplane internal vif route 254 default via 10.129.70.1 dev eth0 ination Host Unreachable <<<<<<< 10.129.70.0/24 dev eth0 proto kernel scope link src 10.129.70.118 <snip>
Run "show arp management " to see if you have an ARP entry for the default gateway.
