How do I view and verify IKEv1 Phase1 or IKEv2 Parent SA?

Environment

NGFW
Supported PAN-OS

Answer

Web Interface:

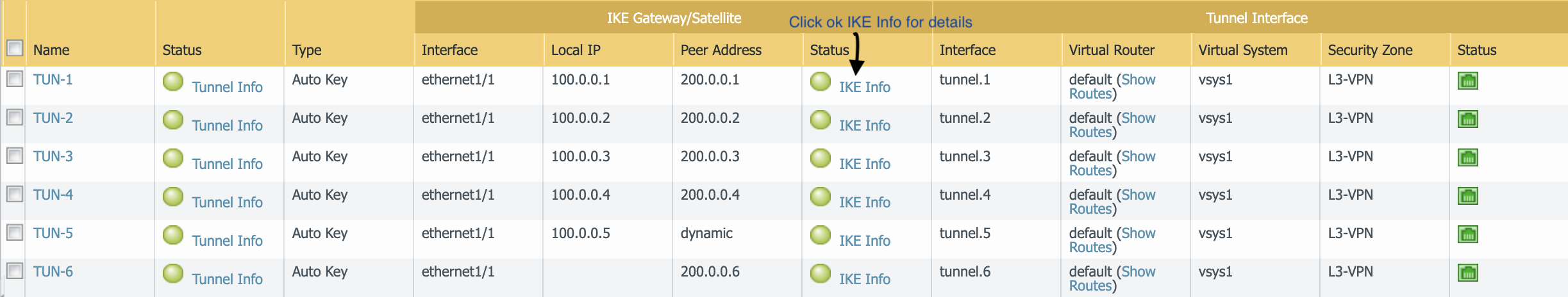

Navigate to Network > IPSec Tunnels
ikeINfo

The GREEN color next to IKE Info indicates that the SA (Security Association) is up or established.
If it is RED, that indicates the SA is down or unestablished.

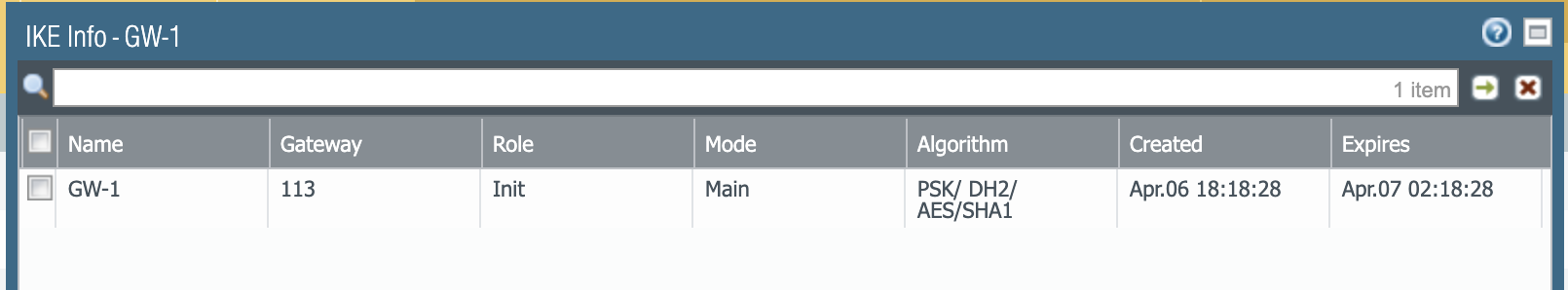

Name – The name of the gateway configured under Network > IKE Gateways
Gateway – The internally generated (number) ID to uniquely identify the IKE gateway
Role – The local device role in the IKE Phase-1 negotiation
Init - Initiator – The local device initiated the IKE negotiation
Resp - Responder – The local device is the responder in the IKE negotiation, and the peer device initiated the connection
Mode – IKEv1 has two modes of negotiation
Main – Main mode, usually in case of static local and peer IP
Aggr - Aggresive – Aggressive mode, usually in cases where either one of the sides of the VPN has a dynamic IP address.
Algorithm – The Phase-1 algorithm negotiated between the peers. The algorithms for negotiation are picked from the IKE crypto profile configured under Network > IKE Crypto. The format is Authentication Method/DH Group/Encryption Algorithm/Authentication Algorithm
Created – The date and time when the IKE SA was established between the peers
Expires – The date and time when the SA expires. This is from the key lifetime configured under IKE Crypto

CLI:

The "show vpn ike-sa" CLI command gives the summary of the Phase-1 and associated Phase-2 SAs
The command displays the IKEv1 and IKEv2 SAs separately. This can be used to determine which tunnels are IKEv1 and which are IKEv2.

Options Available:

user@firewall> show vpn ike-sa
> detail    Show the details of IKE SA status
> gateway   Show for given IKE gateway
> match     if the name contains the string or not
  |         Pipe through a command
  <Enter>   Finish input

Sample Outputs:

user@firewall> show vpn ike-sa detail gateway GW-1
IKE Gateway GW-1, ID 113 100.0.0.1              => 200.0.0.1
  Current time: Apr.06 20:39:30

IKE Phase1 SA:
  Cookie:  A872B7F1E93B2EF2:E16469E4A7D3EA18  Init
        State:      Dying
        Mode:       Main
        Authentication:  PSK
        Proposal:   AES128-CBC/SHA1/DH2
        NAT:        Not detected
        Message ID: 0, phase 2: 0
        Phase 2 SA created : 3
        Created:    Apr.06 18:18:28, 2 hours 21 minutes 2 seconds ago
        Expires:    Apr.07 02:18:28

user@firewall> show vpn ike-sa gateway GW-1
IKEv1 phase-1 SAs
GwID/client IP  Peer-Address           Gateway Name           Role Mode Algorithm             Established     Expiration      V  ST Xt Phase2
--------------  ------------           ------------           ---- ---- ---------             -----------     ----------      -  -- -- ------
113             200.0.0.1              GW-1                   Init Main PSK/ DH2/A128/SHA1    Apr.06 18:18:28 Apr.07 02:18:28 v1 13 1  3

Show IKEv1 IKE SA: Total 4 gateways found. 1 ike sa found.


IKEv1 phase-2 SAs
Gateway Name           TnID     Tunnel                 GwID/IP          Role Algorithm          SPI(in)  SPI(out) MsgID    ST Xt
------------           ----     ------                 -------          ---- ---------          -------  -------- -----    -- --
GW-1                   780      TUN-1                  113              Init ESP/ DH2/tunl/SHA1 866BC8DD C490D71C 35772C5A 9  1

Show IKEv1 phase2 SA: Total 4 gateways found. 1 ike sa found.


There is no IKEv2 SA found.

user@firewall> show vpn ike-sa

IKEv1 phase-1 SAs
GwID/client IP  Peer-Address           Gateway Name           Role Mode Algorithm             Established     Expiration      V  ST Xt Phase2
--------------  ------------           ------------           ---- ---- ---------             -----------     ----------      -  -- -- ------
113             200.0.0.1              GW-1                   Init Main PSK/ DH2/A128/SHA1    Apr.06 18:18:28 Apr.07 02:18:28 v1 13 1  2
114             200.0.0.2              GW-2                   Resp Main PSK/ DH2/A128/SHA1    Apr.06 18:18:32 Apr.07 02:18:32 v1 13 1  2
117             10.129.72.42           GW-5                   Resp Aggr PSK/ DH2/A128/SHA1    Apr.06 18:18:32 Apr.07 02:18:32 v1 13 1  2
118             200.0.0.6              GW-6                   Init Aggr PSK/ DH2/A128/SHA1    Apr.06 18:18:28 Apr.07 02:18:28 v1 13 1  2

Show IKEv1 IKE SA: Total 4 gateways found. 4 ike sa found.


IKEv1 phase-2 SAs
Gateway Name           TnID     Tunnel                 GwID/IP          Role Algorithm          SPI(in)  SPI(out) MsgID    ST Xt
------------           ----     ------                 -------          ---- ---------          -------  -------- -----    -- --
GW-1                   780      TUN-1                  113              Init ESP/ DH2/tunl/SHA1 ABB046B6 8C6CC39A E5367FE6 9  1
GW-2                   781      TUN-2                  114              Resp ESP/ DH2/tunl/SHA1 E2183BF3 B5F69A27 1C94E7B9 9  1
GW-5                   784      TUN-5                  117              Resp ESP/ DH2/tunl/SHA1 CD54CC98 FCB719FB 93BCB696 9  1
GW-6                   785      TUN-6                  118              Init ESP/ DH2/tunl/SHA1 8C8D8DF8 869F14EE 4B9D2EC2 9  1

Show IKEv1 phase2 SA: Total 4 gateways found. 4 ike sa found.



IKEv2 SAs
Gateway ID      Peer-Address           Gateway Name           Role SN       Algorithm             Established     Expiration      Xt Child  ST
----------      ------------           ------------           ---- --       ---------             -----------     ----------      -- -----  --
115             200.0.0.3              GW-3                   Init 3        PSK/ DH2/A128/SHA1    Apr.06 18:18:28 Apr.07 02:18:28 0  1      Established
116             200.0.0.4              GW-4                   Resp 4        PSK/ DH2/A128/SHA1    Apr.06 18:18:32 Apr.07 02:18:32 0  1      Established

IKEv2 IPSec Child SAs
Gateway Name           TnID     Tunnel                    ID       Parent   Role SPI(in)  SPI(out) MsgID    ST
------------           ----     ------                    --       ------   ---- -------  -------- -----    --
GW-3                   782      TUN-3                     295      3        Init C701F21D D2623952 00000079 Mature
GW-4                   783      TUN-4                     294      4        Resp F6B7115C C13629DC 0000022D Mature

Show IKEv2 SA: Total 2 gateways found. 2 ike sa found.

Explanation of Key Columns for IKEv1 Phase-1 SAs:

GwID – The internally generated (number) ID to uniquely identify the IKE gateway.
Peer-Address – The VPN peer device IP address
Gateway Name – The name of the gateway configured under Network > IKE Gateways
Role – The local device role in the IKE Phase-1 negotiation
Init - Initiator – The local device initiated the IKE negotiation
Resp - Responder – The local device is the responder in the IKE negotiation, and the peer device initiated the connection
Mode – IKEv1 has two modes of negotiation
Main – Main mode, usually in case of static local and peer IP
Aggr - Aggresive – Aggressive mode, usually in cases where either one of the sides of the VPN has a dynamic IP address.
Algorithm – The Phase-1 algorithm negotiated between the peers. The algorithms for negotiation are picked from the IKE crypto profile configured under Network > IKE Crypto. The format is Authentication Method/ DH Group/Encryption Algorithm/Authentication Algorithm

Example:
PSK/ DH2/A128/SHA1:
PSK – Stands for Pre-shared key. This is the authentication method (it can be pre-shared key or certificate).
DH2 –The DH (Deffie-Hellman) group negotiated
A128 – aes-128-cbc encryption algorithm negotiated
SHA1 – Authentication algorithm negotiated

Established – The date and time when the IKE SA was established between the peers
Expiration – The date and time when the SA expires. This is from key lifetime configured under IKE Crypto

Explanation of Key Columns for IKEv1 Phase-2 SAs:

This displays the Phase-2 SAs associated with the Phase-1 SAs

Gateway Name – The name of the gateway configured under Network > IKE Gateways
TnID - Tunnel ID – The internally generated (number) ID to uniquely identify the tunnel
Tunnel – The name of the tunnel configured under Network > IPSec Tunnels
GwID – The internally generated (number) ID to uniquely identify the IKE gateway.
Role – The local device role in the IKE Phase-2 negotiation
Init - Initiator – The local device initiated the IKE negotiation
Resp - Responder – The local device is the responder in the IKE negotiation, peer device initiated the connection
Algorithm – The Phase-2 algorithm negotiated between the peers. The algorithms for negotiation are picked from the IPSec crypto profile configured under Network > IPSec Crypto. The format is IPSec Protocol/DH Group/Mode/Authentication Algorithm

Example:
ESP/ DH2/tunl/SHA1:
ESP – Encapsulating Security Payload. This the IPSec Protocol. (It can be ESP or AH)
tunl – This is always tunnl, representing Tunnel mode.
SHA1 – Authentication algorithm negotiated

SPI (in) – The Security Parameter Index (SPI) to indicate receive SPI number. This is equal to the peer's SPI (out)
SPI (out) – The Security Parameter Index (SPI) to indicate transmit SPI number. This is equal to the peer's SPI (in)

Explanation of Key Columns for IKEv2 SAs:

Gateway ID – The internally generated (number) ID to uniquely identify the IKE gateway
Peer-Address – The VPN peer device IP address
Gateway Name – The name of the gateway configured under Network > IKE Gateways
Role – The local device role in the IKE SA negotiation
Init - Initiator – The local device initiated the IKE negotiation
Resp - Responder – The local device is the responder in the IKE negotiation, peer device initiated the connection
Algorithm – The Phase-1 algorithm negotiated between the peers
SN – Serial number of the IkEv2 SA used in association with the child SA. The algorithms for negotiation are picked from the IKE crypto profile configured under Network > IKE Crypto. The format is Authentication Method/DH Group/Encryption Algorithm/Authentication Algorithm

Example:
PSK/ DH2/A128/SHA1 :
PSK – Stands for Pre-shared key. This is the Authentication method (it can be pre-shared key or certificate).
DH2 – The DH (Deffie-Hellman) group negotiated
A128 – aes-128-cbc encryption algorithm negotiated
SHA1 – Authentication algorithm negotiated
Established – The date and time when the IKE SA was established between the peers.
Expiration – The date and time when the SA expires. This is from key lifetime configured under IKE Crypto

Explanation of Key Columns for IKEv2 IPSec Child SAs:

Gateway Name – The name of the gateway configured under Network > IKE Gateways
TnID - Tunnel ID – The internally generated (number) ID to uniquely identify the tunnel
Tunnel – The name of the tunnel configured under Network > IPSec Tunnels
Parent – The parent IKEv2 SA, the SN field of IKEv2 SA.
Role – The local device role in the IKE child SA negotiation
Init - Initiator – The local device initiated the IKE negotiation
Resp - Responder – The local device is the responder in the IKE negotiation, peer device initiated the connection
Algorithm – The Phase-2 algorithm negotiated between the peers
SPI (in) – The Security Parameter Index (SPI) to indicate receive SPI number. This is equal to the peer's SPI (out)
SPI (out) – The Security Parameter Index (SPI) to indicate transmit SPI number. This is equal to the peer's SPI (in)

Additional Information

We have changed the default IKE protocol version support from IKEv1 to IKEv2 in PAN-OS 11.2 and later releases:

https://docs.paloaltonetworks.com/pan-os/11-2/pan-os-release-notes/changes-to-default-behavior/changes-to-default-behavior-in-pan-os-11-2 PAN-OS 11.2 and later releases
