Unable to Delete Shared Service Object When Vsys Object with Duplicate Name is Used in Policy

Overview

The Palo Alto Networks device permits the use of duplicate Shared Service Object names if applied in a different vsys.

For example, the screenshot below shows:

• HTTP (TCP port 8080,shared Object)
• HTTP (TCP port 888,vsys Object)

Issue

The vsys Service Object has higher precedence than the shared one. The Vsys object overrides it in a specific vsys.

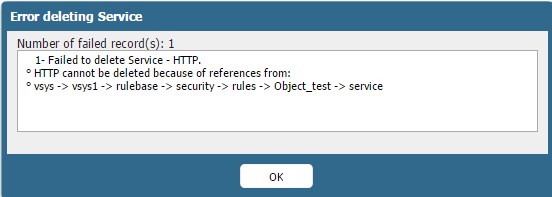

However, when an attempt is made to delete the duplicated Shared Service Object name in a rule (in which same name vsys Sevice Object is set), the error below appears:

         1- Failed to delete Service - HTTP

• HTTP cannot be deleted because of references from:
• vsys -> vsys1 -> rulebase -> security -> rules -> [policy name] -> service

Resolution

1. Remove the service object from the security policy which uses it.
2. Delete the object.
3. Add the shared one back into the policy.

See Also

Address/Address Group Objects Must Have Different Names

owner: tshimizu
