How to View Subnets in Traffic Log But Not Display the Complete IP Address

Overview

This document describes how to configure an Admin Role that can view subnets in the traffic logs but not see the complete IP addresses in the logs.

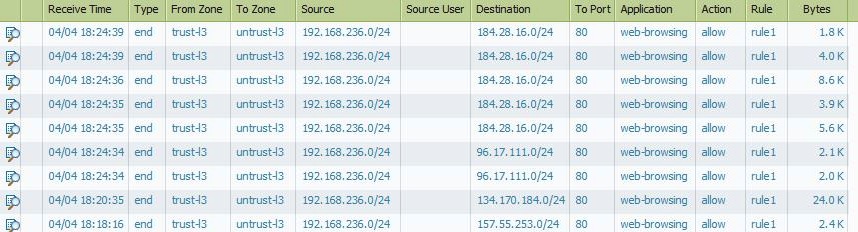

For example:

Steps

1. Go to Device > Admin Roles
2. Create a new Admin Role

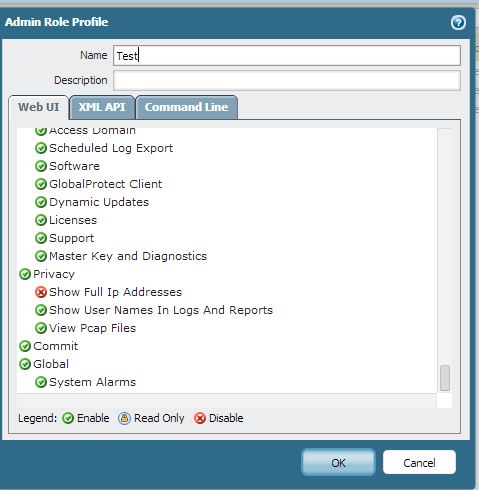

3. Under the Admin Role Profile window, go to the Web UI tab and scroll down to find the Privacy options.
4. Disable the "Show Full IP Addresses" option to prevent users of this role to see the full IP Addresses in the logs.
