What QOS Markings for IP Precedence are Available on the Palo Alto Networks Firewall?

The following IP Precedence values exist on the Palo Alto Networks firewall:

  cs0      codepoint 000

  cs1      codepoint 001

  cs2      codepoint 010

  cs3      codepoint 011

  cs4      codepoint 100

  cs5      codepoint 101

  cs6      codepoint 110

  cs7      codepoint 111

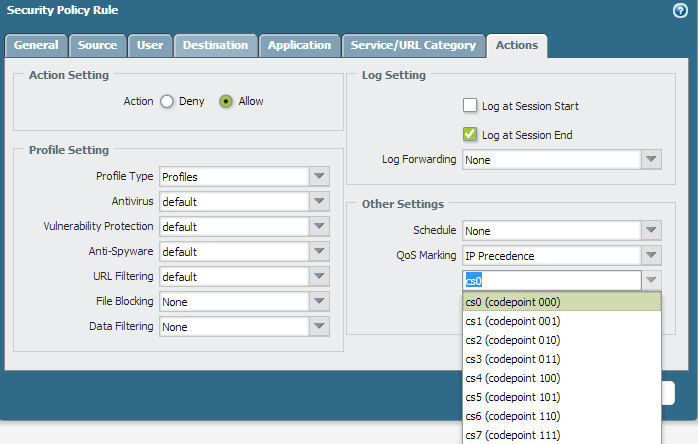

On the web UI, the values can be configured/viewed in the Security Policy Rule. Open/add a security rule and navigate to the Other Settings section under the Actions tab:

On the CLI, the values can be viewed while configuring a security policy:

> configure

# set vsys vsys1 rulebase security rules test qos marking ip-precedence

Note: Hit the <tab> key after entering "ip-precedence" above to see the values.
