How to Push Jumbo Frame Settings from Panorama to a Managed Device

How to Push Jumbo Frame Settings from Panorama to a Managed Device

38252
Created On 09/26/18 13:51 PM - Last Modified 02/07/19 23:41 PM


Resolution


Overview

This document describes the steps to push jumbo frame settings from Panorama to a Managed Palo Alto Networks device.



Steps

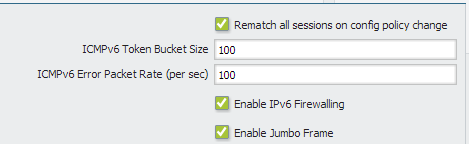

  1. Turn on Jumbo Frame settings on the supported device by Navigating to Device > Setup > Session
  2. Commit the configuration locally
  3. Reboot the Device (Device > Setup > Operations > Device Operations > Reboot Device)
  4. Login to Panorama

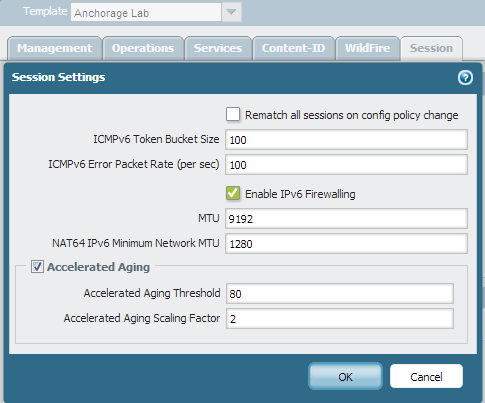

  5. Navigate to the Template tab and pull up the Device Group in question. Then, go to Setup > Session > MTU and configure a value.
  6. Perform a local Panorama commit
  7. Perform a Template commit



Note: If a template value is pushed when there is no MTU value configured on the device (value is set to blank or left as the default value), it will be reflected on the device. If the managed device has a MTU value configured, then the template value will not be displayed. Instead, the value configured on the device will be displayed.



owner: sraghunandan
