Useful CLI Commands to Troubleshoot LDAP Connection

(2768 Views)
Created On 09/26/18 13:51 PM - Last Updated 09/26/18 14:00 PM
Categories:  Content Release,  Deployment

Issue:


Solution:


Overview

This document describes the CLI commands that can be used to verify a successful connection to the LDAP server for pulling groups.



Details

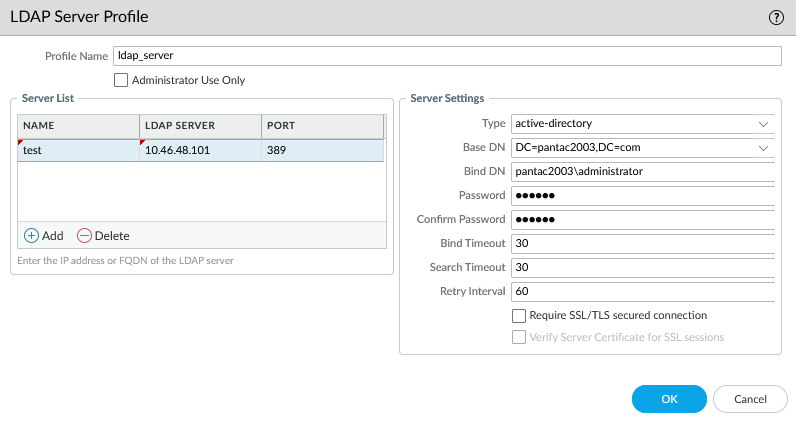

During LDAP server configuration, the device automatically pulls the Base DN if the connection is successful. The Base and Bind DN are configured under  Device > Server Profiles > LDAP:





Use the show user group-mapping state all command to view the LDAP connectivity if using the server profile for group mapping.

For example:

> show user group-mapping state all

Group Mapping (vsys1, type: active-directory) : grp_mapping

  Bind DN    : pantac2003\adminatrator

  Base       : DC=pantac2003,DC=com

  Group Filter: (None)

  User Filter: (None)

  Servers    : configured 1 servers

          10.46.48.101 (389)

                  Last Action Time: 2290 secs ago(took 71 secs)

                  Next Action Time: In 1310 secs

  Number of Groups: 121

  cn=administrators,cn=builtin,dc=pantac2003,dc=com

  cn=ras and ias servers,cn=users,dc=pantac2003,dc=com

  cn=s,cn=users,dc=pantac2003,dc=com



If the Bind DN entered on the Palo Alto Networks device under Device > Server Profiles > LDAP is incorrect, the output of the command will display "invalid credentials".

The example output below shows a scenario in which "cn=Administrator12" was entered, but the correct value was "cn=Administrator":

> show user group-mapping state all

Group Mapping (vsys1, type: active-directory) : grp_mapping

  Bind DN    : CN=Administrator12,CN=Users,DC=pantac2003,DC=com

  Base       : DC=pantac2003,DC=com

  Group Filter: (None)

  User Filter: (None)

  Servers    : configured 1 servers

          10.46.48.101 (389)

                  Last Action Time: 0 secs ago(took 0 secs)

                  Next Action Time: In 60 secs

                   Last LDAP error: Invalid credentials

  Number of Groups: 0



Errors can be pulled from the useridd log using the following command:

> less mp-log useridd.log

Dec 30 15:59:07 connecting to ldap://[10.46.48.101]:389 ...

Dec 30 15:59:07 Error: pan_ldap_bind_simple(pan_ldap.c:466): ldap_sasl_bind result return(49) : Invalid credentials

Dec 30 15:59:07 Error: pan_ldap_ctrl_connect(pan_ldap_ctrl.c:832): pan_ldap_bind()  failed

Dec 30 15:59:07 Error: pan_gm_data_connect_ctrl(pan_group_mapping.c:994): pan_ldap_ctrl_connect(grp_mapping, 10.46.48.101:389) failed

Dec 30 15:59:07 Error: pan_gm_data_connect_ctrl(pan_group_mapping.c:1061): ldap cfg grp_mapping failed connecting to server 10.46.48.101 index 0

Dec 30 15:59:07 Error: pan_gm_data_ldap_proc(pan_group_mapping.c:1942): pan_gm_data_connect_ctrl() failed

Dec 30 15:59:14 Warning: pan_ldap_ctrl_construct_groups(pan_ldap_ctrl.c:546): search aborted

Dec 30 15:59:16 Error: pan_ldap_ctrl_query_group_membership(pan_ldap_ctrl.c:2384): pan_ldap_ctrl_construct_groups() failed

Dec 30 15:59:16 Error: pan_gm_data_update(pan_group_mapping.c:1431): pan_ldap_ctrl_query_group_membership()  failed

Dec 30 15:59:16 Error: pan_gm_data_ldap_proc(pan_group_mapping.c:1976): pan_gm_data_update() failed

Dec 30 16:00:07 connecting to ldap://[10.46.48.101]:389 ...

Dec 30 16:00:07 Error: pan_ldap_bind_simple(pan_ldap.c:466): ldap_sasl_bind result return(49) : Invalid credentials

Dec 30 16:00:07 Error: pan_ldap_ctrl_connect(pan_ldap_ctrl.c:832): pan_ldap_bind()  failed

Dec 30 16:00:07 Error: pan_gm_data_connect_ctrl(pan_group_mapping.c:994): pan_ldap_ctrl_connect(grp_mapping, 10.46.48.101:389) failed



Command to re-establish the link to the LDAP server

> debug user-id reset group-mapping <grp_mapping_name>



Command to set LDAP debug

> debug user-id set ldap all



Command to turn on debug

> debug user-id on debug



Command to turn off debug

> debug user-id off



Command to capture LDAP traffic if using management port

> tcpdump filter "port 389"



Command to capture LDAPS (SSL) traffic if using management port

> tcpdump filter "port 636"



Command to view the pcap taken off the management port

> view-pcap mgmt-pcap mgmt.pcap



Command to export the pcap to an external host by scp or tftp

> scp export mgmt-pcap from mgmt.pcap to username@host:path

> tftp export mgmt-pcap from mgmt.pcap to <tftp host>
