HA Error after PAN-OS Upgrade: High-availability HA2 interface needs a prefix length""

Issue

After performing a PAN-OS upgrade, the running configuration fails to synchronize from the active to passive member with the following error message:

Details: High-availability HA2 interface needs a prefix length (Module: ha_agent)

Commit failed

The HA fails to sync the running the configuration upon commit from the WebUI and also from the CLI.

Cause

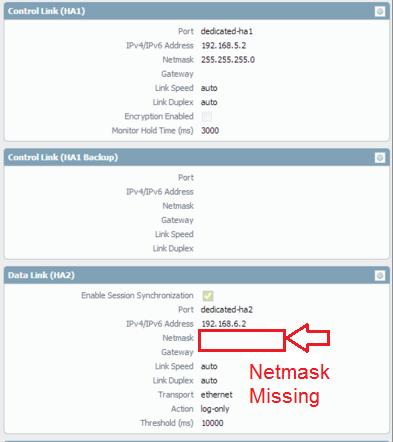

The issue occurs because the HA settings imported from an older PAN-OS version were lost or not needed. The result is a missing Netmask from the HA2 interface.

Resolution:

1. Edit the passive HA2 interface and enter the missing Netmask info.
   Go to Device > High Availability > General and click on the edit icon for HA2.

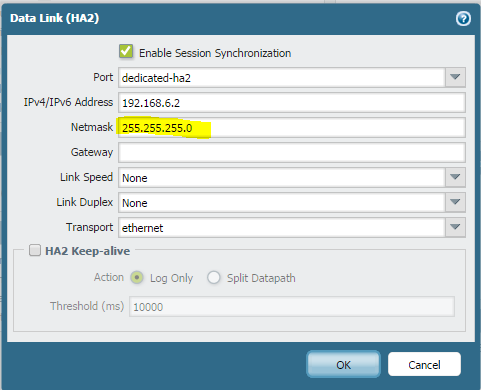

2. Enter the Netmask that corresponds to the HA2 IP address, as shown below:

3. Click OK and commit. The commit should complete without errors.
