Traceroute and Traceroute6 Through the Palo Alto Networks firewall
Resolution
Dataplane interfaces responding to traceroute or traceroute6 UDP probes
The firewall will not respond on any interface to traceroute/traceroute6 UDP or TCP probes directed to the firewall's dataplane ports.
Traceroute through the Palo Alto Networks firewall
Make sure to allow application 'traceroute' on your security policy. GRE probes are identified as appliction 'gre'.
Traceroute6 through the Palo Alto Networks firewall
Apply ICMP probes when using traceroute6, as the Palo Alto Networks firewall does not have a signature to identify traceroute6 UDP or TCP probes with App-ID. The traceroute6 ICMP probes will be identified by the App-ID engine as 'ipv6-icmp'. Application 'ipv6-icmp' must be allowed for traceroute6 traffic.

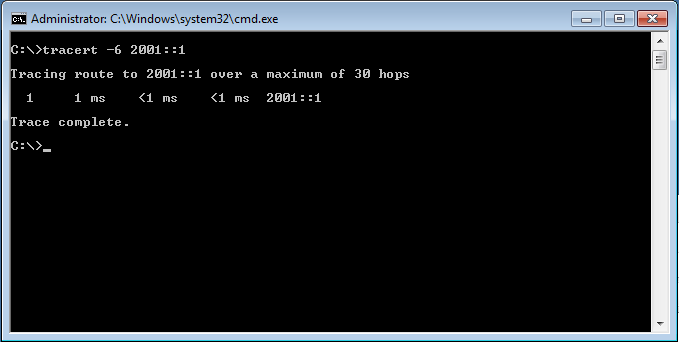

On Windows: tracert -6 <IPv6_Address>
On Linux: sudo traceroute -6 -I <IPv6_Address>
On MAC OS X: traceroute6 -I <IPv6_Address>

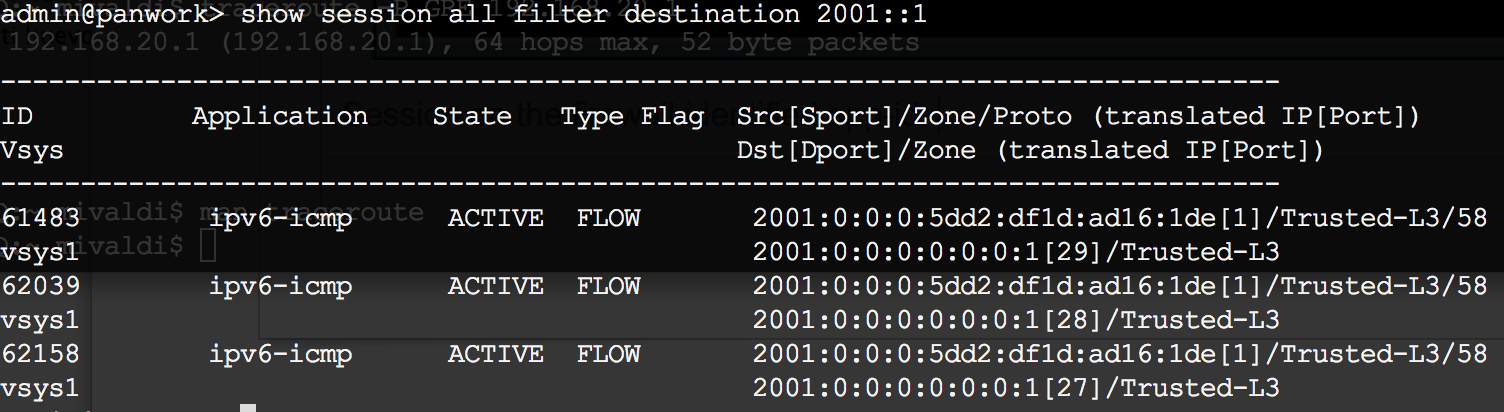

Example of a session on the firewall identifying the application, ipv6-icmp:
