How to Troubleshoot LDAP Authentication

270579
Created On 09/26/18 13:48 PM - Last Modified 01/10/24 15:45 PM


Resolution


Overview

This document describes how to troubleshoot the following LDAP authentication issue:

LDAP authentication is configured for device administration, captive portal or GlobalProtect; however, authentication requests always fail.



Preliminary assumptions:

  • The LDAP server is a Microsoft Active Directory server.
  • Allow List is not used in the authentication profile. (Allow List usage can lead to other kind of issues, which are outside the scope of this document)



Steps

The authentication process is handled in the Management Plane by the authd process. All debugs logs will be located in mp-log authd.log

1.   Check the LDAP server profile:

# show shared server-profile ldap

ldap {

  ad2008 {

    server {

      myadserver {

        port 389;

        address 10.0.0.10;

      }

    }

    ldap-type active-directory;

    base DC=panw,DC=dom;

    bind-dn admin@panw.dom;

    timelimit 30;

    bind-timelimit 30;

    bind-password -AQ==LEkLjmi5LnnONEwl89h/wpfRI0Y=AgBprzhy+CcbuOsMVp+mJg==;

    ssl no;

  }

}



1.1   TCP port 389 is used for regular LDAP. When using port 389, be sure to have disabled SSL (ssl no;).

If SSL is enabled, make sure the LDAP server supports LDAPS and check to ensure that TCP is configured to port 636 in your server profile (LDAPS default port).

# show shared server-profile ldap

ldap {

  ad2008 {

    server {

      myadserver {

        port 636;

        address 10.0.0.10;

      }

    }

    ldap-type active-directory;

    base DC=panw,DC=dom;

    bind-dn admin@panw.dom;

    timelimit 30;

    bind-timelimit 30;

    bind-password -AQ==LEkLjmi5LnnONEwl89h/wpfRI0Y=AgBprzhy+CcbuOsMVp+mJg==;

    ssl yes;

  }

}



1.2   The Base DN should be acquired automatically from the Palo Alto Networks device when the Base dropdown list is selected in the LDAP Server Profile (Device > LDAP > LDAP Server Profile). It is highly recommend to use this value for the LDAP server Base.



1.3   In the LDAP Server Profile, the Domain name can be configured manually. Leaving this field blank is recommend, as the PAN-OS will determine the Domain automatically. This option is used in very specific situations when several AD domains need to be unified to a single one.



1.4   A good way to check the LDAP connection is by using the LDAP tree browser when configuring Group-Mapping (choose the appropriate LDAP server in the Server Profile).

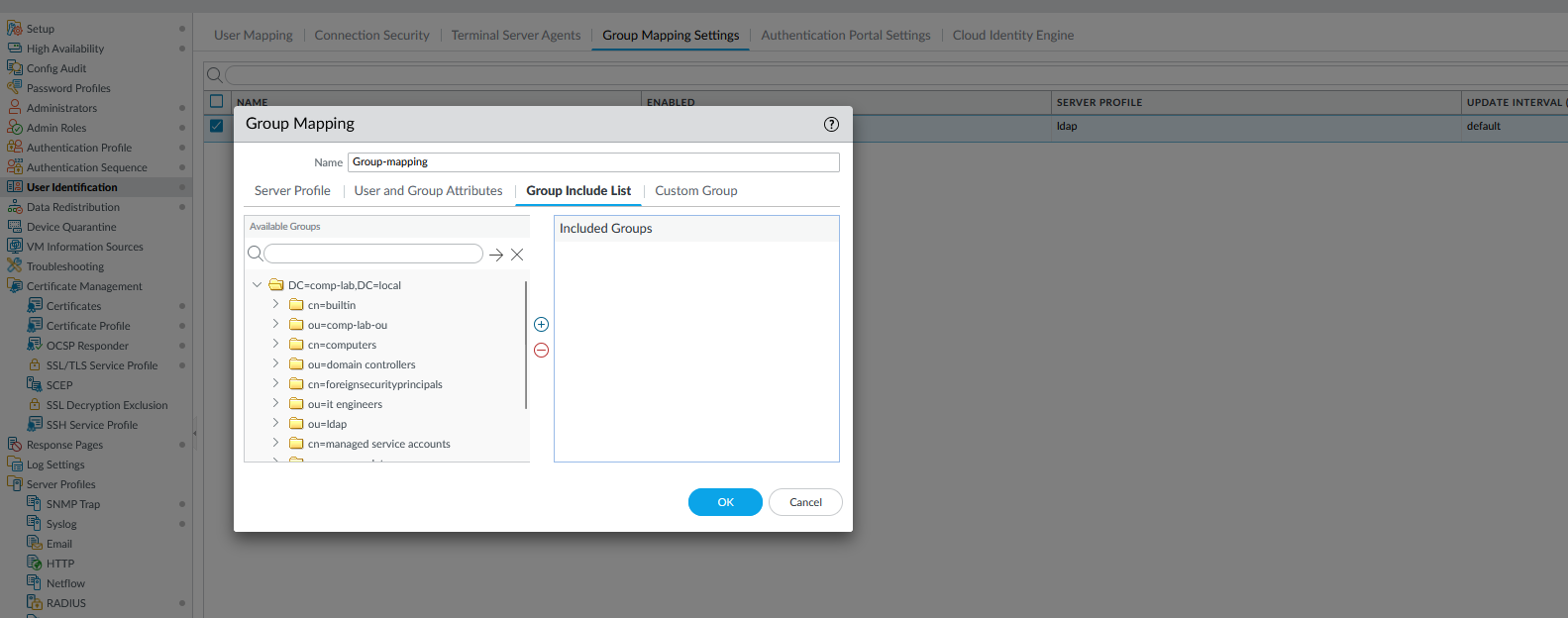

group-mapping
If able to browse LDAP, then the LDAP server profile is correctly configured.



2.  Check authd.log

When following authd.log with # tail follow yes mp-log authd.log, the following entries will typically appear:

Authentication Succeeded

Jan 08 14:00:46 pan_authd_service_req(pan_authd.c:2604): Authd:Trying to remote authenticate user: user1

Jan 08 14:00:46 pan_authd_service_auth_req(pan_authd.c:1115): AUTH Request <'vsys1','adauth','user1'>

Jan 08 14:00:46 pan_authd_handle_nonadmin_auths(pan_authd.c:2245): vsys, authprof <vsys1,adauth> doesnot exist in db, trying 'shared' vsys

Jan 08 14:00:46 pan_authd_common_authenticate(pan_authd.c:1511): Authenticating user using service /etc/pam.d/pan_ldap_shared_adauth_0,username user1

Jan 08 14:00:46 pan_authd_authenticate_service(pan_authd.c:663): authentication succeeded (0)

Authentication Failed

Jan 09 23:21:15 pan_authd_service_req(pan_authd.c:2604): Authd:Trying to remote authenticate user: user1

Jan 09 23:21:15 pan_authd_service_auth_req(pan_authd.c:1115): AUTH Request <'vsys1','adauth','user1'>

Jan 09 23:21:15 pan_authd_handle_nonadmin_auths(pan_authd.c:2245): vsys, authprof <vsys1,adauth> doesnot exist in db, trying 'shared' vsys

Jan 09 23:21:15 pan_authd_common_authenticate(pan_authd.c:1511): Authenticating user using service /etc/pam.d/pan_ldap_shared_adauth_0,username user1

Jan 09 23:21:21 pan_authd_authenticate_service(pan_authd.c:663): authentication failed (6)

Jan 09 23:21:21 pan_authd_common_authenticate(pan_authd.c:1531): Authenticating user using service /etc/pam.d/pan_ldap_shared_adauth_0,usename user1 failed - trying other hosts

Jan 09 23:21:21 pan_authd_common_authenticate(pan_authd.c:1506): Skipping LDAP server due to missing Auth-Profile: pan_ldap_shared_adauth_1

Jan 09 23:21:21 pan_authd_common_authenticate(pan_authd.c:1506): Skipping LDAP server due to missing Auth-Profile: pan_ldap_shared_adauth_2

Jan 09 23:21:21 pan_authd_common_authenticate(pan_authd.c:1506): Skipping LDAP server due to missing Auth-Profile: pan_ldap_shared_adauth_3

Jan 09 23:21:21 authentication failed for user <shared,adauth,user1>

Jan 09 23:21:21 pan_authd_process_authresult(pan_authd.c:1258): pan_authd_process_authresult: user1 authresult not auth'ed

Jan 09 23:21:21 pan_authd_process_authresult(pan_authd.c:1282): Alarm generation set to: False.

Jan 09 23:21:21 User 'user1' failed authentication.  Reason: Invalid username/password From: 192.168.0.17



These logs for failed attempts are very generic and can be confusing.

The same logs can be seen for various causes:

    • The LDAP server is not reachable (check the service routes)
    • User does not exist in LDAP server
    • Username and/or Password is wrong
    • Bind DN format in the server profile and/or Password is wrong



3.  Check Service Routes

If a service route has been configured for UID agent service, Group Mapping test will work while LDAP authentication may fail because the Palo Alto Networks device is still using the management interface as the source for LDAP authentication requests.

Indeed, group-mapping is managed by the useridd process and will use its dedicated service route (UID agent). As mentioned before, authentication service is achieved by authd process and it is not possible to configure a dedicated route for this service.

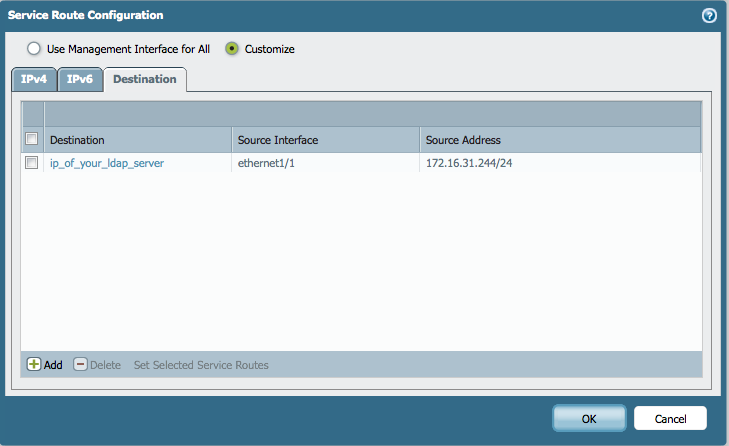

If the mgmt interface is not used for LDAP authentication requests, an individual service route with the LDAP server IP address in destination must be configured, as shown below:

Service route.jpgService_route.png



owner: nbilly
