How to Export Backups of Managed Device Configuration Files from Panorama

How to Export Backups of Managed Device Configuration Files from Panorama

76169
Created On 09/25/18 20:39 PM - Last Modified 06/14/23 07:15 AM


Resolution


Overview

This document describes how to export backups of managed device configuration files from Panorama.



Steps

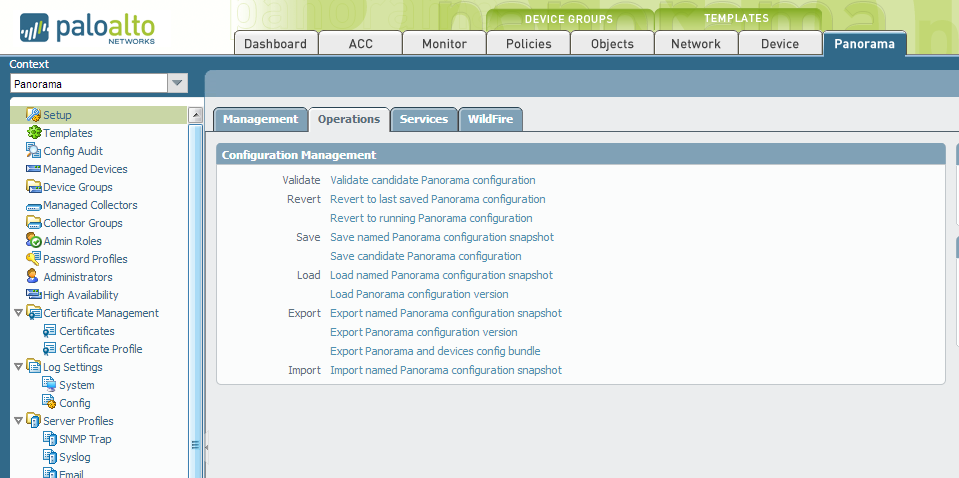

  1. Go to Panorama > Setup > Operations and click "Export Panorama and devices config bundle".
  2. Save the compressed file to local disk and decompress to access all the current device configuration files.

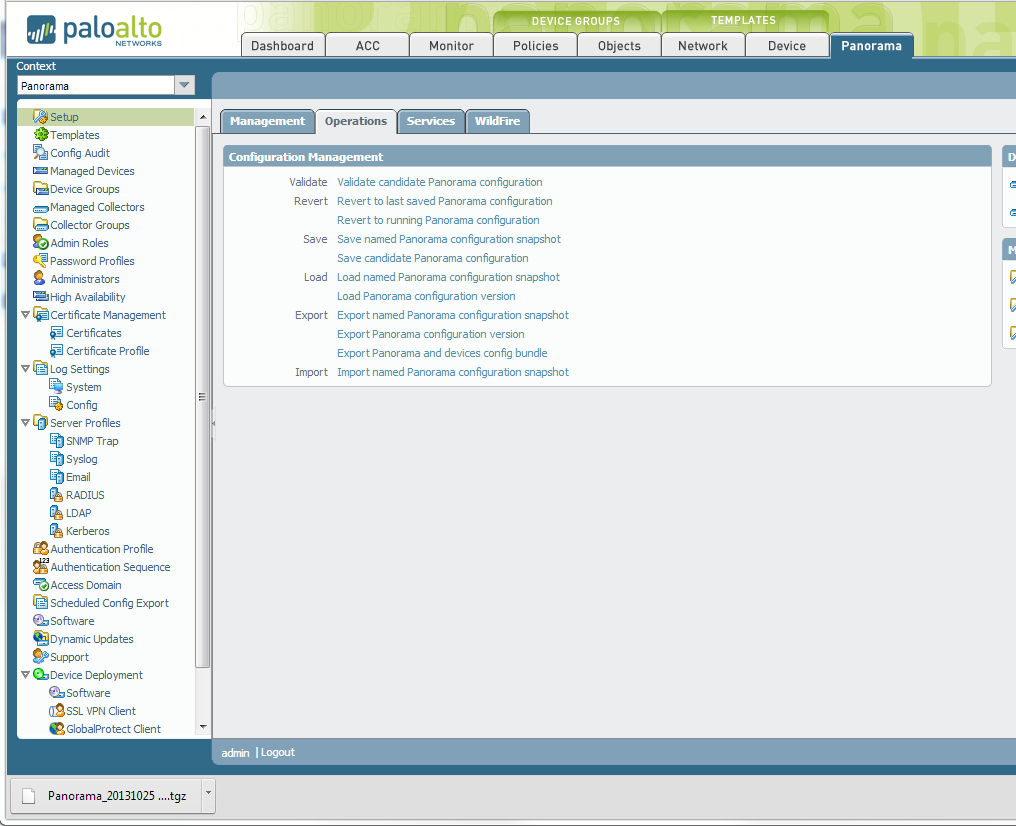

    Note: The downloaded filenames appear in different areas depending on the web browser brand and version. The above screenshot shows the saved file on the lower bottom-left as "Panorama_20131025.tgz".

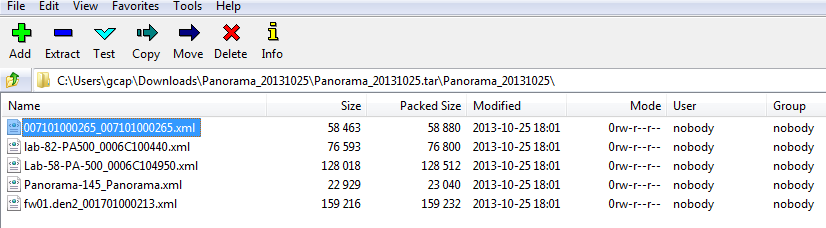

The following screenshot shows an example of a downloaded file (Panorama_20131025.tgz) decompressed with 7zip to display individual Palo Alto Networks device configuration files:



owner: gcapuno
