How to Check Throughput of Interfaces - Knowledge Base - Palo Alto Networks

How to Check Throughput of Interfaces

388452
Created On 09/25/18 20:36 PM - Last Modified 08/05/24 14:14 PM


Environment


This document describes how to check the throughput of interfaces using the show system state browser command.

Overview

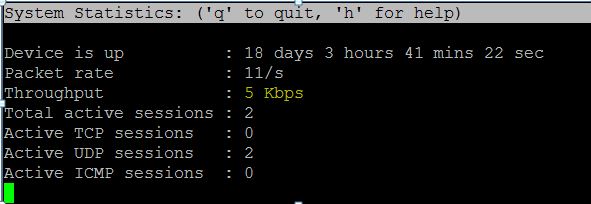

When using the following CLI command, the offloaded traffic is not shown:

> show system statistics session




Resolution




Steps

  1. To see the entire statistics, run the show system state browser command:
    > show system state browser

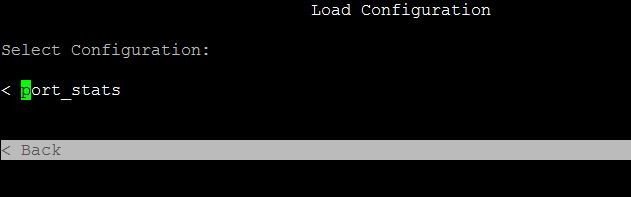

  1. Press Shift+ L and click on port stats

  1. Press 'Y' and then 'U'. The information for the first 20 ports will be displayed. To see additional ports, press the space bar and change the port value under the node.

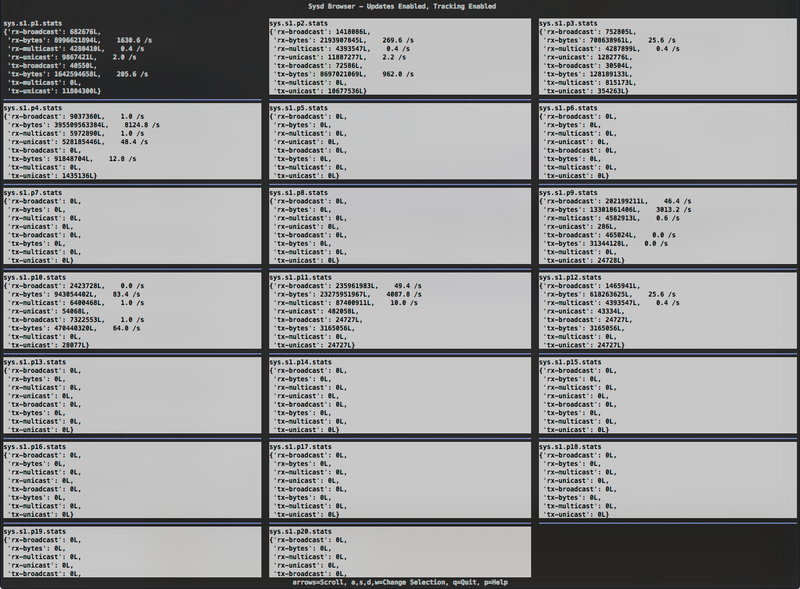

    ssytem stat updates tracking enabled.png
system state with updates and tracking enabled

4.To exit out of CLI press Ctrl+C

owner: ukhapre
