Unable to Add VLAN Tag to Layer-3 Interface

5907
Created On 08/05/19 20:23 PM - Last Updated 08/05/19 20:36 PM
Mobile Network Infrastructure
Resolution

Issue

Unable to add a VLAN tag to a physical layer-3 interface.



Resolution

When a physical interface needs to be configured to handle VLANs, sub-interfaces need to be created (one per VLAN).  The sub-interfaces are configured with the tag, and show as "tagged" when looking at the list of interfaces (see example), as opposed to the physical interface itself.

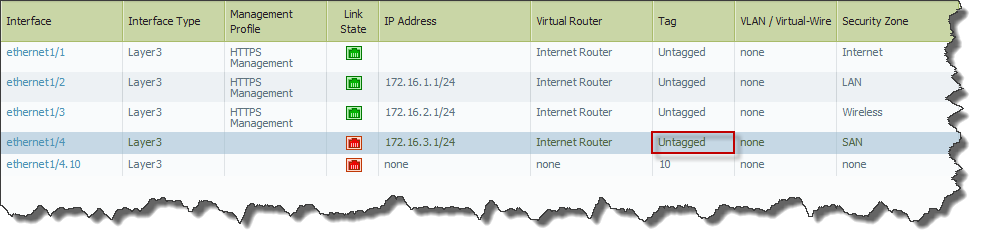

9-19-2012 9-49-56 AM.png

The example shows that ethernet1/4 remains untagged while its sub-interface (ethernet1/4.10) shows the VLAN tag ID.

Not being able to apply a VLAN ID on the physical interface is normal, expected behavior.
