Kerberos SSO fails with error 'GSS_S_Failure'

This article examines reasons for SSO faliure with error 'GSS_S_Failure.'

For information related to configuring Kerberos for Admin or Captive portal authentication, please click here

Details:

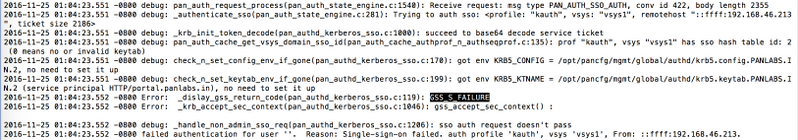

Error message in authd logs while Kerberos SSO authentication:

 Reason 1:

- Algorithm used while generating keytab is different from algorithm used while TGS issues service ticket to the clients.

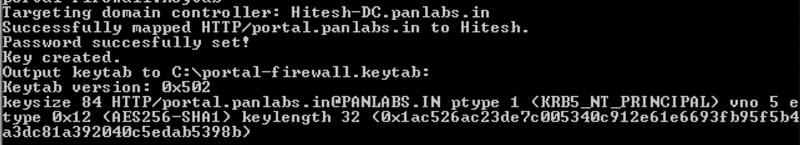

Keytab was generated using algorithm AES256-SHA1 while the service ticket issued to client by TGS uses the default algorithm RC4-HMAC

In this case, either the keytab should also be generated using default algorithm RC4-HMAC or Kerberos administrator should be contacted to configure same algorithm for issuing service tickets.

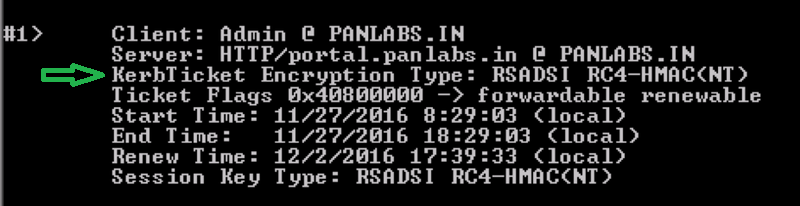

NOTE:  Algorithm for "KerbTicket Encryption Type" in above mentioned O/P should match with the algorithm used while generating keytab.

Reason 2:

Window/Linux client instance, KDC and/or the firewall has a time difference of more than ~3-4 mins. It is always better to have their time in sync for SSO to operate correctly.
