Can OSPF Route Suppression Address Range Include a Default Route?
Resolution
Issue
A user is using a default route 0.0.0.0/0 to suppress all the routes learnt from one area (for this scenario, it is Area 1) from being sent to another area (Area 0). But route suppression does not occur and the routes are still advertised to Area 0.
Resolution
The Palo Alto Networks device only does Type 3 summary-LSA summarization, for example, users can either advertise or suppress only Inter-Area routes. The receiving area will see the LSA as a Type 3 summary-LSA with the Link State ID as the summarized link State ID. Hence, the address range used on the ABR is always of the type "IP address/mask" of the routes learnt from the receiving area. It cannot be a default route 0.0.0.0/0, and the default route does not play any role with route suppression or advertisement. The address range used for route suppression must always be a supernet address that contains the actual or learnt IP address that needs to be suppressed.
"Per RFC 2328, (RFC uses the term DoNotAdvertise and Palo Alto Networks uses the term Suppress)
List of address ranges: An OSPF area is defined as a list of address ranges. It describes the collection of IP addresses contained in the address range. Remember that an area has a configured list of address ranges, each range consisting of an [address,mask] pair and a status indication of either; Advertise or DoNotAdvertise. At most, a single Type 3 summary-LSA is originated for each range. When the range's status indicates DoNotAdvertise, the Type 3 summary-LSA is suppressed and the component networks remain hidden from other areas."
Note: Route Summarization (route suppression or advertisement) is always configured on the ABR of the ingress area where the routes are learnt. Here the ingress area is Area 1, 0.0.0.1.
Review the following example:
Firewall A (Router ID 1.1.1.1) and Firewall B (Router ID 2.2.2.2) belong to the backbone Area 0. Firewall C (Router ID 3.3.3.3) is in Area 1 with one of its interfaces connected to Firewall B. Firewall B is an ABR which needs to suppress the routes 192.168.32.0/24 and 7.7.7.0/24 learnt from Firewall C and not advertise them to Firewall A.
Non-working scenario: Default route 0.0.0.0/0 is used for route suppression.

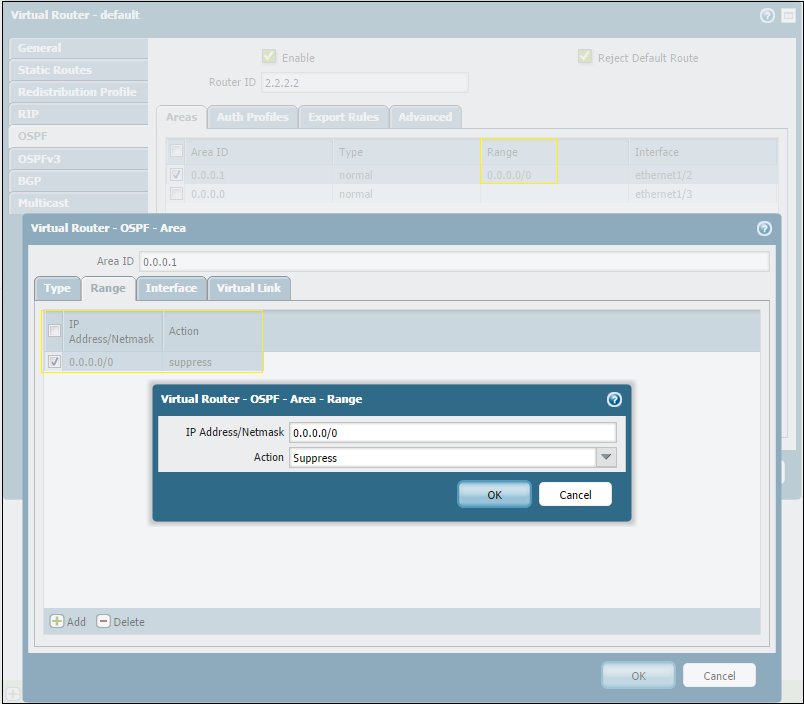

The address range used for route suppression on Firewall B is 0.0.0.0/0 is shown below. The following screenshot is from Firewall B, the ABR, which has to suppress the routes learnt from Firewall C in Area 1. Rather than using an address range, 0.0.0.0/0 is used to suppress the routes learnt from Area 1.
Now, the link state database on Firewall A still shows the routes 192.168.32.0/24 and 7.7.7.0/24 advertised as a Type 3 summary-LSA from the ABR:
> show routing protocol ospf lsdb
VIRTUAL ROUTER: default (id 1)
==========
VR Area ID Orig RTR ID LS ID LSA Type Seq Number CheckSum Age Size
1 0.0.0.0 1.1.1.1 1.1.1.1 type-1 (Router) 0x80000003 0x00004EAF 1163 48
1 0.0.0.0 2.2.2.2 2.2.2.2 type-1 (Router) 0x80000003 0x0000CF61 1164 48
1 0.0.0.0 2.2.2.2 7.7.7.0/24 type-3 (Summary) 0x80000002 0x000094A0 1194 28
1 0.0.0.0 2.2.2.2 192.168.32.0/24 type-3 (Summary) 0x80000001 0x0000E4D2 674 28
1 0.0.0.0 2.2.2.2 3.3.3.3 type-4 (AS summary) 0x80000002 0x0000F844 1180 28
> show routing route type ospf
VIRTUAL ROUTER: default (id 1)
==========
destination nexthop metric flags age interface next-AS
7.7.7.0/24 10.66.24.31 20 A Oo 3048 ethernet1/3
10.66.24.0/23 0.0.0.0 10 Oi 3048 ethernet1/3
192.168.32.0/24 10.66.24.31 30 A Oo 769 ethernet1/3
Working Scenario: Address range, a supernet address is used for route suppression.

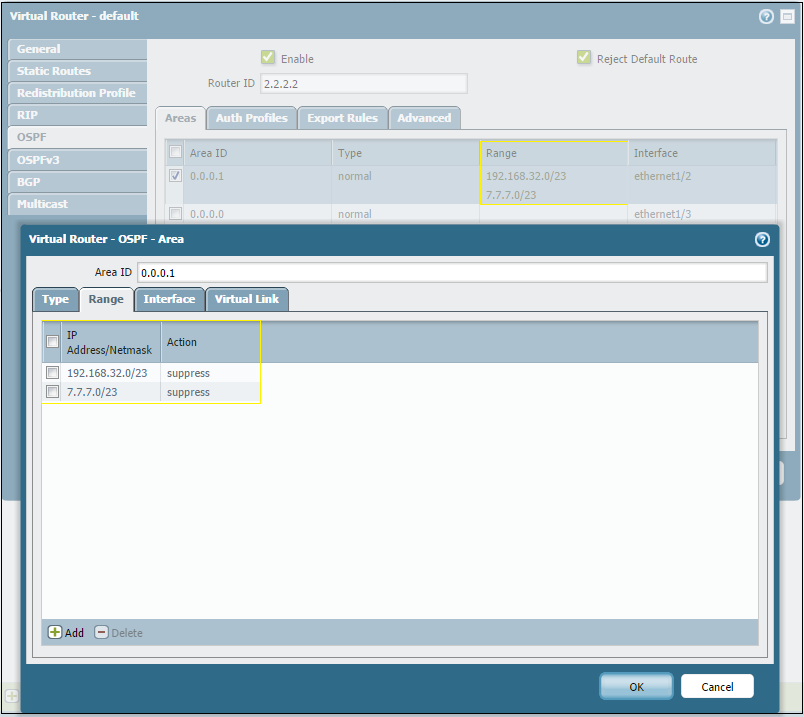

Use a supernet address that contains the routes to be suppressed. The following screenshot is from Firewall B, which has to suppress the routes learnt from Firewall C in Area 1. Supernet address 192.168.32.0/23 is used to suppress 192.168.32.0/24 and 7.7.7.0/23 is used to suppress 7.7.7.0/24:
Now, the link state database on Firewall A does not show the routes 192.168.32.0/24 and 7.7.7.0/24:
> show routing protocol ospf lsdb
VIRTUAL ROUTER: default (id 1)
==========
VR Area ID Orig RTR ID LS ID LSA Type Seq Number CheckSum Age Size
1 0.0.0.0 1.1.1.1 1.1.1.1 type-1 (Router) 0x80000004 0x00004CB0 251 48
1 0.0.0.0 2.2.2.2 2.2.2.2 type-1 (Router) 0x80000004 0x0000CD62 251 48
1 0.0.0.0 2.2.2.2 3.3.3.3 type-4 (AS summary) 0x80000003 0x0000F645 267 28
> show routing route type ospf
VIRTUAL ROUTER: default (id 1)
==========
destination nexthop metric flags age interface next-AS
10.66.24.0/23 0.0.0.0 10 Oi 4003 ethernet1/3
total routes shown: 1
