How to Register and Activate Eval Panorama Software

27276
Created On 07/18/19 21:17 PM - Last Updated 10/17/19 13:27 PM
Device Management Initial Configuration Installation QoS Zone and DoS Protection
Resolution

How to Register and Activate Eval Panorama Software



The following procedure walks you through the steps to license, download, and install the Panorama management software.

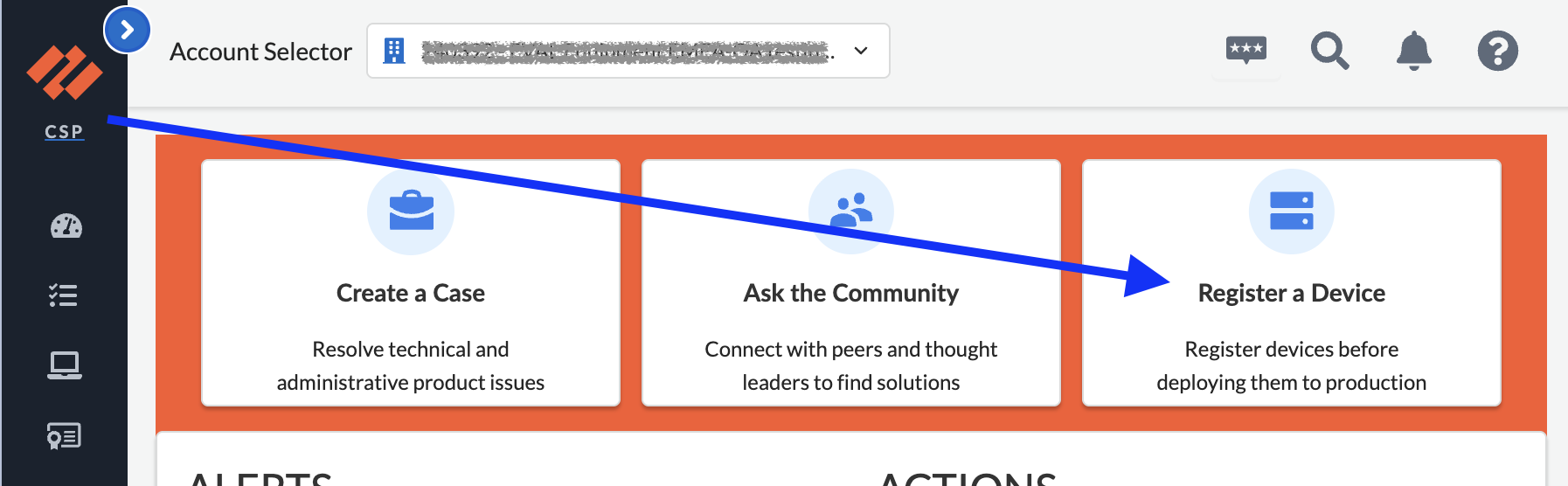

STEP 1 | Register the Panorama Serial #

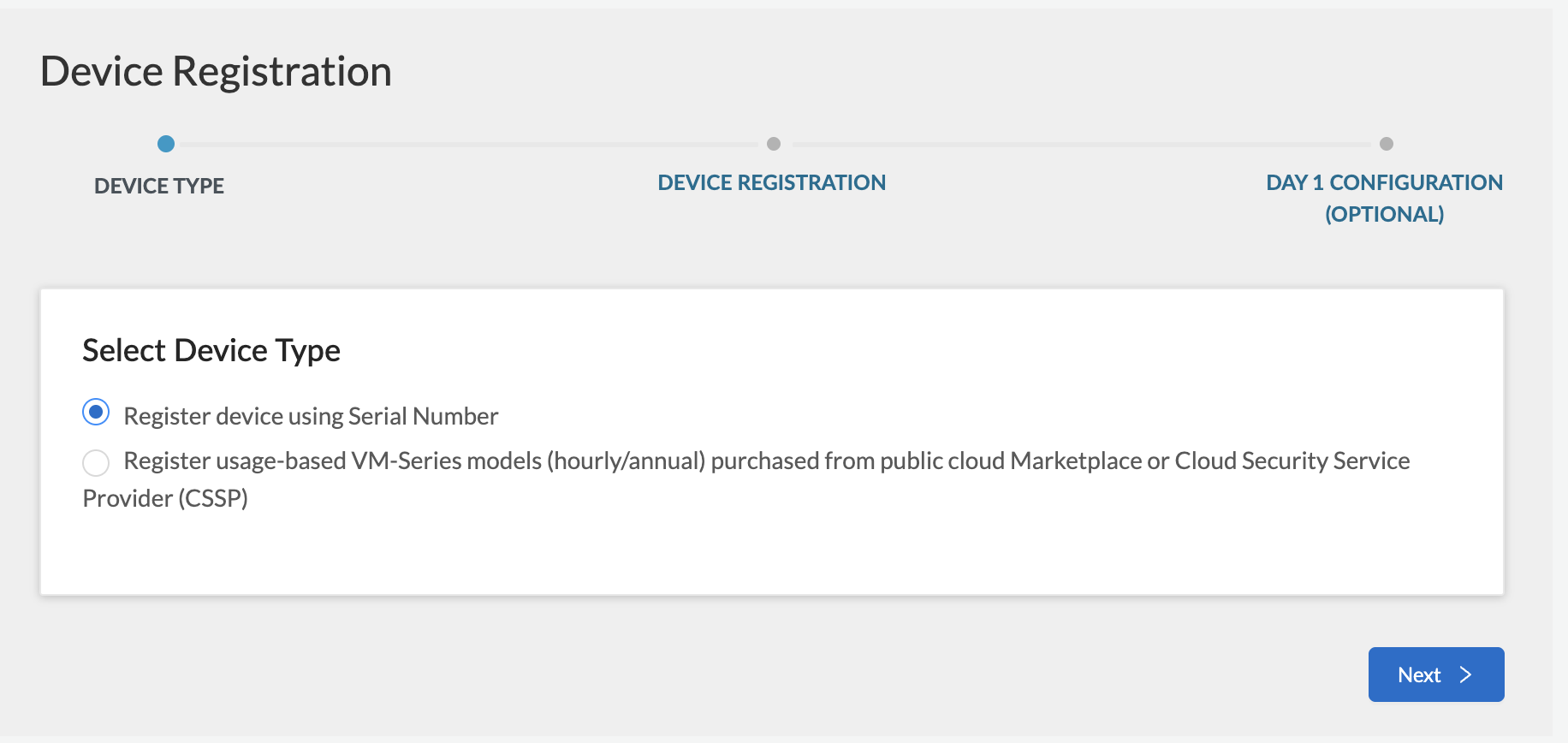

  • In the Device Type window, select Register device using Serial Number or Authorization Code and click Next

  • To activate the Panorama software, enter the Serial Number you received in the “Request for Software Evaluation Approved” email

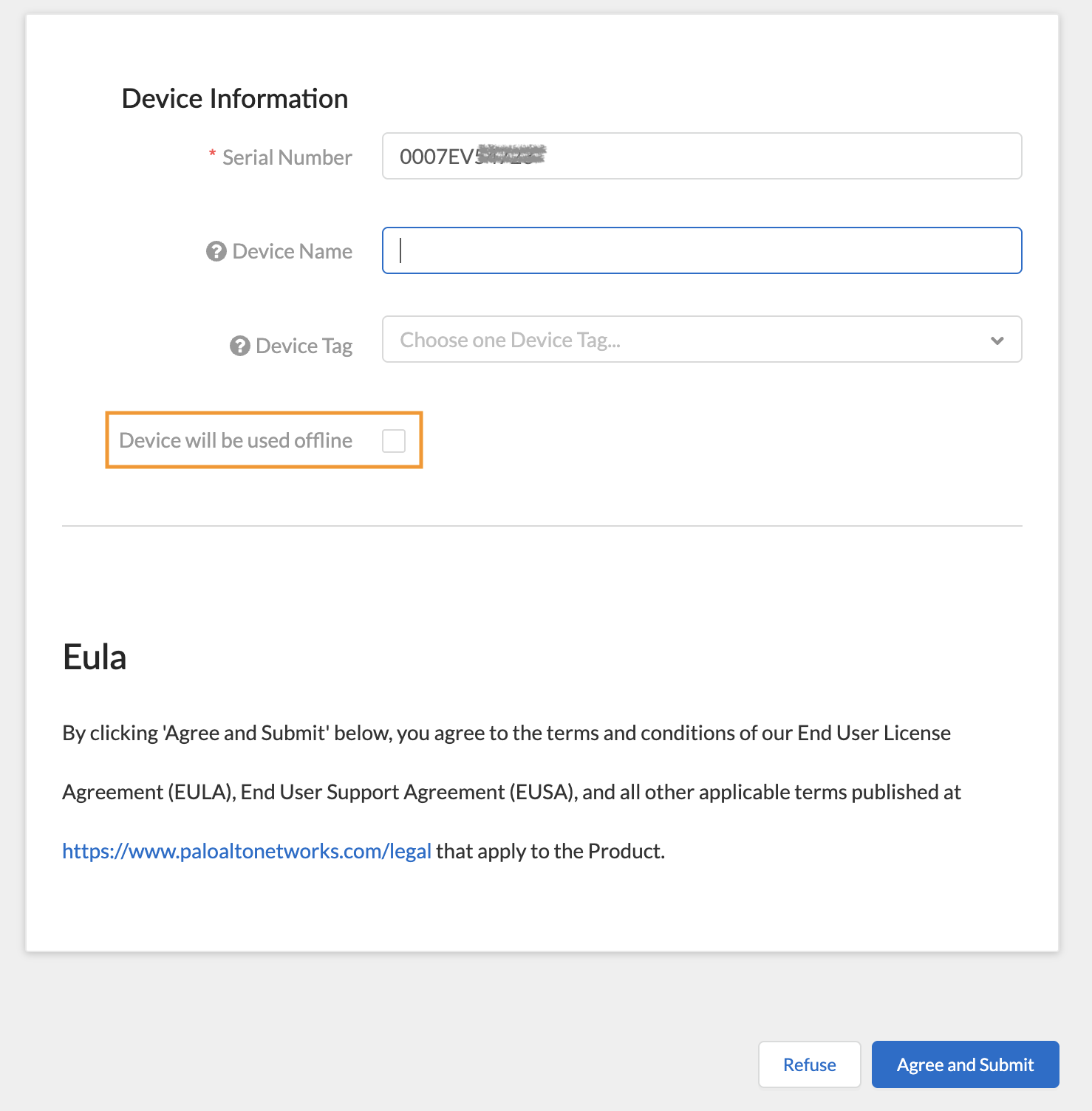

    • If the Panorama software will be used offline and not connected to the internet, then click the checkbox "Device will be used Offline:" and enter the additional required info.



  • Review the EULA and Support Agreement
  • If you Agree, click Agree and Submit.
  • After successful registration, your Assets screen should display the newly registered and activated Eval Panorama.

STEP 2 | Download the Panorama software

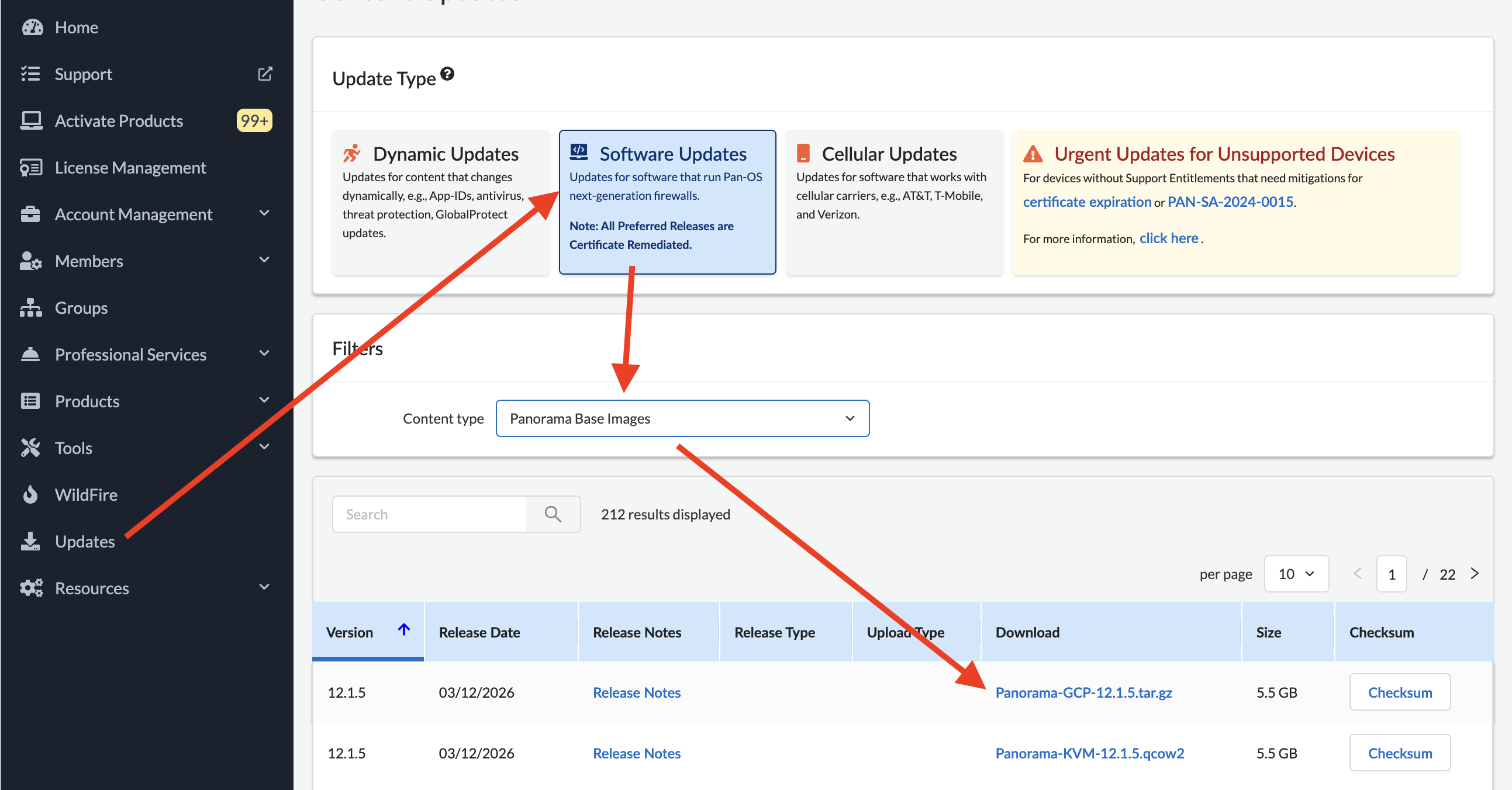

  • In the navigation menu, click Updates > Software Updates
  • Click the Filter By: drop down menu and select Panorama Base Images
  • Locate the most recent base image that will be used for your environment and click the corresponding download link



STEP 3 | Install the Panorama software



STEP 4 | Activate the support license on Panorama

  • Open a web browser and navigate to the management IP address you set for Panorama
  • Login using the factory default credentials of admin/admin for username and password

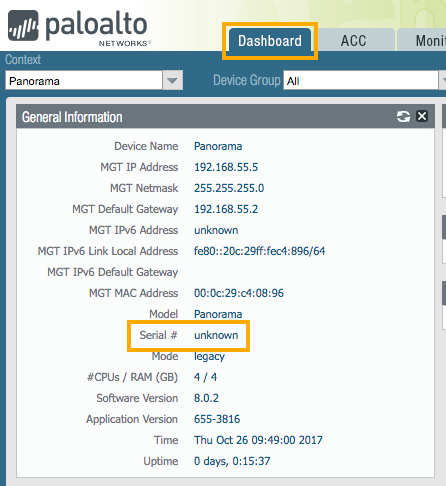

  • On the Dashboard > General Information section, the Serial # field should say “Unknown”

Screen Shot 2017-10-26 at 11.48.58 AM.png

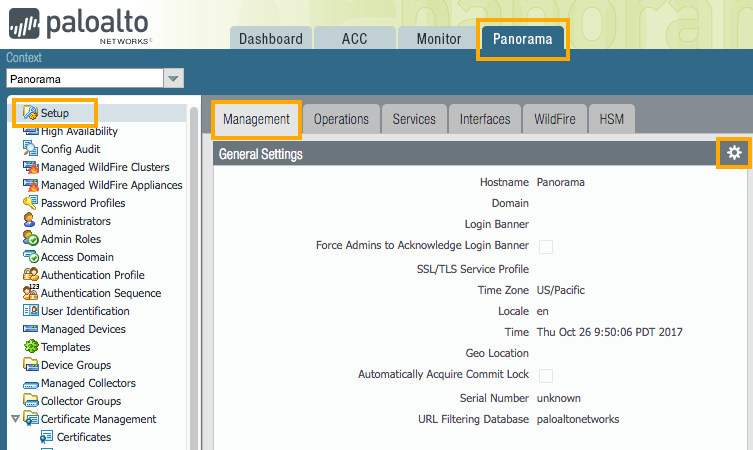

  • Go to Panorama > Setup > Management > General Settings. Click the settings wheel.

Screen Shot 2017-10-26 at 11.53.57 AM.png

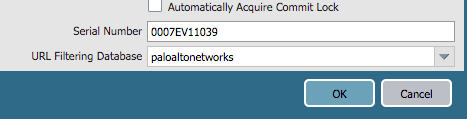

  • In the pop-up window, enter the Evaluation Panorama Serial # that you registered on the support portal. Click OK

Screen Shot 2017-10-26 at 11.58.34 AM.png



  • Click Commit at the top right corner and then Commit to Panorama to commit any pending changes.

Screen Shot 2017-10-26 at 11.59.54 AM.png

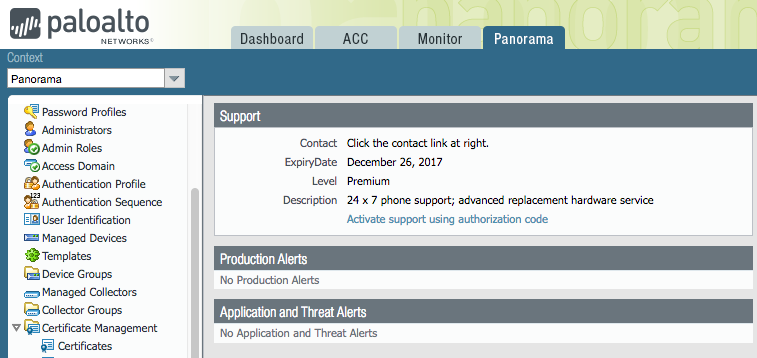

  • Go to Panorama > Support
    • If the Support license is not displayed here, you will need to reboot Panorama for the system to display the license info.

Screen Shot 2017-10-26 at 12.09.41 PM.png

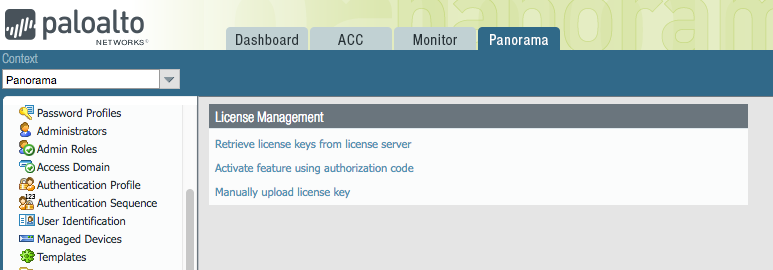

  • Go to Panorama > Licenses, click "Retrieve license keys from license server."
    • If your Panorama is being used offline, you will need to download the license keys from the Support Portal on the Assets > Devices screen, then use the link in Panorama named "Manually upload license key".

Screen Shot 2017-10-26 at 12.12.07 PM.png

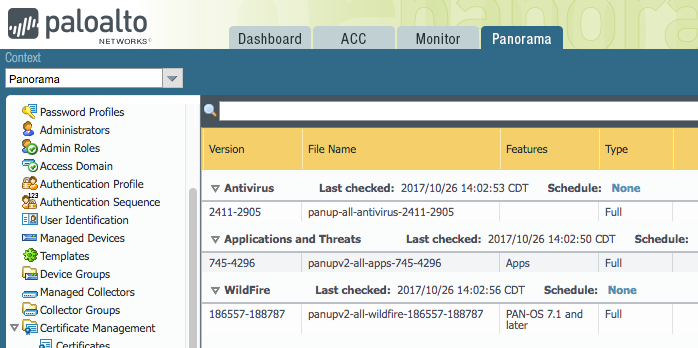

  • Go to Panorama > Dynamic Updates to download the latest Apps & Threats, WildFire, and Antivirus content updates

Screen Shot 2017-10-26 at 12.12.39 PM.png

  • Go to Panorama > Software to download the latest software version if needed



STEP 5Complete the Panorama software configuration
