User-ID Agent Access Control List

User-ID Agent Access Control List

38738
Created On 09/25/18 19:25 PM - Last Modified 03/13/21 03:20 AM


Symptom


The article explains how the User-ID Agent Access Control List works.

Environment


  • Palo Alto Firewall.
  • Any PAN-OS.
  • Access Control List.

Resolution


Details

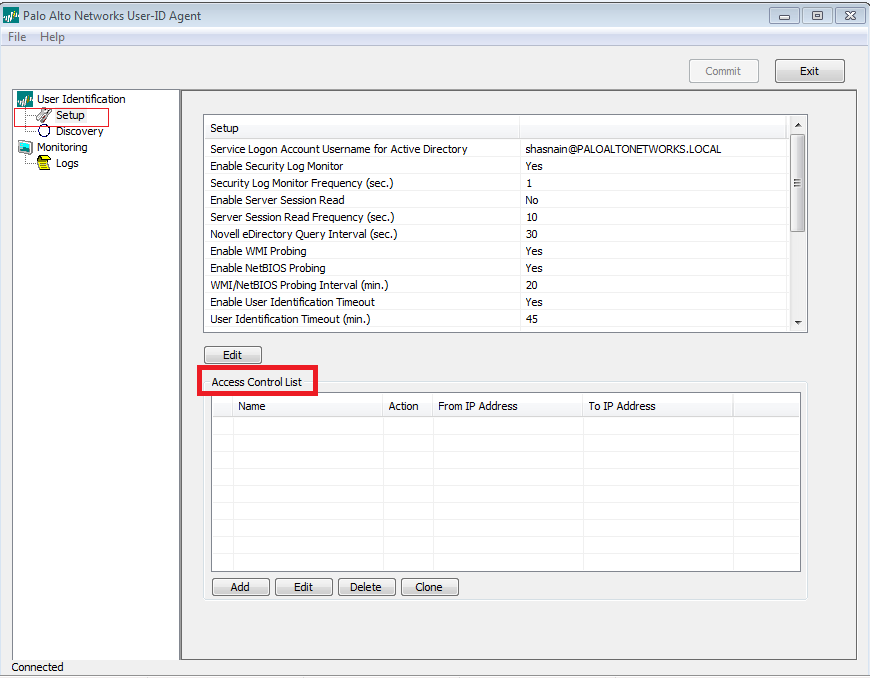

The User-ID Agent Access Control List is located under User Identification > Setup > Access Control list in the Palo Alto Networks User-ID Agent running on the Windows server.



The Access Control List allows configuring Palo Alto Networks firewalls to connect to the User-ID agent. In addition, it allows restricting unauthorized access to the agent from a non Palo Alto Networks device IP address. Access is controlled with allow and/or deny ACLs tied to a source IP address range. The ACLs are processed from top to bottom, just like a security policy on a firewall.




Click "Add" and the following window appears. Following is an example of an entry with IP address range format for a single IP address.




In the following example:

  • The firewall with IP address of 172.0.0.10 can access the User-ID Agent.
  • The firewall with IP address of 172.0.200.10 can access the User-ID Agent.
  • All other private IP addresses (RFC1918) are not allowed to contact the User-ID Agent.
