Tips & Tricks: Scheduled predefined reports

2339
Created On 02/07/19 23:49 PM - Last Updated 02/07/19 23:50 PM
Resolution
PAN-OS has a set of helpful, predefined reports that allow traffic visibility in the network. The reports, scheduled and generated by default, save the administrator from configuring custom reports.

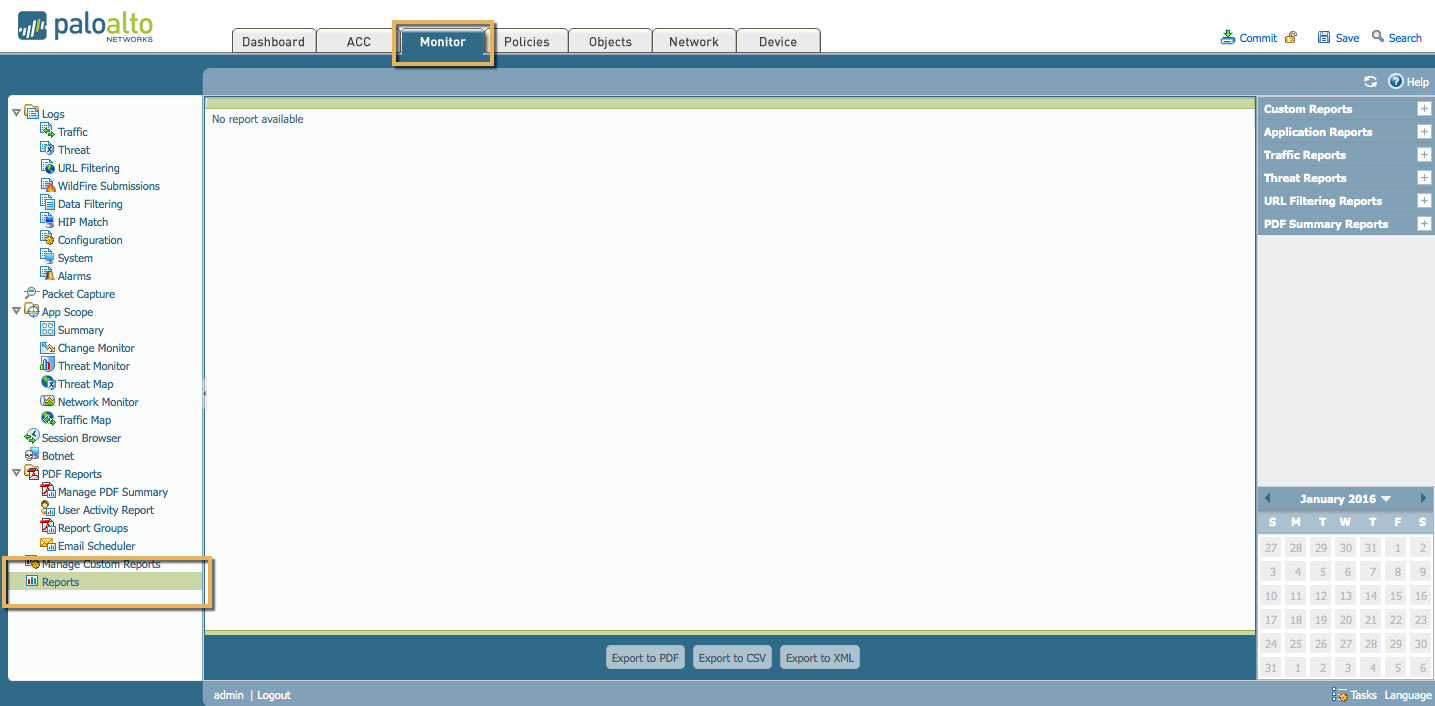

The Palo Alto Networks firewall and Panorama provide various predefined reports of traffic statistics for all previous days. You can find these at Monitor tab > Reports:

Predefined reports

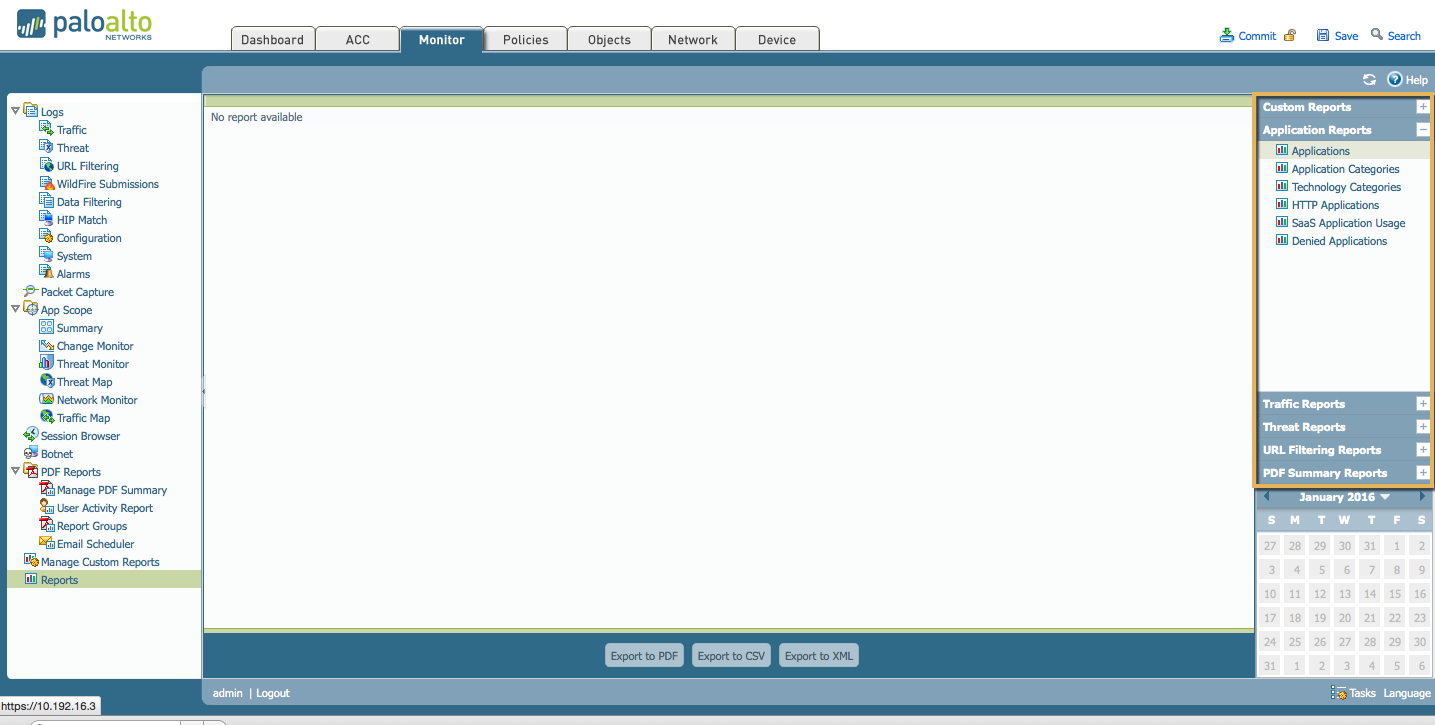

To view the reports, click the report names on the right (Custom Reports, Application Reports, Traffic Reports, Threat Reports, URL Filtering Reports, and PDF Summary Reports). Note that Custom Reports won't be listed if you haven't created any.

Predefined reports

By default, all reports are displayed for the previous calendar day. To view reports for any of the previous days, select a report generation date from the select drop-down list at the bottom-right of the page.

Predefined reports

The reports are listed in sections. You can view the information in each report for the selected time period. To export the log in CSV format, click Export to CSV. To open the log information in PDF format, click Export to PDF.



For scheduled predefined and custom reports, report statistics are aggregated every 15 minutes and are forwarded to Panorama on an hourly basis.



Scheduled local reports (pre-defined and custom) are run at 2:02 a.m.



You can also use the CLI to get your report.  Below is an example that shows how to use the CLI to generate your report:



> show report predefined name equal top-rules
<?xml version="1.0"?>
<report reportname="top-rules" logtype="trsum">
  <result name="Top security rules" logtype="trsum" start="2016/01/04 00:00:00" start-epoch="1451894400" end="2016/01/04 23:59:59" end-epoch="1451980799" generated-at="2016/0
1/05 01:52:49" generated-at-epoch="1451987569" range="Monday, January 04, 2016">
    <entry>
      <serial>007000001728</serial>
      <vsys>vsys1</vsys>
      <rule>Any Allow</rule>
      <bytes>1442722</bytes>
      <sessions>1335</sessions>
    </entry>
  </result>
</report>

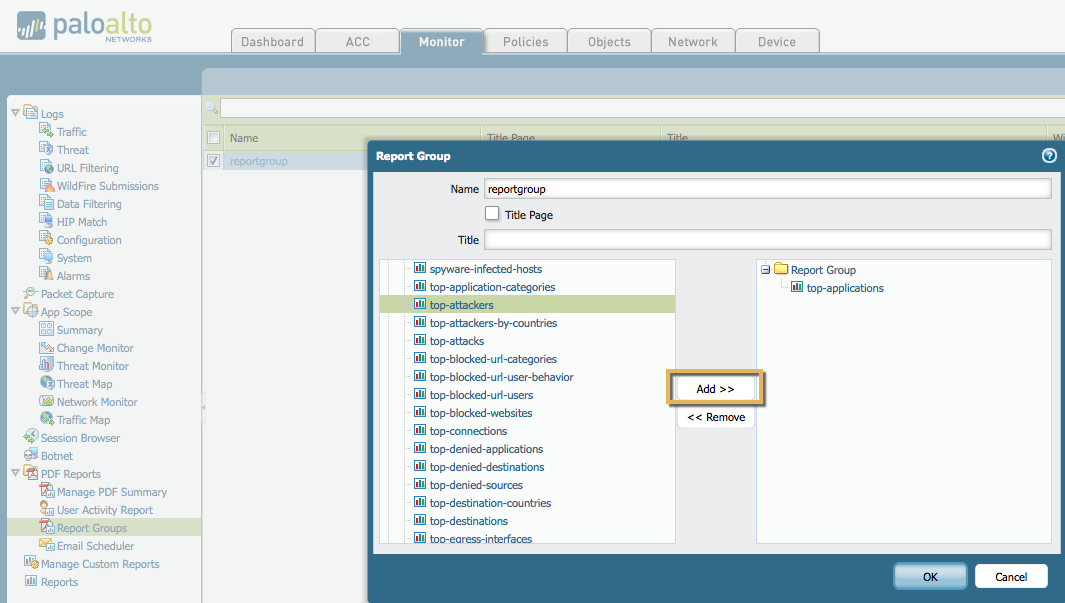

Predefined reports can also be added to report groups just like custom reports under Monitor > PDF Reports > Report Groups. Select the predefined report on the left and click 'Add' as shown below:



Report Group

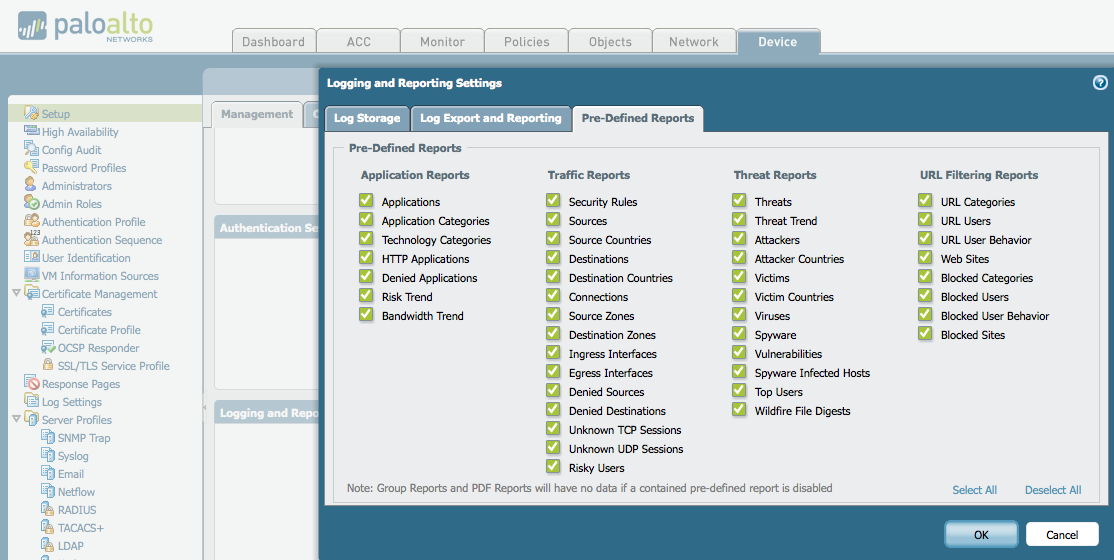

Predefined reports created on the firewall/Panorama can be modified under the Device tab > Setup > Management > Logging and Reporting Settings:



Predefined reports



Sometimes, you might want to disable some of the predefined reports on your devices. Disabling some reports allows you to save on management plane (MP) CPU usage. Alternatively, you might have configured custom reports that contain the same data, so you can now remove the predefined report. Starting from PAN-OS 6.0, all reports (predefined reports, specific reports, or a group of reports) can be disabled.



Alternatively, you can use the CLI to disable specific reports or a set of predefined reports:



> configure
# set deviceconfig setting management disable-predefined-reports <name-of-report>
# commit



To get a full list of available predefined reports, press the tab key in the above CLI command.

Alternatively, you can use the API to get the full list. Using the API, browse to:



https://x.x.x.x/php/rest/browse.php/report::predefined:



"SaaS Application Usage"

predefined-reports SaaS Application Usage

bandwidth-trend

predefined-reports bandwidth-trend

risk-trend

predefined-reports risk-trend

risky-users

predefined-reports risky-users

spyware-infected-hosts

predefined-reports spyware-infected-hosts

threat-trend

predefined-reports threat-trend

top-application-categories

predefined-reports top-application-categories

top-applications

predefined-reports top-applications

top-attackers

predefined-reports top-attackers

top-attackers-by-countries

predefined-reports top-attackers-by-countries

top-attacks

predefined-reports top-attacks

top-blocked-url-categories

predefined-reports top-blocked-url-categories

top-blocked-url-user-behavior

predefined-reports top-blocked-url-user-behavior

top-blocked-url-users

predefined-reports top-blocked-url-users

top-blocked-websites

predefined-reports top-blocked-websites

top-connections

predefined-reports top-connections

top-denied-applications

predefined-reports top-denied-applications

top-denied-destinations

predefined-reports top-denied-destinations

top-denied-sources

predefined-reports top-denied-sources

top-destination-countries

predefined-reports top-destination-countries

top-destinations

predefined-reports top-destinations

top-egress-interfaces

predefined-reports top-egress-interfaces

top-egress-zones

predefined-reports top-egress-zones

top-http-applications

predefined-reports top-http-applications

top-ingress-interfaces

predefined-reports top-ingress-interfaces

top-ingress-zones

predefined-reports top-ingress-zones

top-rules

predefined-reports top-rules

top-source-countries

predefined-reports top-source-countries

top-sources

predefined-reports top-sources

top-spyware-threats

predefined-reports top-spyware-threats

top-technology-categories

predefined-reports top-technology-categories

top-url-categories

predefined-reports top-url-categories

top-url-user-behavior

predefined-reports top-url-user-behavior

top-url-users

predefined-reports top-url-users

top-users

predefined-reports top-users

top-victims

predefined-reports top-victims

top-victims-by-countries

predefined-reports top-victims-by-countries

top-viruses

predefined-reports top-viruses

top-vulnerabilities

predefined-reports top-vulnerabilities

top-websites

predefined-reports top-websites

unknown-tcp-connections

predefined-reports unknown-tcp-connections

unknown-udp-connections

predefined-reports unknown-udp-connections

wildfire-file-digests

predefined-reports wildfire-file-digests





As always, feel free to post feedback or comments below.



Please also 'Like' if this article has helped you in any way.



Thanks for reading,


Kim Wens
