PAN-OS 8.0 Forwarding PA-7000 Logs to Panorama

6542
Created On 07/18/19 19:27 PM - Last Updated 07/18/19 20:12 PM
8.0 PAN-OS
Resolution

This article highlights a new capability or feature introduced in PAN-OS 8.0. If you’d like to learn more about this topic or PAN-OS 8.0 in-general, you’ll also want to check out our world-class Technical Documentation.



Forwarding PA-7000 Logs to Panorama calls for PA-7000 series devices to forward their logs to Panorama in the same way it is done for other Palo Alto Networks devices. This functionality is introduced in PAN-OS 8.0.



Administrators can increase the log retention of their PA-7000 devices by adding storage capacity on Panorama or Log Collectors to meet their retention requirements.



To meet high log forwarding rate requirements of a 7K, the following changes are introduced in 8.0

Sending Side (Firewall):

  • Logs can be forwarded directly without local writes (only on 7K).
  • Pack and compress more logs on a given send block.

Receiving Side (Panorama/Log Collector):

  • Logs from the firewall can be forwarded to ALL the log collectors instead of just the preferred one in the log collector group.
  • On M-100 and M-500, there will be an option to configure the unused 1G and 10G interface respectively for receiving logs.



topo example.png

  • On the PA-7000, Log card interface will be used for log forwarding to Panorama/LC



Changes on the PA-7000 side

  • High-Speed-Log Forwarding Mode (HSFM) is introduced for PA-7000 series firewall
  • By default HSFM is OFF
  • With HSFM, there would be no local logging and reporting and all the logs will be forwarded to Panorama/LC

Note: Summaries, scheduled reports, scheduled log exports, and offline indexing will not be available in this mode.



Configuration: PA-7000

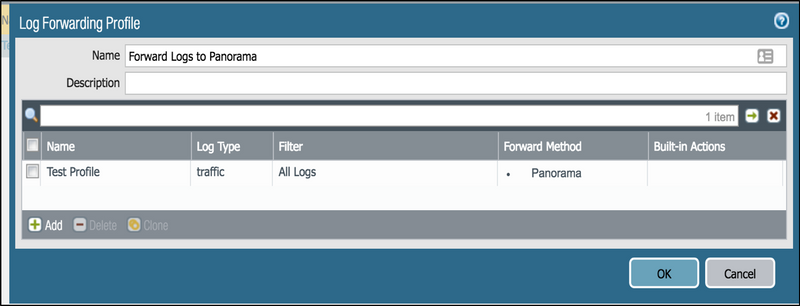

Configure a log forwarding profile and apply it to the security rule.






Enable High-Speed Log Forwarding

  • Not a requirement but recommended in a high log forwarding rate environment

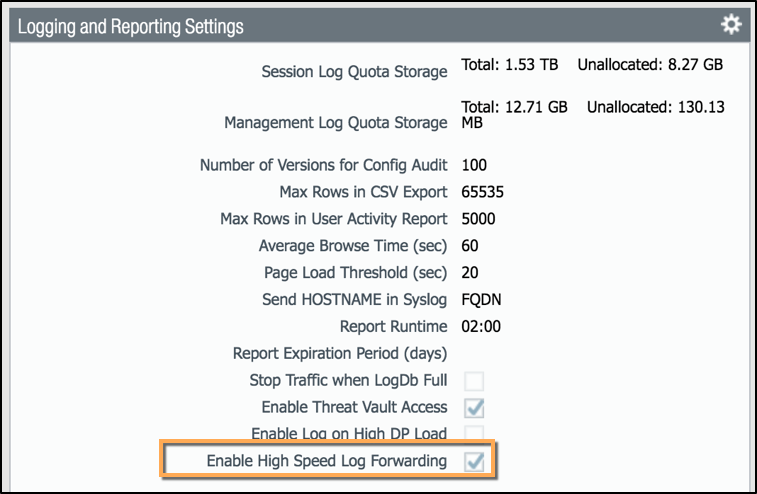

  Device > Setup > Logging and Reporting Settings

high speed log forwarding.png



Configuration: Panorama/Log-Collector

Enable log forwarding to all the log-collectors in the collector group

  • Not a requirement but recommended in a high log forwarding rate environment

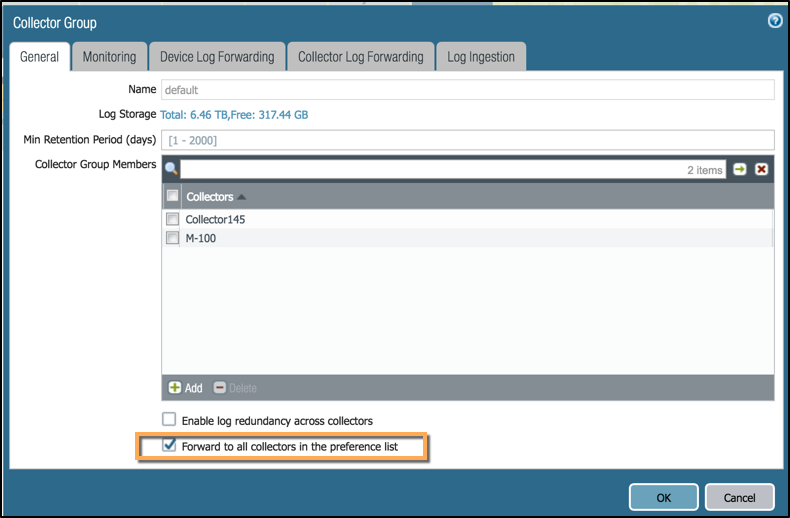

Panorama> Collector Groups

log collector.png



Enable log collection on multiple interfaces of the Panorama/Log-Collector

  • Not a requirement but recommended in a high log forwarding rate environment

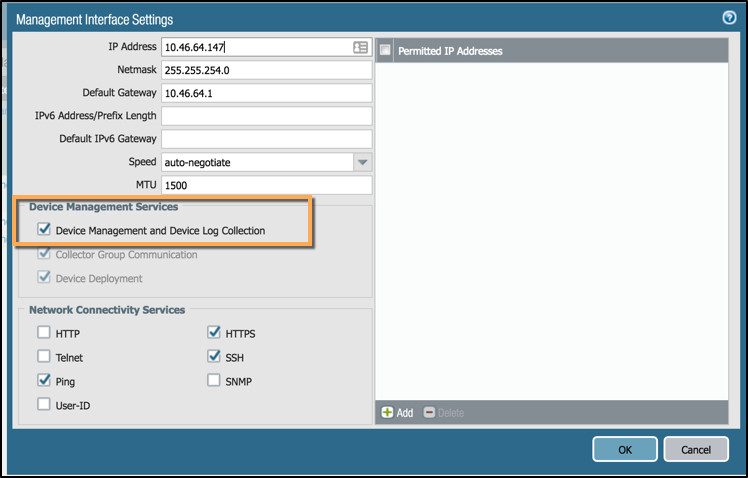

Panorama > Setup > Interfaces > MGMT

panorama management interface.png



Enable log collection on multiple interfaces of the Panorama/Log-Collector

  • Not a requirement but recommended in a high log forwarding rate environment

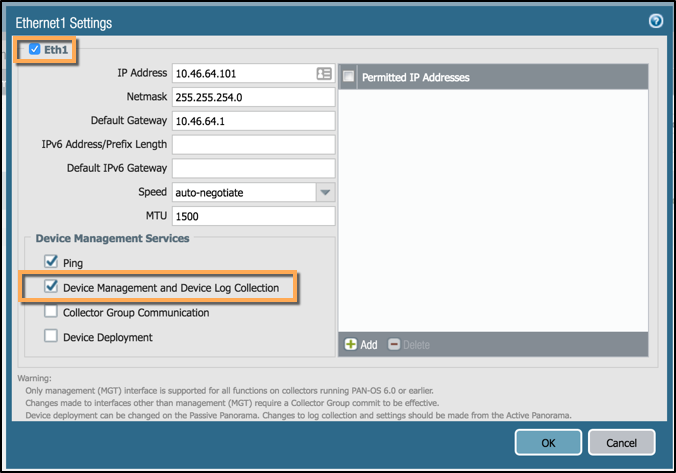

Panorama > Setup > Interfaces > ETH1

Panorama eth1 setting.png



Troubleshooting



Check the log-collector preferences

> show log-collector preference-list

Forward to all: Yes

Log collector Preference List

Serial Number: 009201000001 IP Address: 10.0.0.147 IPV6 Address: unknown
Serial Number: 009201000001 IP Address: 10.0.0.101 IPV6 Address: unknown
Serial Number: 009201000002 IP Address: 10.0.0.145 IPV6 Address: unknown
Serial Number: 009201000002 IP Address: 10.0.0.100 IPV6 Address: unknown



Detailed logging status for each Log-collector connection

> show logging-status

---------------------------------------------------------------------------------------------------
Type  Last Log Created  Last Log Fwded  Last Seq Num Fwded  Last Seq Num Acked  Total Logs Fwded
---------------------------------------------------------------------------------------------------
Log Collector           : 009201000001
Connection IP           : 10.0.0.101
Conn Source IP          : MS - def, LR -  10.0.0.102
High speed mode         :    Disabled
Connection Status       : MS - Active, LR -  Active
Rate                    :  852 logs/sec
traffic   2016/09/27 15:28:23   2016/09/27 15:28:30      6763581 6763581 206159
threat         Not Available         Not Available                        0                   0
....
Log Collector           : 009201000002
Connection IP           : 10.0.0.145
Conn Source IP          : MS - def, LR -  10.0.0.102
High speed mode         :    Disabled
Connection Status       : MS - Active, LR -  Active
Rate                    :  22602 logs/sec
traffic   2016/09/27 15:28:22   2016/09/27 15:28:23 6758365 6758365 219000
threat         Not Available         Not Available                        0                   0
....
