DotW: What is Peer-Split-Brain?
Resolution

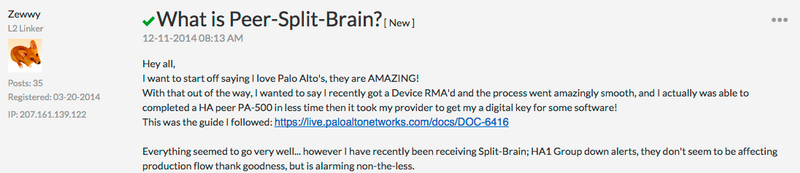

I'm sure a lot of you have encountered this problem. Seeing a particular error message but it's not clear what exactly it means. It's especially confusing when you see a rather concerning message but you are not experiencing any issues. This is exactly what happened to community member @zewwy a while ago. The discussion was reactivated last week because new users were having similar and/or follow-up questions on the topic :
First of all let's explain what 'Split brain' is exactly.
Split brain conditions occur when HA members can no longer communicate with each other to exchange HA monitoring information. Each HA member will assume the other member is in a non-functional state and will take over as the Active (A/P) or Active-Primary (A/A).
Split brain conditions can be prevented by configuring an HA1 Backup link and/or enabling Heartbeat Backup.
User @mivaldi gave a great explanation and added that the reason for a HA1 link failure is not limited to physical problems.
It can also happen if the ha_agent process is busy and can't process HA1 functions. In that case, it's useful to have the backup be Heartbeat Backup through the MGMT port, since the Heartbeat function sends out ICMP probes and these are processed by the system kernel, and not the ha_agent process.

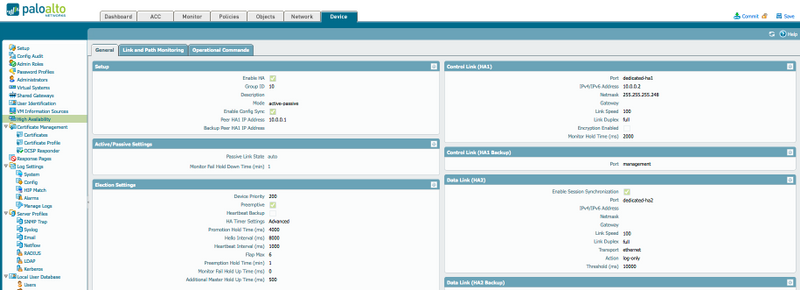

The recommended configuration for the HA control link connection is to use the dedicated HA1 link between the two devices and use the management port as the Control Link (HA Backup) interface. In this scenario, you do not need to enable the Heartbeat Backup option in the Elections Settings page. If you are using a physical HA1 port for the Control Link HA link and a data port for Control Link (HA Backup), it is recommended to enable the Heartbeat Backup option in the Election Settings Page. An example of the first scenario can be seen in the screenshot below:
The discussion was reactivated by user @TranceforLife: What happens if HA1 communication is restored ?
Our very own @jdelio answered:

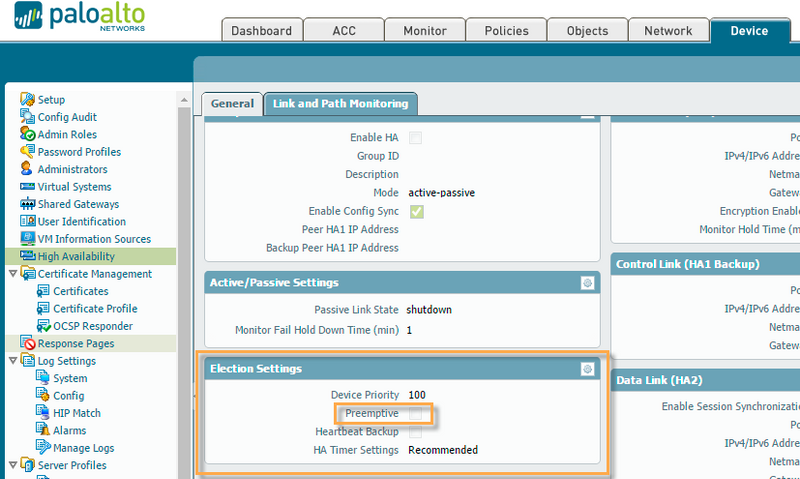

If you want to control which member becomes active first, you have to configure the Preemtive settings in Device > High Availability > General > Election Settings
We already have a great set of documents explaining everything you'll need to know on HA and how to configure it. Make sure to check these out if you have further questions.
How to configure Active - Passive HA
How to configure Active - Active HA
You can follow the complete discussion here :
https://live.paloaltonetworks.com/t5/General-Topics/What-is-Peer-Split-Brain/m-p/19825#U19825
