How to Configure L3 Untagged Subinterfaces to Communicate within Different Zones

How to Configure L3 Untagged Subinterfaces to Communicate within Different Zones

28547
Created On 09/25/18 17:59 PM - Last Modified 02/07/19 23:53 PM


Resolution

Overview

This document provides steps on how to configure Layer 3 untagged subinterfaces.



Steps

  1. Go to Network > Interfaces.
  2. Select a physical interface.

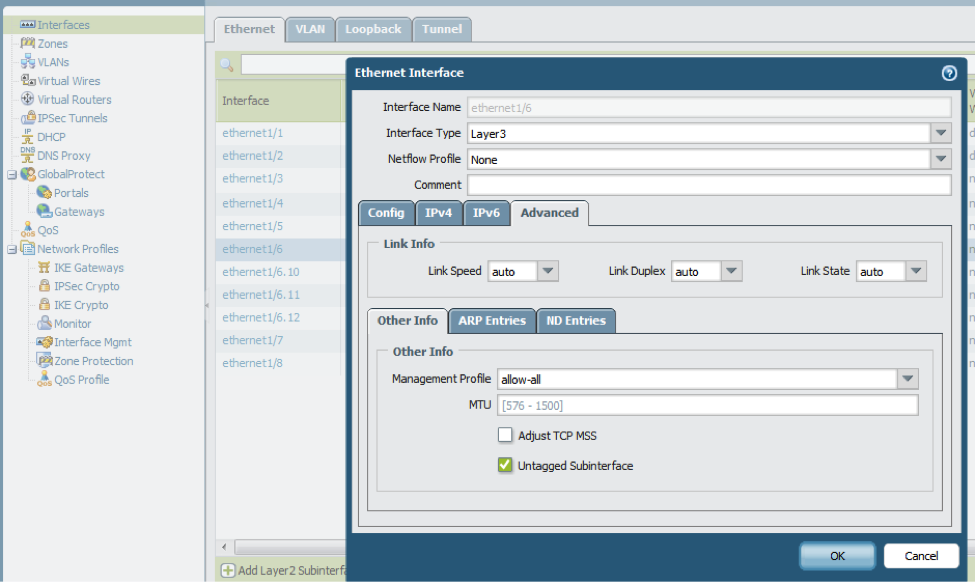

  3. Enable Untagged Subinterface.

    The untagged L3 subinterfaces are designed to work without ip-address on the physical device.


  4. Create Untagged subinterfaces and assign them a different virtual router and zone.

    The following screenshot shows three L3 subinterfaces configured eth1/6.10, eth1/6.11, and eth1/6.12:


    • Subinterface Interface: Ethernet 1/6.10 is assigned a zone L3-Trust
    • Subinterface Interface: Ethernet 1/6.11 is assigned a zone L3-DMZ
    • Subinterface Interface: Ethernet 1/6.12 is assigned a zone L3-Trust
  5. Go to Policies > Security to view Security policies for communicating from L3-Trust to L3-DMZ.

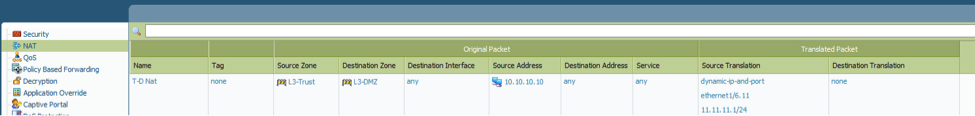

  6. All outgoing traffic from each tenant is source NAT'ed to the subinterface IP address.  Go to Policies > NAT to view the NAT policy for the host 10.10.10.10 behind the subinterface Ethernet 1/6.10 to communicate to host 11.11.11.11 behind subinterface Ethernet 1/6.11.


  7. Go to Policies > Security to view the Security policies applied for communicating from L3-DMZ to L3-Trust.


  8. Go to Policies > NAT to view the NAT policy for the host 11.11.11.11 behind the subinterface Ehternet 1/6.11 to communicate to host 10.10.10.10 behind subinterface Ethernet 1/6.10.


With the above configuration, the host 10.10.10.10 (behind subinterface Ethernet 1/6.10) can ping host 11.11.11.11 (behind Etherent 1/6.11) and the other way around.
