How to Redistribute a Loopback Address via iBGP without a Static Route

How to Redistribute a Loopback Address via iBGP without a Static Route

27104
Created On 09/25/18 17:58 PM - Last Modified 06/13/23 16:49 PM


Resolution


To Redistribute a loopback address with BGP:

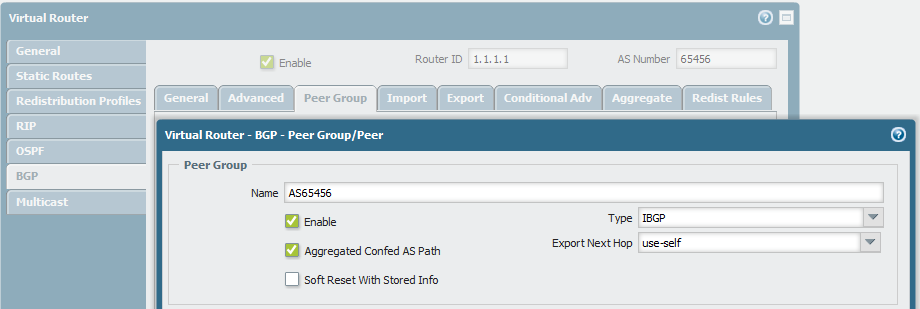

  1. Configure the BGP next hop Export to be use-self. Under Virtual Router > BGP > Peer Group > select the Export Next Hop to be use-self and Type to be 'IBGP'.

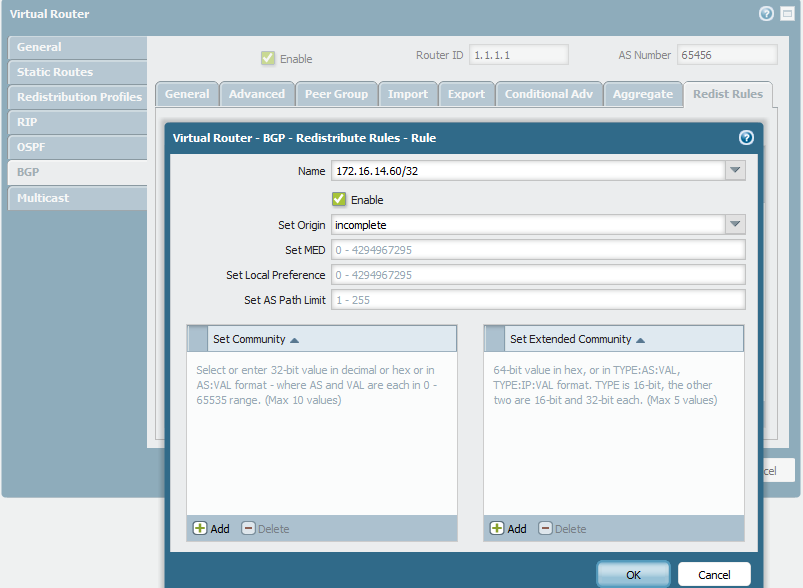

  2. Configure the loopback IP address in the Redistribution Profile. Under Virtual Router > BGP > Redistribution Rules, type in the loopback address and set the origin to be 'Incomplete'.

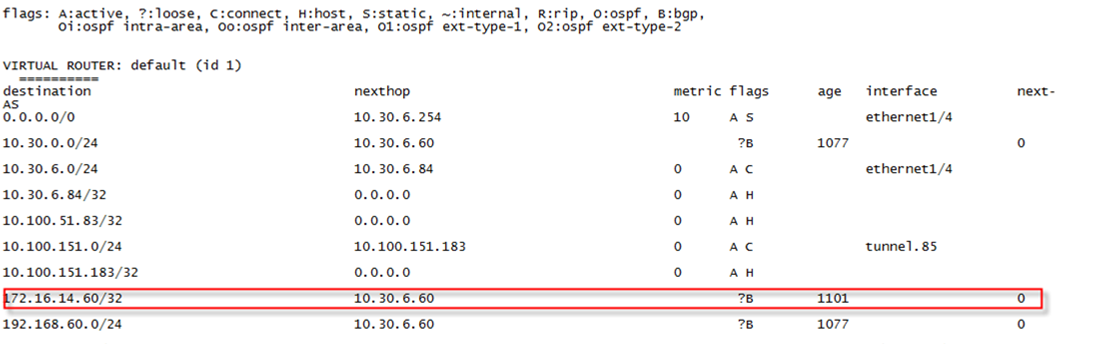

Routing table example:

owner: kadak
