How to Advertise a Default Route via OSPF Not-So-Stubby-Area (NSSA)

How to Advertise a Default Route via OSPF Not-So-Stubby-Area (NSSA)

31175
Created On 09/25/18 17:58 PM - Last Modified 02/01/25 00:28 AM


Procedure


To advertise a default route via an OSPF NSSA:

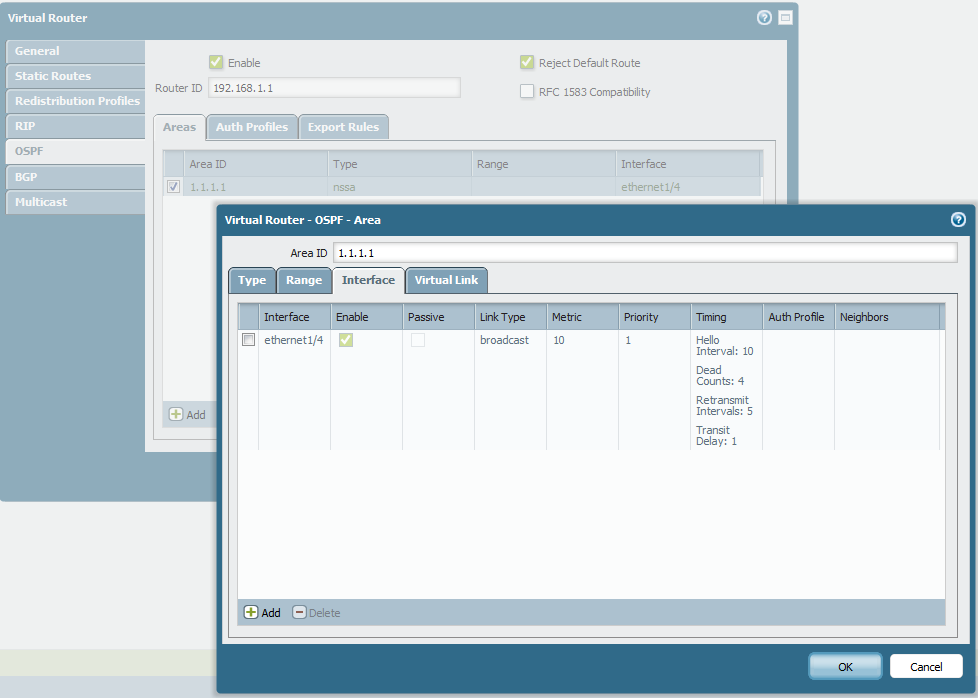

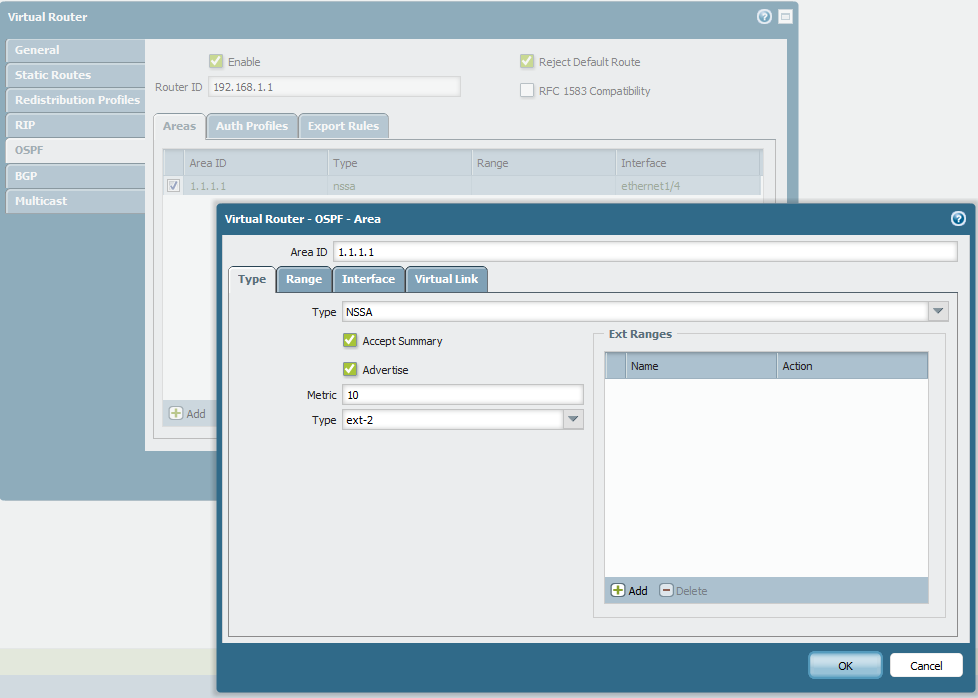

  1. Configure the area to be NSSA and the interface which belongs to the NSSA. Under Virtual Router > OSPF > Areas

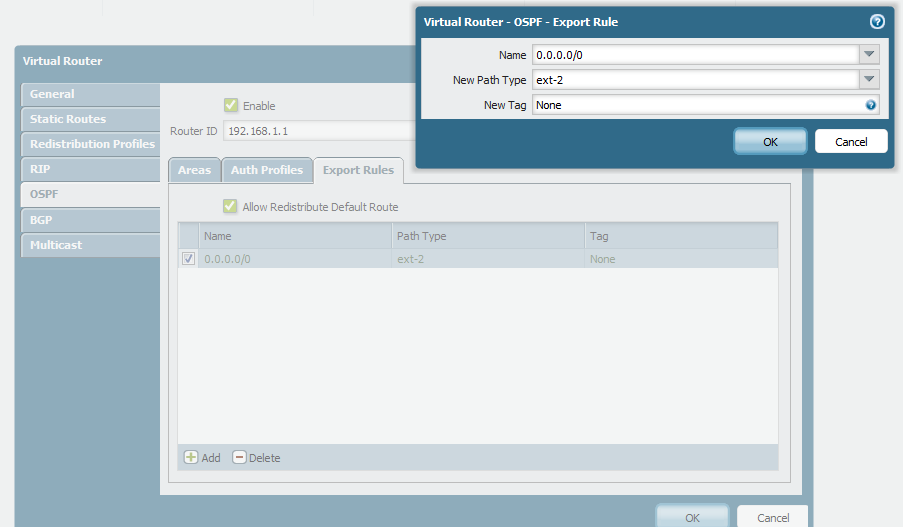

  2. Configure the export rules under Virtual Router > OSPF > Export rules

  3. Check Allow Redistribute Default Route (above screenshot)



owner: kadak
