How to Configure 802.1q VLAN tag on 802.3ad/Aggregate Group

Overview

This document describes how to configure an 802.1q VLAN tag on 802.3ad/Aggregate Group.

Steps

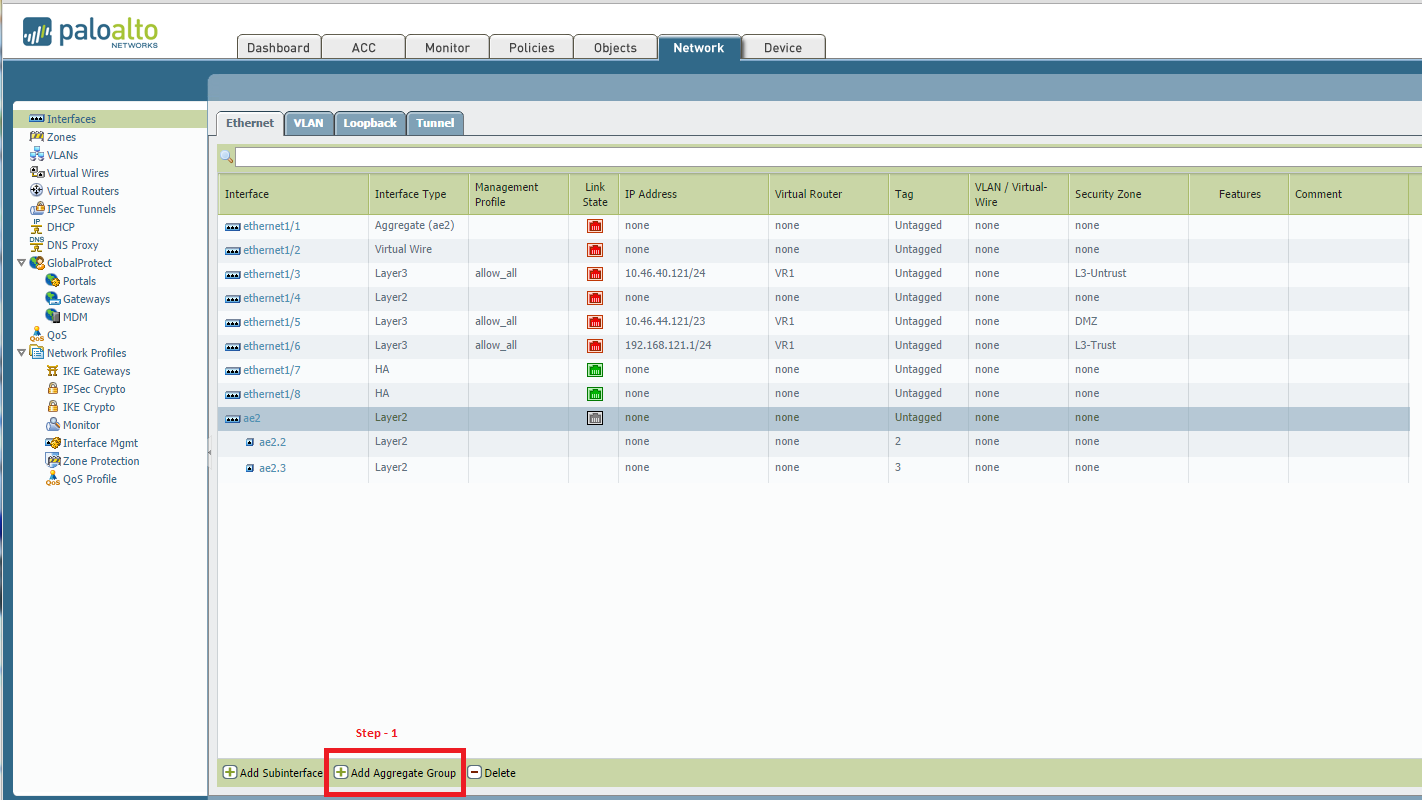

1. Create an aggregate group. Go to Network > Interface and click on Add Aggregate Group.
   • Web UI:

   • CLI:
     # set network interface aggregate-ethernet
     <value>  Aggregate interface name: ae1 - ae4

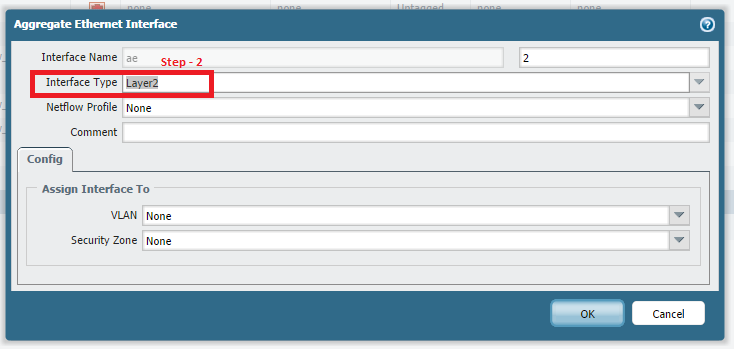

2. Set the aggregate ethernet interface type as layer2 or layer3:
   • Web UI:

   • CLI:
     # set network interface aggregate-ethernet ae1
     + comment        comment
     > layer2         Layer2 interface
     > layer3         Layer3 interface

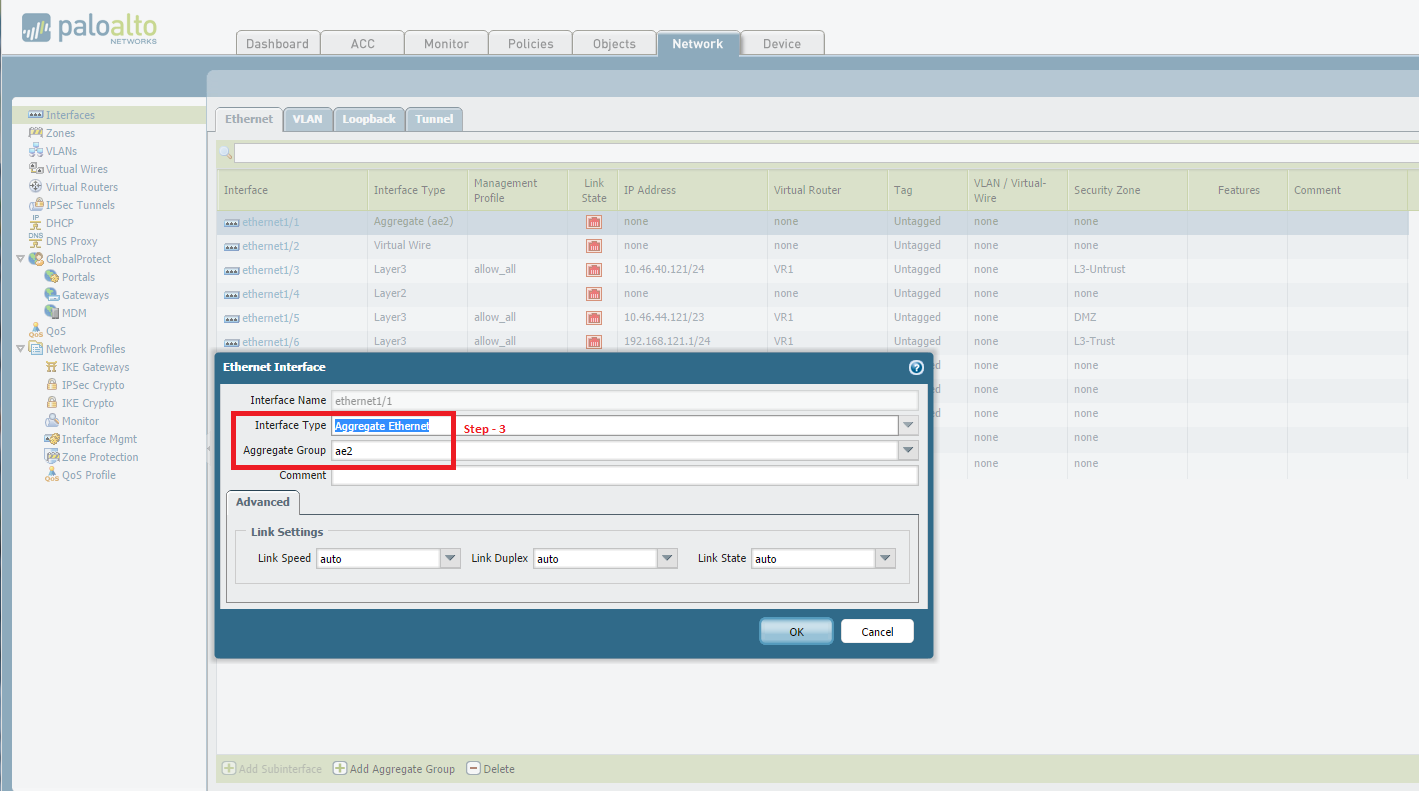

3. Assign Ethernet interfaces to the aggregate ethernet interface. Select the desire Ethernet interface, and then select "Aggregate Ethernet" as "Interface Type."  Go to Network > Interfaces > Ethernet.
   • Web UI:

   • CLI:
     # set network interface ethernet ethernet1/1 aggregate-group
       ae1      aggregate-ethernet ae1

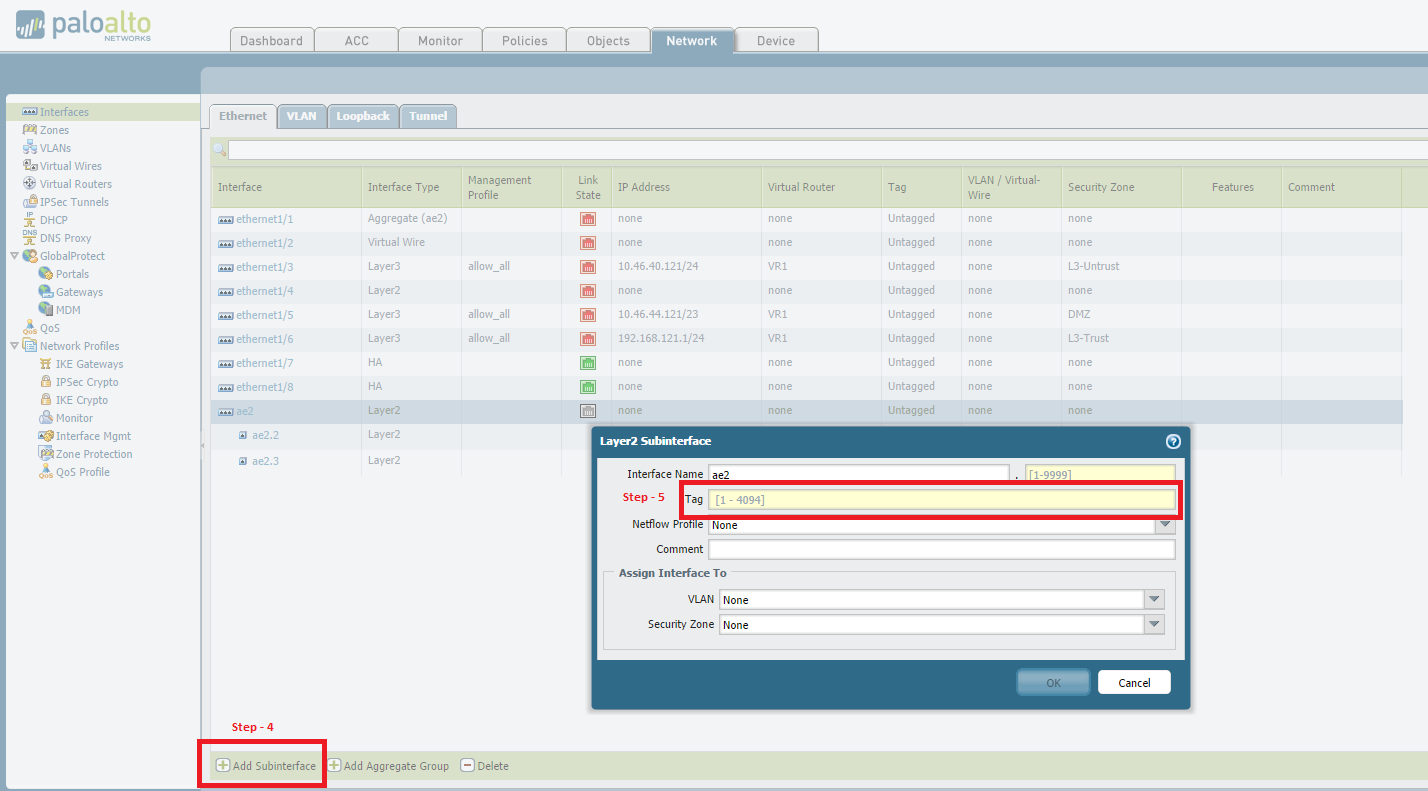

4. Add a subinterface on to the aggregate ethernet interface
   • Web UI:
     Go to Network > Interfaces > Ethernet and click Add Subinterface.
   • CLI:
     # set network interface aggregate-ethernet ae1 layer2 units
       ae1.     ae1.
       <value>  name value
5. Assign 802.1q VLAN tag
   • Web UI:

   • CLI
     # set network interface aggregate-ethernet ae1 layer2 units ae1.1 tag
     <value>  <1-4094> 802.1q VLAN tag
