How to Configure a Custom Logo for the PAN-OS UI

How to Configure a Custom Logo for the PAN-OS UI

47238
Created On 09/25/18 17:27 PM - Last Modified 11/17/23 02:07 AM


Resolution


Overview

A custom logo can be uploaded and applied for the following four areas:

  • Login Screen
  • Main UI
  • PDF Report Title Page
  • PDF Reporter Footer

For example, the Main UI logo appears at the top left-hand corner of the screen after logging into the UI of the Palo Alto Networks device:




Steps

  1. Go to Device > Setup > Operations

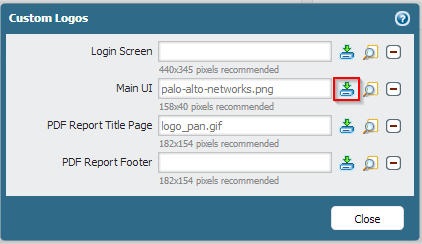

  2. In the Miscellaneous section, click Custom Logos
  3. Click on the upload icon for the custom logo (ex. Main UI) to insert an image file to the Palo Alto Networks firewall.
    Note: The recommended image dimensions are provided for each custom logo. Images of different dimensions may be resized or cropped.
  4. Commit the changes


Note: The GIF pictures are no longer supported starting PAN-OS 10.1. PNG and JPEG files are supported.
