How to Configure a Policy to Use a Range of Ports

5018
Created On 09/25/18 17:18 PM - Last Updated 09/25/18 23:00 PM
Policy
Resolution

Overview

This document describes how to create a service to define specific ports and use the service in a security policy.

Steps

  1. Configure the service ports

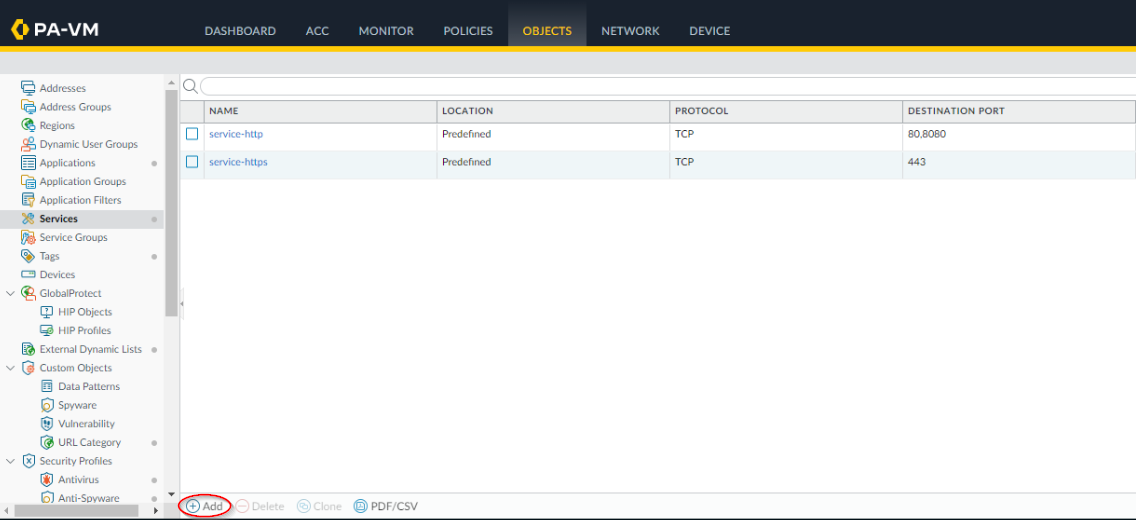

    1. Navigate to Objects > Services
    2. Click on Add to bring up the Service dialog

      Screen Shot 2013-01-24 at 5.40.56 PM.png

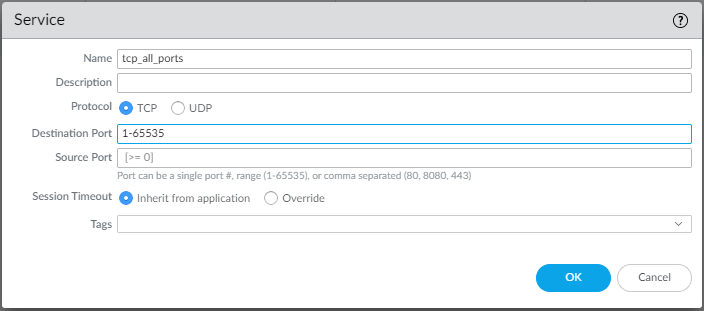

    3. Configure the new service with values for Name, Protocol and Destination Port range


  2. Create a policy and add the services to the policy

    1. Navigates to Policies > Security
    2. Click Add to bring up the Security Policy Rule dialog

      Screen Shot 2013-01-24 at 6.41.05 PM.png

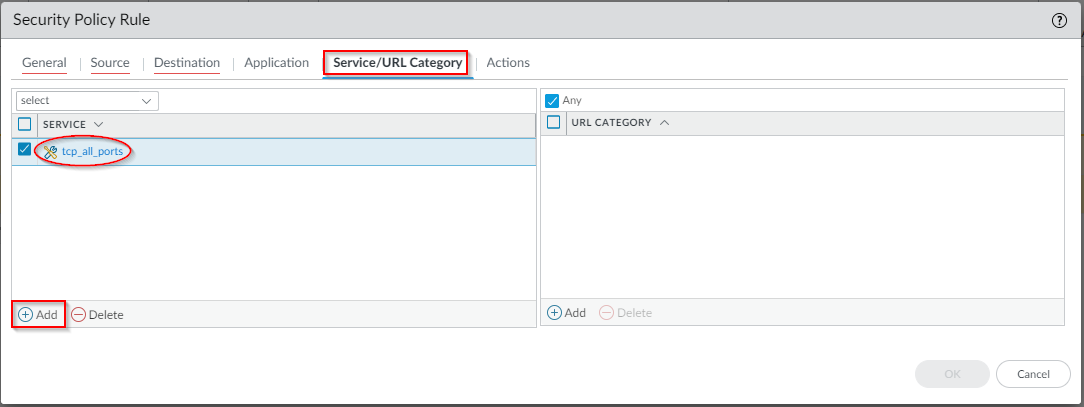

    3. Under the Service/URL Category tab, add the service ports configured earlier by clicking Add and typing in the name.

      Screen Shot 2013-01-24 at 5.46.38 PM.png

  3. Commit the changes and test. The traffic logs should show the traffic hitting the policy based on its position in the security policy list.
