Unable to view Prisma access GlobalProtect_Portal and GlobalProtect_Gateway configuration under Mobile_User_Template

Unable to view Prisma access GlobalProtect_Portal and GlobalProtect_Gateway configuration under Mobile_User_Template

4199
Created On 05/22/20 21:07 PM - Last Modified 05/23/20 03:29 AM


Symptom

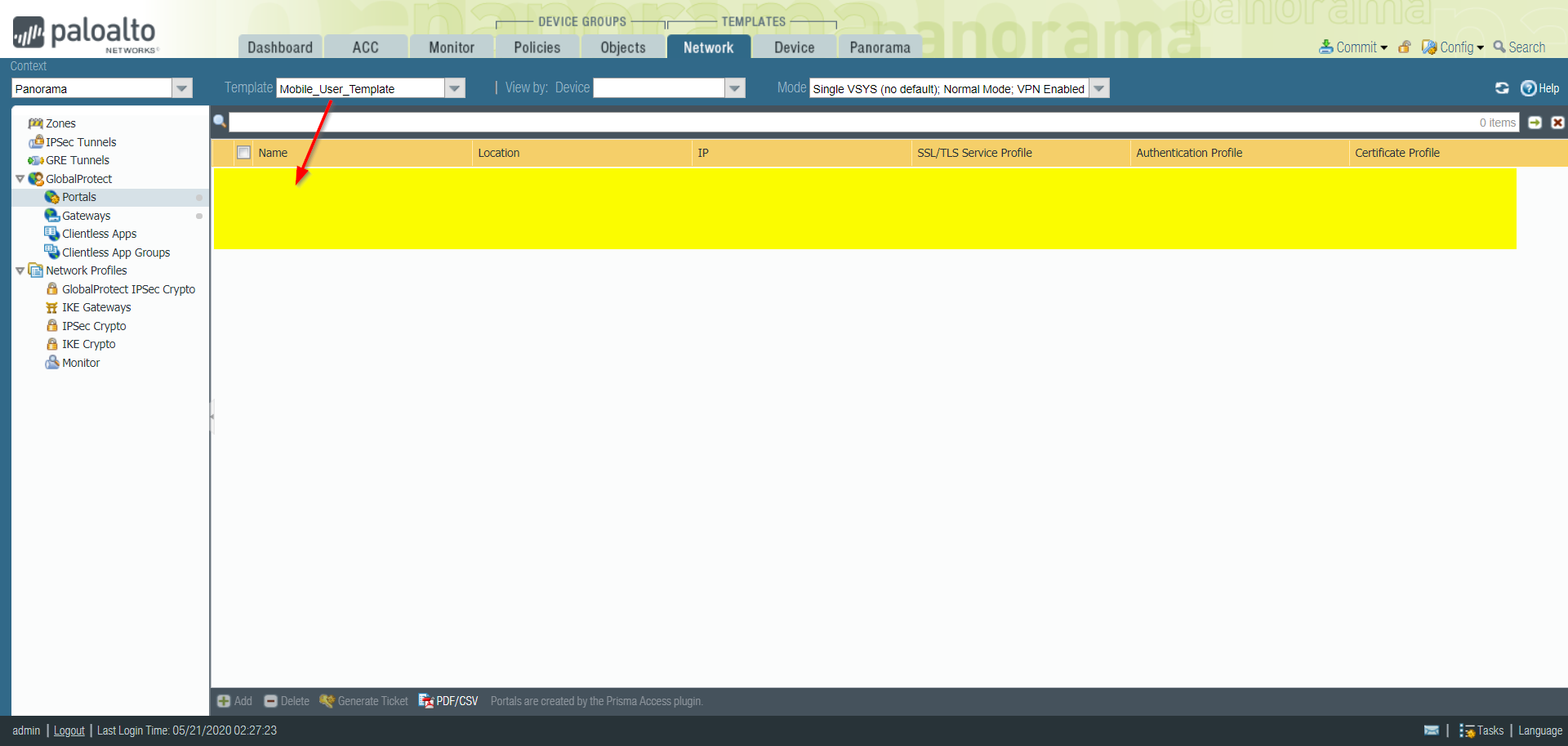

  • Prisma Access configurations such as GlobalProtect_Portal and GlobalProtect_Gateway_External that are generated automatically as part of Mobile User Onboarding are missing under GUI: Network > GlobalProtect > Portals for Mobile_User_Template.
  • These configurations are present under Mobile_User_Template_Stack
User-added image



Environment


Prisma Access(Panorama Managed)

Cause

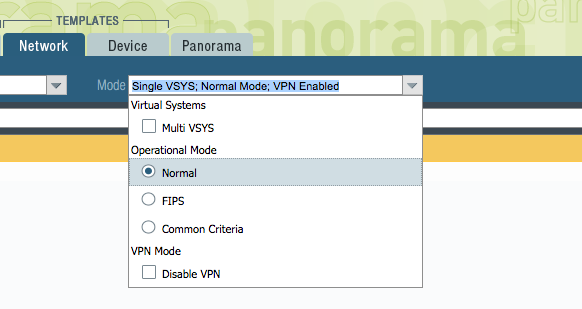

The behavior is seen if Multi VSYS Mode is disabled under Network/Device Tabs, see below:

User-added image

Resolution

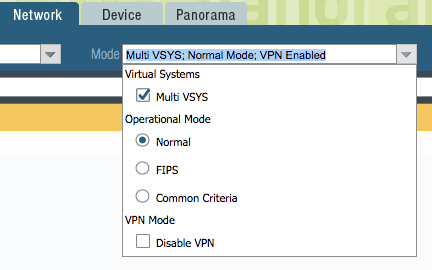

To resolve the issue, enable Multi VSYS checkbox and the missing configuration items can be seen under Mobile_User_Template.

User-added image
